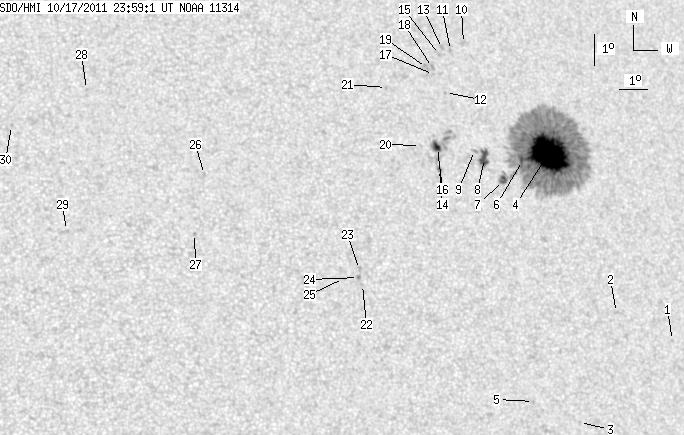

SDO HMI 2011-10-17 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.82 | 610.18 | 66.64 | 370.45 | 27.39 | 55.41 | 29.08 | 311.50 | 0.5780 | -849.7 | -343.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.58 | 21.33 | 59.18 | 32.85 | 299.36 | 0.5819 | -681.0 | -523.5 | |
| 0.00 | 1.48 | 0.00 | 0.89 | 22.30 | 57.29 | 30.96 | 302.12 | 0.5642 | -619.0 | -414.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 18.98 | 55.20 | 28.88 | 297.86 | 0.5186 | -519.0 | -462.4 | |
| 87.23 | 528.78 | 53.20 | 322.50 | 27.42 | 56.09 | 29.76 | 310.91 | 0.5852 | -1228.7 | -360.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 19.69 | 53.69 | 27.36 | 300.25 | 0.5029 | -800.0 | -668.8 | |
| 2.09 | -4.00 | 1.26 | -4.00 | 27.24 | 55.03 | 28.70 | 311.52 | 0.5726 | -1139.1 | 999999 | |
| 4.45 | -4.00 | 2.65 | -4.00 | 26.63 | 54.14 | 27.82 | 311.39 | 0.5582 | -959.8 | 999999 | |
| 9.94 | 12.47 | 5.93 | 7.43 | 27.37 | 53.62 | 27.29 | 312.96 | 0.5585 | -968.6 | -729.4 | |
| 0.00 | 2.01 | 0.00 | 1.19 | 27.64 | 53.31 | 26.99 | 313.64 | 0.5576 | -602.0 | -511.0 | |
| 0.00 | 2.27 | 0.00 | 1.39 | 31.13 | 53.91 | 27.58 | 317.94 | 0.5938 | -526.0 | -442.2 | |
| 0.00 | 1.74 | 0.00 | 1.06 | 30.92 | 53.33 | 27.00 | 318.19 | 0.5865 | -816.0 | -671.0 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 29.56 | 52.73 | 26.41 | 316.91 | 0.5685 | -632.0 | -508.2 | |
| 0.00 | 1.83 | 0.00 | 1.12 | 31.00 | 53.04 | 26.71 | 318.56 | 0.5845 | -630.0 | -497.5 | |
| 1.40 | 12.39 | 0.82 | 7.27 | 27.08 | 51.86 | 25.53 | 314.22 | 0.5375 | 387.4 | -131.5 | |
| 0.00 | 1.74 | 0.00 | 1.06 | 30.81 | 52.87 | 26.54 | 318.48 | 0.5811 | -728.0 | -536.4 | |
| 4.71 | 22.68 | 2.78 | 13.42 | 27.79 | 51.96 | 25.63 | 315.16 | 0.5449 | 561.3 | -266.8 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 30.16 | 52.44 | 26.12 | 318.02 | 0.5712 | -681.0 | -533.2 | |
| 0.00 | 2.27 | 0.00 | 1.37 | 30.39 | 52.47 | 26.15 | 318.30 | 0.5736 | -931.0 | -730.0 | |
| 0.00 | 2.27 | 0.00 | 1.37 | 30.40 | 52.24 | 25.92 | 318.53 | 0.5715 | -713.0 | -655.2 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 27.88 | 51.34 | 25.02 | 315.91 | 0.5394 | -435.0 | -448.4 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 29.81 | 50.56 | 24.23 | 319.45 | 0.5498 | -704.0 | -654.7 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 23.55 | 48.33 | 22.01 | 312.37 | 0.4669 | 783.0 | 594.1 | |
| 0.00 | 1.92 | 0.00 | 1.08 | 24.03 | 48.31 | 21.99 | 313.21 | 0.4710 | 673.0 | 569.2 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 23.78 | 48.23 | 21.91 | 312.88 | 0.4678 | 818.0 | 630.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 23.77 | 47.70 | 21.38 | 313.49 | 0.4617 | 625.0 | 480.8 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 27.21 | 43.40 | 17.07 | 324.84 | 0.4553 | 801.0 | 538.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 25.34 | 42.77 | 16.45 | 323.03 | 0.4273 | 735.0 | 594.3 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 30.07 | 39.66 | 13.33 | 334.31 | 0.4624 | 596.0 | 438.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 25.54 | 38.43 | 12.10 | 331.01 | 0.3920 | 684.0 | 559.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 28.94 | 36.89 | 10.57 | 337.95 | 0.4293 | 496.0 | 432.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
