SDO HMI 2011-10-17 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.97 | 32.97 | 6.32 | 28.91 | 23.94 | 331.65 | -54.68 | 64.77 | 0.8254 | -213.7 | -281.0 | |
|
previous
or next observation for the same group /

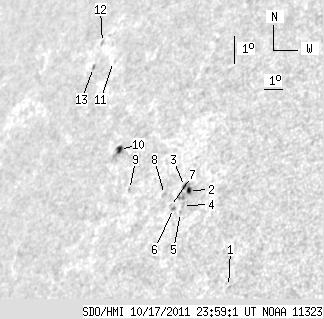

back to the solar disc SDO HMI 2011-10-17 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.67 | 20.63 | 337.38 | -48.94 | 67.68 | 0.7651 | -645.0 | -506.8 | |
| 2.09 | 11.95 | 1.74 | 9.95 | 23.42 | 333.96 | -52.37 | 64.94 | 0.8045 | -747.6 | -510.8 | |
| 0.61 | -2.00 | 0.51 | -2.00 | 23.52 | 333.68 | -52.64 | 64.86 | 0.8073 | -449.1 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.16 | 22.93 | 333.91 | -52.42 | 65.54 | 0.8041 | -609.0 | -501.2 | |
| 0.00 | 1.31 | 0.00 | 1.08 | 22.71 | 333.92 | -52.41 | 65.81 | 0.8035 | -455.0 | -464.3 | |
| 0.00 | 1.57 | 0.00 | 1.31 | 22.81 | 333.49 | -52.83 | 65.78 | 0.8077 | -600.0 | -411.1 | |
| 0.00 | 0.96 | 0.00 | 0.81 | 22.86 | 333.30 | -53.02 | 65.76 | 0.8096 | -262.0 | -232.4 | |
| 0.00 | 2.18 | 0.00 | 1.86 | 23.20 | 332.78 | -53.55 | 65.44 | 0.8150 | -170.0 | -196.6 | |
| 0.00 | 1.22 | 0.00 | 1.09 | 23.20 | 330.80 | -55.52 | 65.80 | 0.8328 | 289.0 | 354.3 | |
| 3.05 | 8.20 | 2.82 | 7.58 | 24.38 | 329.43 | -56.89 | 64.66 | 0.8463 | -258.7 | -187.8 | |
| 0.00 | 0.35 | 0.00 | 0.35 | 27.04 | 326.98 | -59.35 | 62.00 | 0.8698 | 439.0 | 420.0 | |
| 0.00 | 1.48 | 0.00 | 1.53 | 27.57 | 325.76 | -60.57 | 61.61 | 0.8796 | 377.0 | 238.4 | |
| 1.22 | 1.48 | 1.25 | 1.52 | 26.76 | 325.88 | -60.44 | 62.50 | 0.8776 | 496.7 | 370.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
