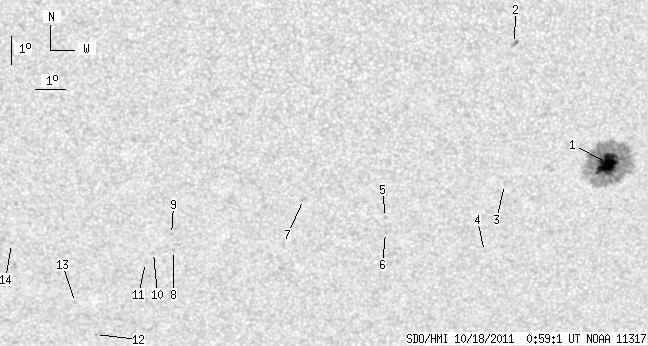

SDO HMI 2011-10-18 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.91 | 179.09 | 15.53 | 107.36 | -26.83 | 36.29 | 10.51 | 196.94 | 0.5648 | 581.3 | 334.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.91 | 163.31 | 15.53 | 97.87 | -26.70 | 37.22 | 11.44 | 198.36 | 0.5647 | 1159.1 | 373.7 | |
| 0.00 | 3.05 | 0.00 | 1.73 | -22.48 | 33.78 | 8.01 | 195.27 | 0.4905 | 869.0 | 739.2 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -27.38 | 33.77 | 7.99 | 192.77 | 0.5608 | 617.0 | 556.8 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -29.80 | 33.26 | 7.49 | 191.03 | 0.5930 | 720.0 | 572.1 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -28.53 | 29.79 | 4.01 | 186.24 | 0.5676 | 630.0 | 468.4 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -29.07 | 29.81 | 4.03 | 186.15 | 0.5754 | 715.0 | 582.8 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -27.86 | 26.99 | 1.21 | 181.93 | 0.5551 | -633.0 | -481.6 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -29.72 | 22.53 | -3.24 | 175.15 | 0.5836 | -746.0 | -582.9 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -29.14 | 22.48 | -3.29 | 174.98 | 0.5754 | -775.0 | -645.3 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -29.80 | 21.84 | -3.94 | 174.14 | 0.5856 | -487.0 | -457.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -30.17 | 21.55 | -4.23 | 173.79 | 0.5913 | -391.0 | -379.5 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -32.90 | 19.64 | -6.14 | 171.80 | 0.6320 | -577.0 | -519.8 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -31.69 | 19.01 | -6.77 | 170.61 | 0.6170 | -553.0 | -421.5 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -29.53 | 16.94 | -8.83 | 166.93 | 0.5932 | -806.0 | -617.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
