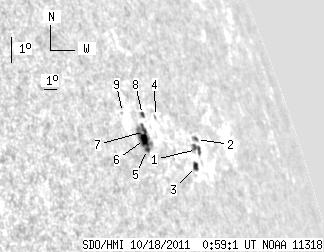

SDO HMI 2011-10-18 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.05 | 38.48 | 19.06 | 52.67 | 20.04 | 95.22 | 69.44 | 289.33 | 0.9332 | 168.2 | 73.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.46 | 0.00 | 9.90 | 19.60 | 97.76 | 71.98 | 288.79 | 0.9477 | -570.0 | -385.3 | |
| 1.22 | 2.88 | 1.90 | 4.47 | 19.88 | 98.08 | 72.30 | 289.09 | 0.9494 | -235.1 | -218.2 | |
| 3.32 | 4.10 | 4.94 | 6.11 | 19.12 | 97.14 | 71.36 | 288.29 | 0.9444 | -377.2 | -414.8 | |
| 0.00 | 0.96 | 0.00 | 1.31 | 20.88 | 95.12 | 69.35 | 290.22 | 0.9333 | 123.0 | 45.3 | |
| 1.83 | 21.11 | 2.34 | 27.05 | 19.98 | 93.55 | 67.77 | 289.31 | 0.9235 | 420.9 | 396.3 | |
| 5.85 | -5.00 | 7.49 | -5.00 | 20.29 | 93.58 | 67.80 | 289.64 | 0.9237 | 539.7 | 999999 | |
| 0.35 | -5.00 | 0.45 | -5.00 | 20.53 | 93.80 | 68.02 | 289.89 | 0.9252 | 400.5 | 999999 | |
| 1.48 | 2.27 | 1.94 | 2.97 | 21.04 | 94.11 | 68.34 | 290.43 | 0.9273 | 261.1 | 205.3 | |
| 0.00 | 0.70 | 0.00 | 0.86 | 21.24 | 92.60 | 66.82 | 290.72 | 0.9178 | 522.0 | 468.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
