SDO HMI 2011-10-18 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.94 | 612.13 | 61.90 | 374.48 | 27.37 | 55.05 | 29.83 | 311.09 | 0.5862 | -642.7 | -301.8 | |
|
previous
or next observation for the same group /

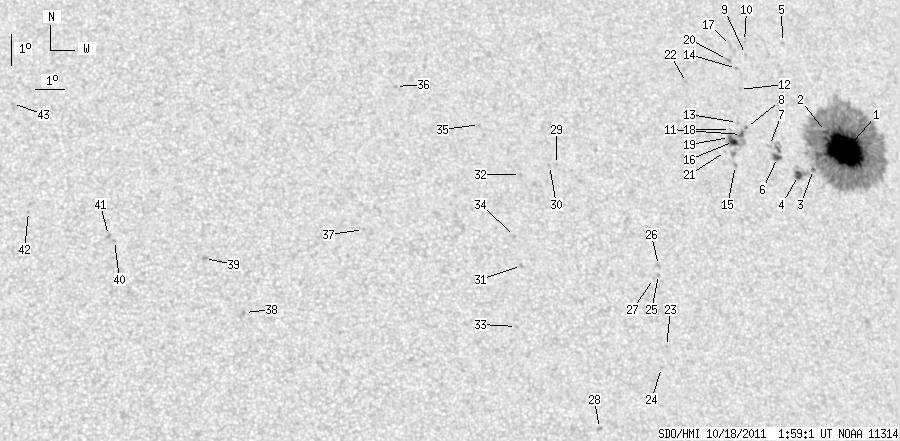

back to the solar disc SDO HMI 2011-10-18 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.49 | 516.17 | 50.20 | 318.31 | 27.40 | 56.07 | 30.85 | 310.03 | 0.5968 | -1268.5 | -342.1 | |
| 1.57 | -1.00 | 0.97 | -1.00 | 28.04 | 55.49 | 30.26 | 311.41 | 0.5953 | -863.5 | 999999 | |
| 1.48 | -1.00 | 0.90 | -1.00 | 26.85 | 54.66 | 29.44 | 310.34 | 0.5775 | -852.5 | 999999 | |
| 4.62 | 13.35 | 2.78 | 8.04 | 26.68 | 54.04 | 28.82 | 310.62 | 0.5695 | -980.8 | -715.9 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 31.01 | 54.75 | 29.52 | 316.09 | 0.6113 | -488.0 | -325.5 | |
| 4.28 | 11.17 | 2.57 | 6.72 | 27.29 | 53.41 | 28.18 | 312.06 | 0.5675 | -962.3 | -750.4 | |
| 0.00 | 1.74 | 0.00 | 1.05 | 27.69 | 53.21 | 27.99 | 312.81 | 0.5686 | -775.0 | -581.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 28.31 | 52.51 | 27.28 | 314.34 | 0.5664 | -846.0 | -746.6 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 30.68 | 53.17 | 27.95 | 317.02 | 0.5934 | -527.0 | -395.5 | |
| 0.00 | 0.61 | 0.00 | 0.38 | 31.11 | 53.27 | 28.04 | 317.50 | 0.5980 | -738.0 | -623.9 | |
| 1.83 | 26.44 | 1.10 | 15.75 | 28.09 | 52.26 | 27.03 | 314.26 | 0.5620 | -513.3 | 17.0 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 29.55 | 52.59 | 27.37 | 316.01 | 0.5779 | -484.0 | -458.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 28.48 | 52.21 | 26.98 | 314.86 | 0.5649 | -738.0 | -622.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 30.23 | 52.68 | 27.46 | 316.86 | 0.5848 | -686.0 | -517.8 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 27.10 | 51.77 | 26.54 | 313.27 | 0.5485 | 169.0 | 322.4 | |
| 4.97 | -11.00 | 2.96 | -11.00 | 27.88 | 51.90 | 26.67 | 314.29 | 0.5564 | 591.7 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.07 | 31.00 | 52.68 | 27.46 | 317.88 | 0.5916 | -653.0 | -514.0 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 28.27 | 51.89 | 26.66 | 314.86 | 0.5597 | -660.0 | -546.0 | |
| 0.70 | -11.00 | 0.42 | -11.00 | 28.01 | 51.78 | 26.55 | 314.60 | 0.5564 | -186.1 | 999999 | |
| 0.00 | 3.05 | 0.00 | 1.86 | 30.54 | 52.43 | 27.20 | 317.52 | 0.5851 | -795.0 | -658.7 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 27.57 | 51.51 | 26.29 | 314.20 | 0.5498 | -547.0 | -436.2 | |
| 0.00 | 1.66 | 0.00 | 0.99 | 29.86 | 50.64 | 25.42 | 318.30 | 0.5618 | -699.0 | -579.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 21.51 | 48.11 | 22.88 | 307.75 | 0.4594 | 625.0 | 504.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 20.87 | 47.83 | 22.60 | 306.85 | 0.4506 | 719.0 | 575.0 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 23.77 | 48.22 | 23.00 | 311.61 | 0.4802 | 738.0 | 532.7 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 24.05 | 48.28 | 23.05 | 312.03 | 0.4834 | 665.0 | 543.1 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 23.65 | 48.02 | 22.80 | 311.63 | 0.4769 | 678.0 | 507.7 | |
| 0.00 | 1.92 | 0.00 | 1.04 | 19.07 | 45.45 | 20.22 | 305.99 | 0.4055 | 804.0 | 731.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 27.38 | 45.27 | 20.05 | 320.93 | 0.4849 | 665.0 | 552.1 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 27.35 | 45.02 | 19.79 | 321.23 | 0.4822 | 654.0 | 581.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 24.21 | 43.51 | 18.28 | 318.40 | 0.4328 | 802.0 | 620.7 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 27.10 | 43.94 | 18.71 | 322.32 | 0.4691 | 748.0 | 550.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 22.30 | 43.07 | 17.84 | 315.70 | 0.4076 | 654.0 | 416.6 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 25.13 | 43.41 | 18.18 | 320.07 | 0.4419 | 634.0 | 459.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 28.75 | 42.77 | 17.54 | 326.28 | 0.4779 | 576.0 | 503.0 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 30.06 | 39.98 | 14.75 | 332.06 | 0.4724 | 745.0 | 606.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 25.48 | 38.27 | 13.04 | 329.15 | 0.3989 | 661.0 | 522.5 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 22.94 | 34.07 | 8.85 | 334.55 | 0.3311 | 771.0 | 655.9 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 24.65 | 32.87 | 7.64 | 339.66 | 0.3491 | 890.0 | 711.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 25.25 | 29.91 | 4.69 | 347.57 | 0.3448 | 782.0 | 622.7 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 25.41 | 29.72 | 4.49 | 348.17 | 0.3467 | 881.0 | 743.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 26.19 | 27.08 | 1.86 | 355.26 | 0.3531 | 771.0 | 666.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 29.68 | 26.59 | 1.37 | 357.08 | 0.4090 | 642.0 | 511.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
