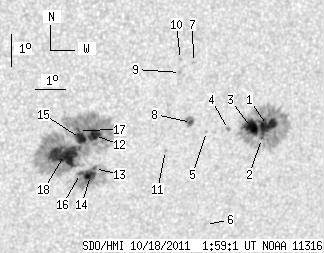

SDO HMI 2011-10-18 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.21 | 496.35 | 56.54 | 283.21 | -12.31 | 48.86 | 23.63 | 232.21 | 0.4964 | -223.3 | -140.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.84 | 155.65 | 9.93 | 91.79 | -11.94 | 53.16 | 27.93 | 237.55 | 0.5452 | 967.2 | 316.2 | |
| 0.61 | -1.00 | 0.36 | -1.00 | -12.34 | 53.00 | 27.77 | 236.77 | 0.5463 | 660.9 | 999999 | |
| 12.74 | -1.00 | 7.48 | -1.00 | -11.97 | 52.61 | 27.38 | 236.97 | 0.5387 | 1173.3 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -12.00 | 51.82 | 26.60 | 236.17 | 0.5293 | 1003.0 | 874.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -12.03 | 51.08 | 25.85 | 235.37 | 0.5203 | 752.0 | 685.8 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -14.98 | 51.39 | 26.16 | 231.15 | 0.5491 | 799.0 | 635.5 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -9.85 | 50.43 | 25.21 | 238.36 | 0.4949 | 761.0 | 580.7 | |
| 2.36 | 7.15 | 1.36 | 4.11 | -11.72 | 50.54 | 25.31 | 235.30 | 0.5112 | 915.8 | 790.2 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -10.14 | 50.02 | 24.80 | 237.43 | 0.4919 | 907.0 | 769.8 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -9.74 | 49.99 | 24.76 | 238.10 | 0.4883 | 831.0 | 646.5 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -12.57 | 49.74 | 24.52 | 233.07 | 0.5087 | 740.0 | 642.5 | |
| 9.86 | 272.22 | 5.54 | 152.50 | -12.00 | 47.33 | 22.10 | 231.13 | 0.4746 | -1019.0 | -439.5 | |
| 1.13 | 53.83 | 0.64 | 30.50 | -13.04 | 47.42 | 22.19 | 229.54 | 0.4856 | -707.9 | -305.0 | |
| 6.02 | -13.00 | 3.41 | -13.00 | -13.25 | 47.31 | 22.08 | 229.05 | 0.4864 | -951.2 | 999999 | |
| 7.94 | -12.00 | 4.45 | -12.00 | -12.07 | 46.87 | 21.64 | 230.42 | 0.4699 | -1241.2 | 999999 | |
| 1.22 | -13.00 | 0.69 | -13.00 | -13.18 | 46.97 | 21.74 | 228.74 | 0.4818 | -972.3 | 999999 | |
| 1.66 | -12.00 | 0.93 | -12.00 | -11.82 | 46.78 | 21.56 | 230.73 | 0.4664 | -1097.4 | 999999 | |
| 38.83 | -12.00 | 21.75 | -12.00 | -12.56 | 46.39 | 21.16 | 228.98 | 0.4689 | -1111.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
