Sunspot Group 11319

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11319	234.36	983.34	131.17	552.97	9.92	53.01	27.78	281.01	0.4697	-139.7	-133.6

previous or next observation for the same group / back to the solar disc

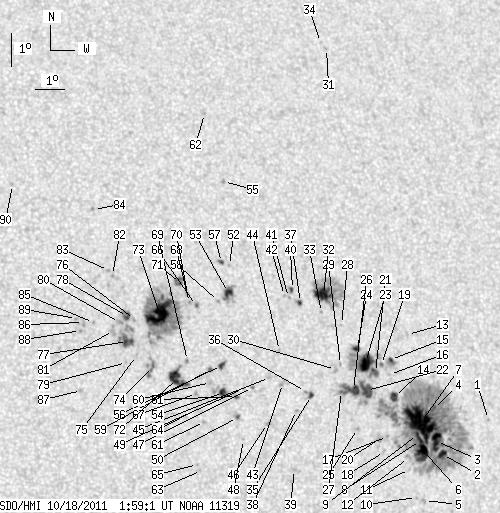

SDO HMI 2011-10-18 01:59:01 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.87	0.00	0.51	8.54	58.30	33.07	276.95	0.5458	723.0	600.8
2	4.71	467.92	2.73	269.86	7.59	56.57	31.34	275.27	0.5199	-800.7	-405.0
3	9.95	-2.00	5.75	-2.00	7.98	56.39	31.16	276.05	0.5174	-872.3	999999
4	2.79	-2.00	1.61	-2.00	8.97	56.37	31.15	277.97	0.5179	-523.8	999999
5	0.00	1.31	0.00	0.75	6.25	55.84	30.61	272.66	0.5088	-740.0	-639.2
6	8.81	-2.00	5.07	-2.00	7.74	55.91	30.69	275.60	0.5101	-1157.2	999999
7	50.26	-2.00	28.91	-2.00	8.58	55.88	30.65	277.26	0.5102	-1171.8	999999
8	1.40	-2.00	0.80	-2.00	8.04	55.83	30.60	276.21	0.5091	-1356.0	999999
9	1.22	-2.00	0.70	-2.00	8.23	55.74	30.52	276.58	0.5079	-1379.9	999999
10	0.00	0.79	0.00	0.45	6.35	55.57	30.34	272.86	0.5047	-692.0	-558.0
11	0.00	1.05	0.00	0.60	7.20	55.38	30.15	274.56	0.5020	-674.0	-538.8
12	0.00	2.79	0.00	1.60	7.56	55.37	30.15	275.27	0.5020	-744.0	-730.0
13	0.00	1.92	0.00	1.10	11.23	55.69	30.47	282.48	0.5114	-802.0	-580.4
14	5.85	-2.00	3.34	-2.00	9.40	55.04	29.82	279.01	0.4987	-888.7	999999
15	1.66	7.77	0.95	4.43	10.51	55.01	29.79	281.24	0.5000	343.8	-183.6
16	0.00	0.61	0.00	0.35	10.07	54.93	29.71	280.36	0.4980	-655.0	-566.9
17	0.00	1.31	0.00	0.74	8.22	54.69	29.47	276.67	0.4922	-942.0	-733.7
18	0.00	1.92	0.00	1.09	7.78	54.56	29.33	275.78	0.4898	-635.0	-577.8
19	0.52	1.83	0.30	1.04	10.38	54.69	29.46	281.05	0.4949	-666.3	-526.3
20	0.00	4.62	0.00	2.62	8.17	54.41	29.19	276.60	0.4879	-1002.0	-755.2
21	4.28	57.06	2.43	32.30	10.15	54.45	29.23	280.64	0.4910	-784.0	-620.4
22	12.74	44.58	7.21	25.15	9.63	54.09	28.86	279.65	0.4847	-1031.4	-699.2
23	16.05	-21.00	9.09	-21.00	10.46	54.14	28.91	281.36	0.4869	-1050.0	999999
24	2.97	-21.00	1.68	-21.00	10.90	53.90	28.68	282.31	0.4843	-773.6	999999
25	0.00	1.05	0.00	0.59	8.51	53.68	28.45	277.39	0.4771	-854.0	-711.9
26	9.77	-22.00	5.50	-22.00	9.68	53.65	28.42	279.85	0.4781	-1064.3	999999
27	1.66	-22.00	0.93	-22.00	9.64	53.23	28.00	279.85	0.4717	-862.5	999999
28	0.00	0.26	0.00	0.15	11.64	53.43	28.20	283.99	0.4790	-921.0	-765.0
29	0.00	1.40	0.00	0.78	10.45	53.27	28.04	281.55	0.4738	-784.0	-618.4
30	0.00	2.88	0.00	1.61	10.30	53.08	27.86	281.30	0.4708	-872.0	-713.5
31	0.00	1.05	0.00	0.61	20.02	54.20	28.97	299.67	0.5259	-710.0	-605.6
32	15.18	64.04	8.53	36.05	12.57	52.91	27.69	286.11	0.4740	976.7	266.5
33	0.00	1.05	0.00	0.59	12.03	52.78	27.55	285.04	0.4704	516.0	438.7
34	0.00	0.87	0.00	0.51	20.21	54.02	28.79	300.13	0.5247	-699.0	-477.9
35	2.53	4.01	1.41	2.23	9.56	52.20	26.97	279.93	0.4559	-885.9	-639.1
36	0.00	1.13	0.00	0.63	9.69	52.00	26.78	280.26	0.4532	-849.0	-709.1
37	1.48	3.58	0.83	1.99	12.36	52.10	26.87	286.02	0.4612	-817.8	-651.2
38	0.00	1.05	0.00	0.58	9.14	51.65	26.42	279.11	0.4469	-934.0	-687.5
39	0.00	2.27	0.00	1.25	7.38	51.46	26.23	275.17	0.4420	847.0	583.5
40	1.48	2.44	0.83	1.36	12.77	51.87	26.64	286.98	0.4591	-647.3	-707.3
41	0.00	0.70	0.00	0.39	12.53	51.70	26.48	286.56	0.4559	-660.0	-541.8
42	0.00	0.87	0.00	0.48	12.60	51.57	26.35	286.76	0.4542	-790.0	-638.0
43	0.00	3.40	0.00	1.88	9.96	51.25	26.02	281.07	0.4421	-137.0	-163.7
44	0.00	1.40	0.00	0.77	10.96	51.24	26.01	283.30	0.4442	-805.0	-512.1
45	0.00	1.92	0.00	1.06	10.16	50.83	25.60	281.65	0.4361	272.0	113.1
46	0.00	1.92	0.00	1.05	8.79	50.65	25.42	278.54	0.4308	-912.0	-718.8
47	0.00	1.40	0.00	0.76	9.89	50.23	25.00	281.20	0.4263	326.0	269.9
48	0.00	0.87	0.00	0.48	8.35	49.82	24.59	277.65	0.4172	741.0	497.3
49	0.00	1.13	0.00	0.62	9.87	49.93	24.70	281.25	0.4216	319.0	194.2
50	1.48	2.36	0.81	1.28	9.01	49.66	24.44	279.29	0.4158	613.1	457.8
51	1.57	1.83	0.86	1.00	9.64	49.68	24.45	280.79	0.4172	626.9	547.3
52	0.00	1.31	0.00	0.72	13.58	49.81	24.59	289.86	0.4318	-910.0	-669.6
53	5.15	15.01	2.82	8.21	12.77	49.69	24.47	288.09	0.4267	990.5	620.5
54	4.97	9.95	2.70	5.40	9.78	49.26	24.03	281.25	0.4109	741.9	663.6
55	0.00	1.31	0.00	0.72	16.12	49.92	24.69	295.32	0.4458	889.0	697.1
56	3.49	4.45	1.90	2.42	10.59	49.25	24.03	283.20	0.4129	727.8	602.3
57	1.48	2.53	0.81	1.39	13.68	49.55	24.33	290.24	0.4284	-891.9	-740.4
58	0.00	1.31	0.00	0.71	12.51	49.33	24.10	287.71	0.4203	952.0	770.0
59	1.57	1.83	0.85	0.99	10.48	48.88	23.65	283.10	0.4068	926.6	927.0
60	0.00	1.83	0.00	0.99	10.09	48.85	23.62	282.17	0.4053	957.0	796.0
61	0.00	1.57	0.00	0.85	8.93	48.57	23.34	279.39	0.3984	677.0	526.9
62	0.00	1.05	0.00	0.58	18.21	49.56	24.33	299.93	0.4535	779.0	653.6
63	0.00	0.35	0.00	0.19	7.48	48.38	23.15	275.74	0.3935	481.0	475.2
64	0.00	0.26	0.00	0.14	9.33	48.40	23.17	280.43	0.3965	712.0	621.0
65	0.00	0.96	0.00	0.52	7.66	48.26	23.03	276.23	0.3917	818.0	693.6
66	0.79	1.74	0.43	0.95	12.42	48.59	23.36	287.92	0.4087	634.0	711.6
67	0.00	2.01	0.00	1.08	9.78	48.36	23.14	281.58	0.3969	810.0	584.2
68	0.00	1.40	0.00	0.76	12.52	48.36	23.13	288.29	0.4057	745.0	602.2
69	0.00	1.31	0.00	0.71	10.78	48.14	22.92	284.16	0.3962	-763.0	-615.5
70	0.00	1.40	0.00	0.76	12.79	48.32	23.09	288.96	0.4062	656.0	587.4
71	0.79	6.54	0.42	3.54	13.10	48.12	22.89	289.83	0.4045	863.6	718.8
72	14.31	21.38	7.69	11.49	10.25	47.77	22.55	283.00	0.3889	955.1	359.8
73	29.93	134.02	16.08	72.04	12.22	47.34	22.11	288.21	0.3890	1139.7	415.2
74	1.31	11.26	0.70	6.01	10.64	47.01	21.79	284.36	0.3782	658.5	644.5
75	0.00	1.22	0.00	0.65	10.99	46.48	21.26	285.56	0.3711	823.0	618.8
76	0.00	1.66	0.00	0.89	12.07	46.50	21.28	288.38	0.3756	887.0	737.4
77	8.81	25.65	4.69	13.66	11.42	46.22	21.00	286.86	0.3686	1013.3	847.7
78	3.40	6.81	1.81	3.63	12.17	46.28	21.06	288.78	0.3726	1029.3	859.2
79	0.00	0.79	0.00	0.42	10.79	46.14	20.92	285.23	0.3650	967.0	772.7
80	0.00	3.05	0.00	1.63	12.00	46.01	20.78	288.53	0.3676	903.0	771.3
81	0.00	4.45	0.00	2.36	11.77	45.79	20.57	288.06	0.3633	759.0	721.2
82	0.00	1.31	0.00	0.70	13.42	45.90	20.67	292.30	0.3728	825.0	648.8
83	0.00	1.31	0.00	0.70	13.57	45.78	20.56	292.79	0.3718	895.0	732.9
84	0.00	1.31	0.00	0.70	15.43	45.47	20.24	297.72	0.3784	780.0	640.1
85	0.00	1.13	0.00	0.60	12.03	45.16	19.94	289.23	0.3547	857.0	624.0
86	0.00	2.79	0.00	1.48	12.04	44.84	19.61	289.51	0.3498	825.0	711.1
87	0.00	1.83	0.00	0.96	10.00	44.63	19.41	283.88	0.3385	766.0	593.0
88	0.00	1.40	0.00	0.74	11.80	44.72	19.50	288.95	0.3469	965.0	776.6
89	0.00	1.40	0.00	0.74	12.17	44.62	19.39	290.04	0.3471	755.0	655.9
90	0.00	1.22	0.00	0.65	16.27	42.89	17.66	302.88	0.3483	862.0	583.8

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
