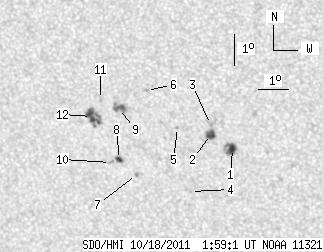

SDO HMI 2011-10-18 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.54 | 61.67 | 17.54 | 35.45 | -14.76 | 2.52 | -22.71 | 132.57 | 0.5087 | -130.9 | -255.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.11 | 12.13 | 3.45 | 6.86 | -15.24 | 5.28 | -19.95 | 136.87 | 0.4834 | 1023.5 | 729.1 | |
| 6.28 | 7.50 | 3.56 | 4.25 | -14.82 | 4.60 | -20.63 | 135.29 | 0.4861 | 917.2 | 738.9 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -14.50 | 4.63 | -20.60 | 134.85 | 0.4824 | 851.0 | 716.8 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -16.68 | 3.73 | -21.50 | 136.80 | 0.5149 | 669.0 | 485.7 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -14.63 | 3.52 | -21.70 | 133.57 | 0.4959 | 433.0 | 402.1 | |
| 0.00 | 1.74 | 0.00 | 0.99 | -13.50 | 2.61 | -22.62 | 130.65 | 0.4949 | -898.0 | -572.3 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -16.20 | 1.97 | -23.26 | 133.90 | 0.5284 | -892.0 | -709.7 | |
| 2.62 | 4.19 | 1.53 | 2.44 | -15.74 | 1.45 | -23.78 | 132.62 | 0.5295 | -760.1 | -620.4 | |
| 5.85 | 9.16 | 3.37 | 5.27 | -14.11 | 1.64 | -23.59 | 130.42 | 0.5118 | -941.6 | -804.5 | |
| 0.00 | 2.01 | 0.00 | 1.17 | -15.85 | 1.13 | -24.10 | 132.40 | 0.5341 | -588.0 | -466.0 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -13.85 | 1.03 | -24.20 | 129.31 | 0.5164 | -782.0 | -662.2 | |
| 9.68 | 18.32 | 5.63 | 10.65 | -14.40 | 0.66 | -24.57 | 129.73 | 0.5257 | -793.2 | -770.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
