SDO HMI 2011-10-18 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.40 | 43.55 | 21.17 | 62.24 | 20.05 | 95.12 | 70.45 | 289.32 | 0.9390 | 20.2 | 65.1 | |
|
previous
or next observation for the same group /

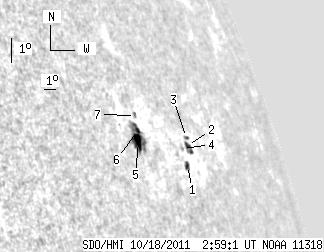

back to the solar disc SDO HMI 2011-10-18 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.14 | 4.28 | 4.95 | 6.73 | 19.13 | 97.21 | 72.53 | 288.30 | 0.9506 | -388.4 | -418.2 | |
| 2.88 | 6.72 | 4.69 | 10.96 | 19.70 | 97.87 | 73.20 | 288.90 | 0.9540 | -450.0 | -377.2 | |
| 1.05 | 1.83 | 1.72 | 3.02 | 19.94 | 98.05 | 73.37 | 289.14 | 0.9548 | -286.8 | -244.1 | |
| 0.00 | 1.40 | 0.00 | 2.21 | 19.66 | 97.28 | 72.60 | 288.86 | 0.9510 | -470.0 | -427.0 | |
| 6.28 | 27.40 | 8.39 | 36.70 | 20.25 | 93.59 | 68.92 | 289.56 | 0.9306 | 556.2 | 237.9 | |
| 1.05 | -5.00 | 1.42 | -5.00 | 20.55 | 93.80 | 69.12 | 289.87 | 0.9319 | 363.5 | 999999 | |
| 0.00 | 1.92 | 0.00 | 2.62 | 21.00 | 94.07 | 69.39 | 290.35 | 0.9336 | 283.0 | 246.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
