SDO HMI 2011-10-18 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.39 | 70.52 | 20.74 | 40.22 | -14.75 | 2.51 | -21.62 | 133.95 | 0.4965 | -159.0 | -164.3 | |
|
previous
or next observation for the same group /

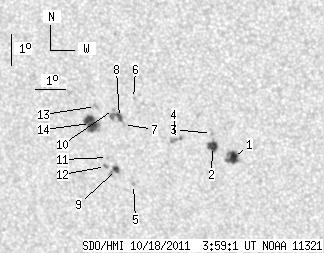

back to the solar disc SDO HMI 2011-10-18 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.68 | 12.39 | 4.31 | 6.95 | -15.24 | 5.33 | -18.80 | 138.54 | 0.4715 | 1004.5 | 734.9 | |
| 6.89 | 9.25 | 3.87 | 5.20 | -14.91 | 4.68 | -19.45 | 137.09 | 0.4746 | 946.5 | 750.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -14.50 | 4.68 | -19.45 | 136.47 | 0.4700 | 808.0 | 670.9 | |
| 0.00 | 4.28 | 0.00 | 2.42 | -14.73 | 3.48 | -20.65 | 135.12 | 0.4854 | 827.0 | 672.0 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -16.23 | 1.91 | -22.22 | 135.23 | 0.5176 | -836.0 | -689.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -13.48 | 2.21 | -21.92 | 131.50 | 0.4867 | -792.0 | -586.2 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -14.32 | 1.79 | -22.34 | 132.27 | 0.4997 | -604.0 | -454.9 | |
| 3.58 | 7.77 | 2.04 | 4.44 | -14.10 | 1.68 | -22.45 | 131.79 | 0.4988 | -961.1 | -875.9 | |
| 2.88 | 6.63 | 1.67 | 3.84 | -15.77 | 1.39 | -22.74 | 133.92 | 0.5184 | -932.5 | -587.2 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -13.86 | 1.51 | -22.62 | 131.19 | 0.4983 | -793.0 | -659.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -15.40 | 1.14 | -22.99 | 133.06 | 0.5175 | -431.0 | -326.5 | |
| 1.22 | 1.48 | 0.71 | 0.86 | -15.69 | 1.03 | -23.10 | 133.36 | 0.5215 | 622.1 | 539.3 | |
| 0.00 | 2.79 | 0.00 | 1.60 | -13.79 | 0.91 | -23.22 | 130.35 | 0.5044 | -828.0 | -703.7 | |
| 14.14 | 19.20 | 8.14 | 11.06 | -14.33 | 0.69 | -23.44 | 130.92 | 0.5122 | -840.0 | -718.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
