SDO HMI 2011-10-18 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.40 | 40.22 | 19.30 | 59.94 | 20.10 | 94.93 | 71.35 | 289.36 | 0.9440 | 13.7 | 160.2 | |
|
previous
or next observation for the same group /

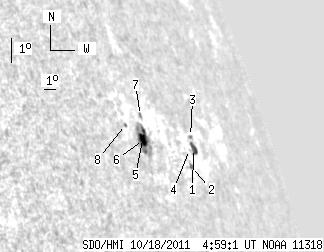

back to the solar disc SDO HMI 2011-10-18 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.45 | 6.11 | 7.75 | 10.65 | 19.58 | 98.03 | 74.45 | 288.78 | 0.9600 | -405.1 | -113.3 | |
| 1.66 | 2.79 | 2.76 | 4.65 | 19.09 | 97.19 | 73.60 | 288.26 | 0.9560 | -443.9 | -539.8 | |
| 0.00 | 1.48 | 0.00 | 2.60 | 19.95 | 98.15 | 74.57 | 289.16 | 0.9605 | -284.0 | -256.0 | |
| 0.00 | 0.87 | 0.00 | 1.48 | 19.59 | 97.57 | 73.99 | 288.79 | 0.9578 | -472.0 | -453.3 | |
| 0.44 | 25.57 | 0.62 | 35.80 | 20.53 | 93.90 | 70.32 | 289.83 | 0.9389 | 62.4 | 300.5 | |
| 5.85 | -5.00 | 8.17 | -5.00 | 20.28 | 93.54 | 69.96 | 289.57 | 0.9368 | 576.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 3.12 | 21.00 | 94.02 | 70.44 | 290.32 | 0.9396 | 271.0 | 181.1 | |
| 0.00 | 1.22 | 0.00 | 1.64 | 20.85 | 92.47 | 68.89 | 290.22 | 0.9306 | 417.0 | 316.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
