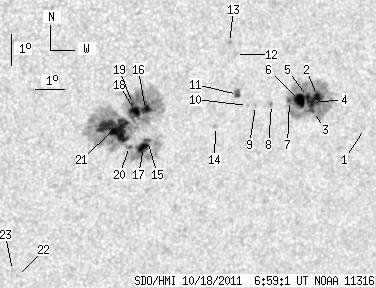

SDO HMI 2011-10-18 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.91 | 467.14 | 49.31 | 272.48 | -12.36 | 48.69 | 26.21 | 235.03 | 0.5276 | -337.4 | -104.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.60 | -12.99 | 55.14 | 32.65 | 239.91 | 0.6098 | 482.0 | 333.3 | |
| 4.10 | 135.87 | 2.49 | 82.28 | -11.89 | 53.29 | 30.80 | 240.13 | 0.5801 | 991.6 | 385.7 | |
| 1.05 | -2.00 | 0.64 | -2.00 | -12.36 | 53.21 | 30.72 | 239.36 | 0.5823 | 650.5 | 999999 | |
| 1.92 | -2.00 | 1.16 | -2.00 | -12.07 | 53.14 | 30.65 | 239.73 | 0.5794 | 992.9 | 999999 | |
| 1.31 | -2.00 | 0.79 | -2.00 | -11.87 | 52.93 | 30.45 | 239.87 | 0.5756 | 1091.0 | 999999 | |
| 10.38 | -2.00 | 6.27 | -2.00 | -11.98 | 52.67 | 30.18 | 239.48 | 0.5730 | 1226.7 | 999999 | |
| 0.70 | -2.00 | 0.42 | -2.00 | -11.97 | 52.31 | 29.82 | 239.21 | 0.5685 | 1049.2 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -12.06 | 51.69 | 29.20 | 238.53 | 0.5615 | 909.0 | 779.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -12.06 | 51.13 | 28.64 | 238.04 | 0.5547 | 807.0 | 579.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -12.05 | 50.85 | 28.36 | 237.80 | 0.5511 | 710.0 | 536.3 | |
| 1.66 | 5.24 | 0.98 | 3.08 | -11.69 | 50.46 | 27.97 | 238.02 | 0.5436 | 929.9 | 758.4 | |
| 0.00 | 2.79 | 0.00 | 1.63 | -10.43 | 50.26 | 27.77 | 239.88 | 0.5319 | 674.0 | 606.8 | |
| 0.00 | 2.36 | 0.00 | 1.37 | -10.05 | 50.02 | 27.53 | 240.30 | 0.5261 | 920.0 | 751.0 | |
| 0.00 | 1.66 | 0.00 | 0.98 | -12.66 | 49.81 | 27.32 | 235.88 | 0.5431 | 872.0 | 695.4 | |
| 0.44 | 312.84 | 0.25 | 179.36 | -13.00 | 47.53 | 25.04 | 233.00 | 0.5184 | -803.6 | -392.2 | |
| 6.02 | -15.00 | 3.46 | -15.00 | -12.02 | 47.36 | 24.87 | 234.39 | 0.5079 | -997.4 | 999999 | |
| 7.33 | -15.00 | 4.24 | -15.00 | -13.21 | 47.41 | 24.93 | 232.54 | 0.5190 | -960.0 | 999999 | |
| 6.89 | -15.00 | 3.95 | -15.00 | -12.06 | 47.02 | 24.54 | 233.95 | 0.5043 | -1218.9 | 999999 | |
| 0.96 | -15.00 | 0.55 | -15.00 | -11.81 | 46.90 | 24.41 | 234.23 | 0.5006 | -1002.9 | 999999 | |
| 1.66 | -15.00 | 0.96 | -15.00 | -13.16 | 46.93 | 24.45 | 232.09 | 0.5128 | -761.6 | 999999 | |
| 40.49 | -15.00 | 23.15 | -15.00 | -12.57 | 46.37 | 23.88 | 232.39 | 0.5009 | -1075.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -17.18 | 43.63 | 21.14 | 222.08 | 0.5162 | -652.0 | -524.4 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -16.98 | 43.44 | 20.95 | 222.10 | 0.5122 | -537.0 | -352.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
