group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	238.68	1021.68	137.12	590.55	9.76	53.13	30.64	280.05	0.5121	-116.9	-175.0

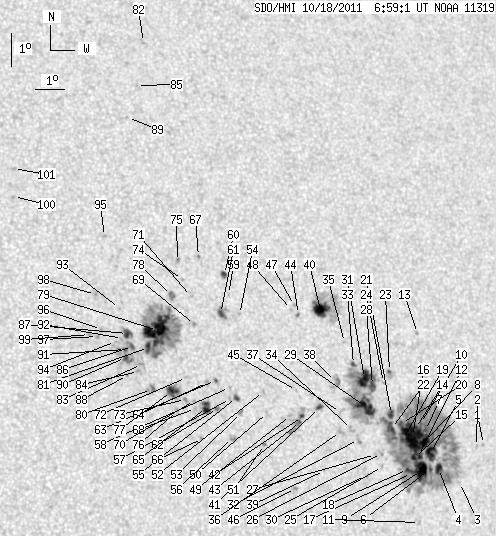

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-18 06:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.31	0.00	0.80	8.21	58.39	35.90	276.21	0.5861	512.0	324.1
2	0.00	1.31	0.00	0.80	8.17	58.13	35.64	276.15	0.5823	-333.0	-220.9
3	0.00	0.96	0.00	0.58	7.13	57.40	34.91	274.37	0.5717	48.0	46.0
4	6.20	483.09	3.70	287.03	7.59	56.67	34.18	275.20	0.5614	-715.4	-357.4
5	9.86	-4.00	5.88	-4.00	8.05	56.42	33.93	276.04	0.5580	-799.0	999999
6	1.40	-4.00	0.83	-4.00	7.60	56.38	33.89	275.24	0.5572	-541.9	999999
7	1.40	-4.00	0.83	-4.00	8.75	56.31	33.82	277.30	0.5568	-676.6	999999
8	7.16	-4.00	4.26	-4.00	8.42	56.24	33.75	276.72	0.5555	-1033.5	999999
9	16.06	-4.00	9.52	-4.00	7.56	56.05	33.56	275.18	0.5524	-1156.4	999999
10	0.96	-4.00	0.57	-4.00	8.97	56.15	33.66	277.71	0.5547	-639.5	999999
11	0.00	1.48	0.00	0.88	6.02	55.85	33.37	272.36	0.5496	-670.0	-534.9
12	2.97	-4.00	1.76	-4.00	8.02	55.98	33.49	276.00	0.5516	-1096.6	999999
13	0.00	1.05	0.00	0.63	11.66	56.37	33.88	282.51	0.5614	-680.0	-604.0
14	2.18	-4.00	1.29	-4.00	8.83	55.95	33.46	277.48	0.5517	-926.5	999999
15	2.88	-4.00	1.70	-4.00	7.96	55.83	33.34	275.92	0.5494	-1338.2	999999
16	32.37	-4.00	19.16	-4.00	8.59	55.82	33.33	277.07	0.5496	-1224.8	999999
17	0.44	-4.00	0.26	-4.00	7.49	55.68	33.19	275.06	0.5471	-1172.2	999999
18	1.40	-4.00	0.82	-4.00	7.62	55.55	33.06	275.30	0.5452	-1065.9	999999
19	2.53	-4.00	1.49	-4.00	8.52	55.45	32.96	276.97	0.5442	-1186.7	999999
20	2.27	-4.00	1.34	-4.00	9.00	55.46	32.98	277.85	0.5448	-878.4	999999
21	4.10	-4.00	2.41	-4.00	9.29	55.13	32.64	278.42	0.5403	-932.6	999999
22	7.42	-4.00	4.36	-4.00	8.87	55.09	32.60	277.65	0.5393	-1135.3	999999
23	1.05	5.24	0.62	3.08	10.58	55.21	32.72	280.79	0.5430	296.9	-153.4
24	0.00	1.05	0.00	0.61	10.26	54.95	32.46	280.25	0.5389	-574.0	-428.6
25	0.00	1.40	0.00	0.82	7.76	54.66	32.18	275.60	0.5323	-730.0	-547.9
26	0.00	2.18	0.00	1.27	8.15	54.66	32.17	276.33	0.5325	-944.0	-810.5
27	0.00	1.48	0.00	0.86	8.13	54.45	31.96	276.31	0.5293	-771.0	-683.4
28	3.05	120.77	1.78	70.25	10.19	54.55	32.06	280.20	0.5329	-889.3	-687.1
29	14.05	-28.00	8.18	-28.00	9.55	54.26	31.77	279.03	0.5279	-1186.5	999999
30	0.00	2.01	0.00	1.17	7.52	54.07	31.59	275.17	0.5235	-723.0	-704.0
31	12.30	-28.00	7.17	-28.00	10.42	54.29	31.80	280.67	0.5295	-1140.6	999999
32	0.00	3.58	0.00	2.07	8.61	53.89	31.40	277.28	0.5214	-820.0	-700.4
33	1.83	-28.00	1.07	-28.00	10.85	53.94	31.46	281.57	0.5252	-890.2	999999
34	0.00	3.05	0.00	1.77	8.92	53.67	31.18	277.90	0.5184	-702.0	-692.2
35	0.00	1.05	0.00	0.61	11.53	53.70	31.22	282.91	0.5231	-766.0	-611.8
36	0.00	3.49	0.00	2.01	8.88	53.27	30.79	277.88	0.5126	-930.0	-769.7
37	0.00	3.49	0.00	2.01	9.44	53.33	30.84	278.98	0.5140	-789.0	-608.1
38	0.00	7.68	0.00	4.43	10.38	53.25	30.76	280.81	0.5142	-781.0	-776.1
39	0.00	0.87	0.00	0.50	7.74	52.62	30.13	275.70	0.5018	567.0	430.8
40	16.75	59.86	9.67	34.63	12.56	52.98	30.49	285.10	0.5150	968.8	178.9
41	2.62	3.75	1.50	2.15	9.63	52.61	30.12	279.47	0.5036	-926.5	-575.3
42	1.75	17.19	0.99	9.76	9.39	51.99	29.50	279.10	0.4941	-944.2	-712.9
43	0.96	-42.00	0.55	-42.00	9.24	51.91	29.42	278.81	0.4926	-903.6	999999
44	0.00	1.05	0.00	0.60	12.45	52.19	29.70	285.15	0.5032	-823.0	-745.5
45	0.00	0.87	0.00	0.50	10.18	51.86	29.37	280.72	0.4933	-770.0	-595.6
46	0.00	1.75	0.00	0.99	7.25	51.57	29.08	274.77	0.4859	769.0	659.1
47	0.00	1.57	0.00	0.90	12.72	52.08	29.59	285.73	0.5025	-917.0	-699.1
48	0.00	1.31	0.00	0.75	12.61	51.96	29.47	285.55	0.5004	-825.0	-557.0
49	0.00	1.31	0.00	0.74	9.44	51.58	29.09	279.27	0.4879	-201.0	-182.7
50	0.00	0.87	0.00	0.49	9.56	50.79	28.31	279.69	0.4763	293.0	259.2
51	0.00	1.48	0.00	0.83	8.61	50.61	28.12	277.72	0.4722	-859.0	-663.9
52	0.00	1.22	0.00	0.69	10.20	50.72	28.23	281.04	0.4762	-899.0	-712.1
53	0.00	2.62	0.00	1.46	9.61	49.91	27.42	279.98	0.4629	787.0	469.9
54	0.00	1.05	0.00	0.59	12.54	50.14	27.65	286.13	0.4735	521.0	447.7
55	2.62	3.67	1.46	2.04	10.06	49.78	27.29	280.99	0.4618	619.0	476.6
56	0.00	4.10	0.00	2.28	8.87	49.54	27.05	278.46	0.4562	673.0	610.1
57	0.00	1.57	0.00	0.87	10.04	49.57	27.08	281.00	0.4586	685.0	509.4
58	0.00	1.22	0.00	0.68	10.37	49.57	27.08	281.72	0.4592	512.0	478.8
59	0.00	0.87	0.00	0.49	13.16	49.83	27.34	287.54	0.4710	462.0	393.2
60	2.88	3.67	1.62	2.06	13.77	49.77	27.28	288.83	0.4723	-885.2	-751.0
61	3.67	8.38	2.05	4.68	12.60	49.49	27.00	286.53	0.4641	922.5	644.8
62	0.00	3.05	0.00	1.69	9.76	49.10	26.61	280.52	0.4509	845.0	588.5
63	0.52	2.36	0.29	1.31	10.60	49.11	26.62	282.36	0.4528	819.7	536.0
64	0.00	2.09	0.00	1.16	10.55	48.83	26.35	282.35	0.4485	953.0	727.5
65	8.29	12.13	4.58	6.70	9.81	48.73	26.25	280.72	0.4454	893.8	658.1
66	0.00	1.05	0.00	0.58	8.89	48.52	26.04	278.69	0.4406	814.0	550.7
67	0.00	0.70	0.00	0.39	14.35	48.94	26.46	290.48	0.4626	-860.0	-749.8
68	0.00	1.48	0.00	0.82	9.79	48.36	25.87	280.79	0.4396	1028.0	725.8
69	0.00	1.66	0.00	0.92	12.31	48.57	26.08	286.32	0.4494	689.0	614.6
70	0.00	1.13	0.00	0.63	10.03	48.35	25.86	281.34	0.4399	822.0	716.5
71	0.00	1.48	0.00	0.82	13.15	48.56	26.07	288.16	0.4523	556.0	425.9
72	0.00	1.66	0.00	0.91	10.73	48.14	25.65	282.99	0.4383	-941.0	-639.9
73	0.00	2.09	0.00	1.15	10.08	48.05	25.56	281.53	0.4354	922.0	726.6
74	0.00	0.96	0.00	0.53	13.68	48.31	25.82	289.42	0.4507	696.0	523.2
75	0.00	2.44	0.00	1.36	14.23	48.21	25.72	290.66	0.4514	537.0	354.7
76	0.00	1.22	0.00	0.67	9.76	47.75	25.26	280.89	0.4301	850.0	640.6
77	8.55	14.92	4.69	8.18	10.33	47.60	25.11	282.27	0.4291	931.4	176.5
78	0.00	4.54	0.00	2.50	13.21	47.88	25.39	288.64	0.4425	786.0	694.2
79	40.05	136.48	21.95	74.88	12.18	47.30	24.81	286.64	0.4299	1064.9	372.6
80	0.00	6.81	0.00	3.71	10.42	46.94	24.45	282.72	0.4191	932.0	774.4
81	4.01	-79.00	2.19	-79.00	11.68	46.95	24.46	285.67	0.4229	1019.4	999999
82	0.00	1.22	0.00	0.69	20.95	48.05	25.56	304.10	0.4886	868.0	654.2
83	0.00	3.67	0.00	2.00	11.18	46.67	24.18	284.63	0.4171	800.0	608.2
84	0.00	2.09	0.00	1.14	10.98	46.55	24.06	284.19	0.4146	769.0	688.0
85	0.00	0.96	0.00	0.54	19.63	47.57	25.08	302.09	0.4732	842.0	634.8
86	2.27	25.04	1.23	13.60	11.73	46.42	23.93	286.05	0.4150	969.1	851.6
87	5.76	8.81	3.13	4.79	12.13	46.29	23.80	287.06	0.4144	929.8	694.3
88	0.00	0.96	0.00	0.52	10.87	46.17	23.69	284.11	0.4085	926.0	766.1
89	0.00	0.96	0.00	0.53	18.67	47.10	24.61	300.64	0.4605	766.0	535.5
90	2.53	-86.00	1.37	-86.00	11.41	46.16	23.67	285.42	0.4099	1156.8	999999
91	1.57	-86.00	0.85	-86.00	11.65	46.18	23.69	285.98	0.4111	1099.1	999999
92	0.00	2.09	0.00	1.14	11.99	46.11	23.62	286.81	0.4112	903.0	795.0
93	0.00	0.79	0.00	0.43	12.89	46.09	23.61	288.96	0.4145	775.0	650.7
94	0.00	1.05	0.00	0.57	11.91	45.87	23.38	286.75	0.4072	790.0	588.7
95	0.00	1.40	0.00	0.76	15.08	45.83	23.34	294.16	0.4211	821.0	638.5
96	0.00	1.22	0.00	0.66	12.28	45.44	22.95	287.91	0.4021	844.0	658.6
97	0.00	1.40	0.00	0.75	12.08	45.28	22.80	287.50	0.3990	937.0	793.0
98	0.00	1.40	0.00	0.76	13.34	45.34	22.85	290.51	0.4052	937.0	729.6
99	0.00	1.22	0.00	0.66	12.15	45.03	22.54	287.83	0.3953	935.0	777.3
100	0.00	1.48	0.00	0.80	16.40	42.93	20.44	299.87	0.3881	764.0	639.5
101	0.00	1.75	0.00	0.94	17.25	43.03	20.54	301.71	0.3956	809.0	652.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
