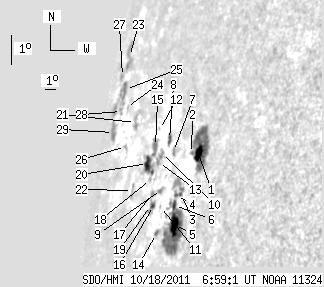

SDO HMI 2011-10-18 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.19 | 243.39 | 81.02 | 533.85 | 11.61 | 304.83 | -77.66 | 79.35 | 0.9711 | -147.9 | -42.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.16 | 47.21 | 10.90 | 71.58 | 12.00 | 310.70 | -71.79 | 79.23 | 0.9473 | -486.3 | -240.1 | |
| 0.00 | 1.05 | 0.00 | 1.65 | 11.94 | 310.03 | -72.46 | 79.27 | 0.9509 | 358.0 | 348.2 | |
| 1.22 | 14.40 | 1.96 | 23.62 | 10.67 | 309.82 | -72.67 | 80.60 | 0.9523 | -592.6 | -78.4 | |
| 1.83 | -3.00 | 3.01 | -3.00 | 10.59 | 309.34 | -73.15 | 80.65 | 0.9548 | -375.3 | 999999 | |
| 9.77 | 68.07 | 15.84 | 110.78 | 9.74 | 309.63 | -72.85 | 81.56 | 0.9534 | -576.4 | -226.7 | |
| 3.14 | -5.00 | 5.18 | -5.00 | 10.28 | 309.31 | -73.17 | 80.97 | 0.9550 | -380.9 | 999999 | |
| 0.00 | 3.32 | 0.00 | 5.78 | 11.82 | 308.16 | -74.33 | 79.31 | 0.9603 | 257.0 | 154.9 | |
| 2.97 | 4.71 | 5.39 | 8.59 | 12.12 | 307.45 | -75.04 | 78.97 | 0.9635 | -257.4 | -208.9 | |
| 0.00 | 2.79 | 0.00 | 5.07 | 10.61 | 307.64 | -74.85 | 80.54 | 0.9630 | 579.0 | 509.9 | |
| 0.00 | 3.75 | 0.00 | 7.08 | 11.64 | 306.86 | -75.63 | 79.44 | 0.9663 | 460.0 | 349.3 | |
| 0.00 | 0.87 | 0.00 | 1.56 | 10.12 | 307.86 | -74.63 | 81.07 | 0.9621 | 62.0 | 65.8 | |
| 0.00 | 1.48 | 0.00 | 2.96 | 12.30 | 306.03 | -76.46 | 78.72 | 0.9697 | -218.0 | -135.4 | |
| 0.00 | 2.18 | 0.00 | 4.18 | 11.35 | 306.72 | -75.77 | 79.73 | 0.9670 | 405.0 | 408.3 | |
| 1.40 | 2.27 | 2.50 | 4.06 | 9.30 | 307.91 | -74.58 | 81.92 | 0.9621 | 267.8 | 210.6 | |
| 0.00 | 9.08 | 0.00 | 18.25 | 11.77 | 305.97 | -76.51 | 79.26 | 0.9701 | 554.0 | 413.1 | |
| 1.31 | 7.16 | 2.46 | 13.59 | 10.07 | 307.05 | -75.44 | 81.08 | 0.9658 | -123.5 | 86.9 | |
| 0.00 | 2.62 | 0.00 | 5.04 | 10.40 | 306.69 | -75.80 | 80.71 | 0.9673 | 360.0 | 333.2 | |
| 0.00 | 1.48 | 0.00 | 2.96 | 10.78 | 306.14 | -76.34 | 80.29 | 0.9696 | 341.0 | 194.5 | |
| 1.05 | -16.00 | 2.00 | -16.00 | 10.04 | 306.70 | -75.79 | 81.09 | 0.9674 | 152.5 | 999999 | |
| 6.28 | 12.13 | 13.08 | 25.07 | 11.19 | 305.39 | -77.10 | 79.82 | 0.9726 | -373.3 | -100.6 | |
| 0.00 | 5.15 | 0.00 | 13.46 | 12.17 | 302.48 | -80.01 | 78.66 | 0.9827 | 551.0 | 450.9 | |
| 0.00 | 4.19 | 0.00 | 9.74 | 10.24 | 304.03 | -78.46 | 80.72 | 0.9779 | 379.0 | 298.8 | |
| 0.00 | 12.74 | 0.00 | 51.99 | 13.80 | 298.29 | -84.19 | 76.74 | 0.9932 | 91.0 | 100.0 | |
| 0.00 | 0.87 | 0.00 | 2.79 | 12.42 | 300.28 | -82.21 | 78.26 | 0.9889 | 247.0 | 317.7 | |
| 5.06 | 18.15 | 18.70 | 73.88 | 12.87 | 299.21 | -83.28 | 77.74 | 0.9914 | 256.6 | -196.9 | |
| 0.00 | 1.83 | 0.00 | 5.19 | 11.35 | 301.62 | -80.87 | 79.43 | 0.9855 | 481.0 | 403.9 | |
| 0.00 | 4.19 | 0.00 | 19.10 | 13.12 | 297.69 | -84.79 | 77.37 | 0.9944 | -319.0 | -265.3 | |
| 0.00 | 2.71 | 0.00 | 9.78 | 12.21 | 299.40 | -83.08 | 78.41 | 0.9911 | 414.0 | 286.9 | |
| 0.00 | 8.99 | 0.00 | 36.10 | 11.48 | 298.54 | -83.95 | 79.08 | 0.9930 | -148.0 | -112.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
