SDO HMI 2011-10-18 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.74 | 180.26 | 15.69 | 109.71 | -26.94 | 35.88 | 13.94 | 201.77 | 0.5833 | 487.0 | 292.3 | |
|
previous
or next observation for the same group /

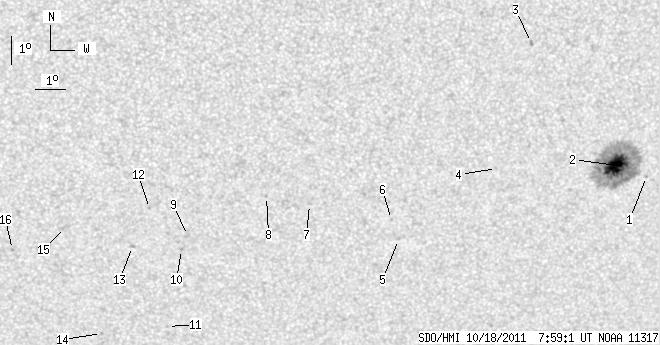

back to the solar disc SDO HMI 2011-10-18 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.70 | -27.20 | 38.32 | 16.38 | 204.96 | 0.5965 | -607.0 | -551.2 | |
| 25.74 | 160.55 | 15.69 | 97.84 | -26.77 | 37.21 | 15.27 | 203.80 | 0.5848 | 1179.8 | 358.2 | |
| 0.00 | 2.01 | 0.00 | 1.15 | -22.43 | 33.85 | 11.91 | 202.14 | 0.5081 | 964.0 | 798.7 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -26.78 | 33.08 | 11.14 | 197.89 | 0.5639 | 662.0 | 500.3 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -29.28 | 29.94 | 8.00 | 191.99 | 0.5866 | 605.0 | 514.4 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -28.54 | 29.65 | 7.70 | 191.85 | 0.5756 | 806.0 | 645.4 | |
| 0.00 | 1.66 | 0.00 | 0.99 | -27.97 | 26.81 | 4.87 | 187.72 | 0.5605 | -607.0 | -443.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -27.67 | 25.34 | 3.40 | 185.47 | 0.5538 | -735.0 | -527.5 | |
| 0.00 | 1.92 | 0.00 | 1.16 | -29.07 | 22.69 | 0.74 | 181.14 | 0.5718 | -72.0 | -127.3 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -29.58 | 22.48 | 0.54 | 180.82 | 0.5791 | -710.0 | -542.8 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -32.46 | 22.00 | 0.06 | 180.09 | 0.6193 | -573.0 | -467.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -28.09 | 21.39 | -0.55 | 179.13 | 0.5576 | -702.0 | -468.0 | |
| 0.00 | 1.48 | 0.00 | 0.90 | -29.47 | 20.80 | -1.14 | 178.27 | 0.5777 | -703.0 | -569.9 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -32.73 | 19.66 | -2.28 | 176.91 | 0.6239 | -677.0 | -568.0 | |
| 0.00 | 2.88 | 0.00 | 1.73 | -28.79 | 18.49 | -3.45 | 174.66 | 0.5700 | -582.0 | -271.0 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -29.61 | 16.67 | -5.27 | 172.11 | 0.5845 | -634.0 | -556.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
