SDO HMI 2011-10-18 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.16 | 29.05 | 9.06 | 23.51 | 24.06 | 330.99 | -50.95 | 63.78 | 0.7914 | -263.5 | -269.2 | |
|
previous
or next observation for the same group /

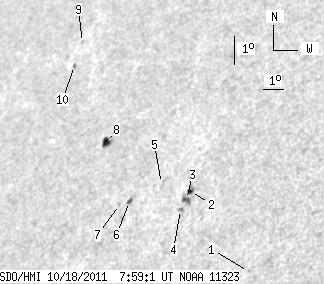

back to the solar disc SDO HMI 2011-10-18 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.74 | 21.18 | 337.63 | -44.31 | 65.72 | 0.7170 | -639.0 | -517.1 | |
| 1.83 | 4.10 | 1.40 | 3.13 | 23.45 | 333.93 | -48.01 | 63.79 | 0.7623 | -731.2 | -648.8 | |
| 1.83 | 5.93 | 1.40 | 4.52 | 23.19 | 333.86 | -48.08 | 64.14 | 0.7623 | -748.3 | -612.9 | |
| 0.00 | 1.83 | 0.00 | 1.40 | 22.87 | 333.73 | -48.22 | 64.59 | 0.7629 | -602.0 | -557.7 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 23.60 | 332.42 | -49.52 | 64.00 | 0.7778 | -330.0 | -451.0 | |
| 2.09 | 2.79 | 1.68 | 2.24 | 22.93 | 331.13 | -50.81 | 65.15 | 0.7889 | 353.4 | 268.4 | |
| 0.00 | 0.87 | 0.00 | 0.71 | 22.81 | 330.68 | -51.26 | 65.41 | 0.7930 | 508.0 | 486.9 | |
| 5.41 | 9.16 | 4.58 | 7.75 | 24.65 | 328.88 | -53.06 | 63.55 | 0.8136 | -523.6 | -368.2 | |
| 0.00 | 1.05 | 0.00 | 0.97 | 27.65 | 325.45 | -56.49 | 60.75 | 0.8487 | 402.0 | 328.8 | |
| 0.00 | 1.92 | 0.00 | 1.78 | 26.90 | 325.54 | -56.40 | 61.60 | 0.8465 | 568.0 | 442.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
