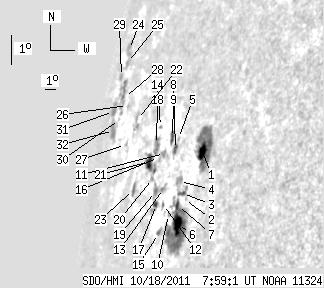

SDO HMI 2011-10-18 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.07 | 252.26 | 88.21 | 521.58 | 11.43 | 305.06 | -76.88 | 79.57 | 0.9682 | -235.3 | -32.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.77 | 47.47 | 11.52 | 69.89 | 12.02 | 310.74 | -71.21 | 79.22 | 0.9440 | -524.4 | -298.4 | |
| 0.00 | 0.61 | 0.00 | 0.94 | 10.48 | 309.90 | -72.04 | 80.82 | 0.9489 | -615.0 | -608.4 | |
| 2.79 | 5.58 | 4.40 | 8.77 | 10.63 | 309.61 | -72.33 | 80.64 | 0.9505 | -506.3 | -425.4 | |
| 0.00 | 5.76 | 0.00 | 9.31 | 10.95 | 309.10 | -72.84 | 80.29 | 0.9531 | 140.0 | 149.0 | |
| 0.00 | 1.05 | 0.00 | 1.77 | 12.18 | 308.15 | -73.79 | 78.96 | 0.9576 | -241.0 | -157.7 | |
| 10.82 | 72.34 | 17.04 | 114.33 | 9.69 | 309.64 | -72.30 | 81.63 | 0.9506 | -556.3 | -231.6 | |
| 2.53 | -6.00 | 4.04 | -6.00 | 10.24 | 309.33 | -72.61 | 81.04 | 0.9521 | -428.6 | 999999 | |
| 2.27 | 4.45 | 3.86 | 7.60 | 11.83 | 308.07 | -73.87 | 79.32 | 0.9581 | 306.5 | 58.3 | |
| 3.58 | 5.15 | 6.31 | 9.08 | 12.15 | 307.49 | -74.45 | 78.97 | 0.9608 | -270.9 | -205.2 | |
| 0.00 | 0.79 | 0.00 | 1.31 | 9.90 | 308.58 | -73.36 | 81.37 | 0.9560 | -79.0 | -47.4 | |
| 0.00 | 3.14 | 0.00 | 5.73 | 11.61 | 306.97 | -74.98 | 79.51 | 0.9634 | 515.0 | 373.8 | |
| 0.00 | 1.75 | 0.00 | 3.03 | 10.14 | 307.88 | -74.06 | 81.08 | 0.9594 | 37.0 | 80.5 | |
| 0.00 | 4.45 | 0.00 | 7.81 | 10.60 | 307.58 | -74.36 | 80.59 | 0.9607 | 584.0 | 449.6 | |
| 0.00 | 1.40 | 0.00 | 2.71 | 12.33 | 305.86 | -76.08 | 78.71 | 0.9681 | -87.0 | -106.3 | |
| 0.61 | 2.18 | 1.06 | 3.79 | 9.25 | 307.86 | -74.08 | 82.00 | 0.9597 | 371.0 | 168.2 | |
| 0.00 | 0.52 | 0.00 | 0.99 | 11.43 | 306.37 | -75.57 | 79.66 | 0.9661 | 397.0 | 410.0 | |
| 1.48 | 6.02 | 2.68 | 11.04 | 10.07 | 307.12 | -74.82 | 81.11 | 0.9630 | -156.9 | 167.9 | |
| 0.00 | 9.25 | 0.00 | 17.97 | 11.78 | 305.83 | -76.11 | 79.28 | 0.9684 | 575.0 | 428.3 | |
| 0.00 | 6.37 | 0.00 | 11.80 | 10.43 | 306.76 | -75.18 | 80.72 | 0.9646 | 374.0 | 325.9 | |
| 0.00 | 1.92 | 0.00 | 3.69 | 10.77 | 306.14 | -75.80 | 80.34 | 0.9673 | 320.0 | 277.9 | |
| 6.98 | 15.18 | 14.00 | 30.24 | 11.21 | 305.39 | -76.55 | 79.83 | 0.9703 | -394.7 | -16.3 | |
| 0.00 | 5.32 | 0.00 | 13.18 | 12.23 | 302.58 | -79.36 | 78.63 | 0.9806 | 535.0 | 438.2 | |
| 3.40 | 4.36 | 7.59 | 9.74 | 10.22 | 303.97 | -77.97 | 80.77 | 0.9761 | 259.6 | 237.2 | |
| 0.00 | 7.24 | 0.00 | 28.43 | 13.95 | 298.03 | -83.91 | 76.61 | 0.9926 | 92.0 | 71.0 | |
| 0.00 | 2.27 | 0.00 | 8.73 | 13.58 | 298.31 | -83.63 | 77.00 | 0.9920 | 48.0 | -2.0 | |
| 0.00 | 1.40 | 0.00 | 4.19 | 12.45 | 300.38 | -81.56 | 78.28 | 0.9872 | 279.0 | 290.8 | |
| 0.00 | 1.13 | 0.00 | 3.11 | 11.36 | 301.47 | -80.47 | 79.45 | 0.9843 | 583.0 | 431.2 | |
| 0.52 | 15.79 | 1.76 | 55.76 | 12.61 | 299.44 | -82.50 | 78.06 | 0.9896 | 367.0 | 147.5 | |
| 0.00 | 2.62 | 0.00 | 11.11 | 13.08 | 297.64 | -84.30 | 77.46 | 0.9935 | -357.0 | -304.8 | |
| 0.00 | 1.13 | 0.00 | 3.88 | 11.92 | 299.39 | -82.55 | 78.74 | 0.9899 | 268.0 | 200.3 | |
| 3.32 | 5.85 | 13.95 | 24.52 | 11.99 | 297.58 | -84.37 | 78.54 | 0.9938 | -413.3 | -411.2 | |
| 0.00 | 9.77 | 0.00 | 37.13 | 11.51 | 298.56 | -83.38 | 79.10 | 0.9918 | -120.0 | -146.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
