group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	239.68	995.51	139.18	582.18	9.65	53.20	31.81	279.61	0.5288	-146.3	-196.0

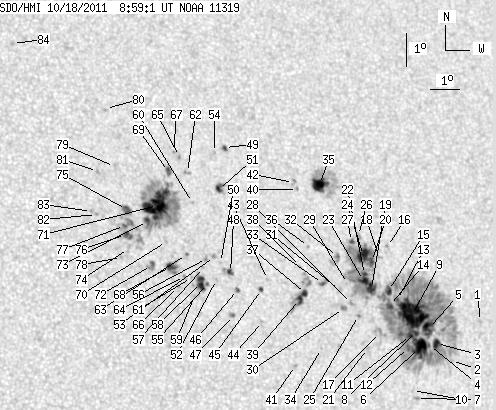

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-18 08:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.13	0.00	0.70	8.17	58.42	37.02	276.10	0.6017	47.0	80.2
2	0.00	1.40	0.00	0.85	7.07	57.22	35.83	274.27	0.5847	11.0	17.9
3	5.85	592.60	3.54	355.10	7.61	56.71	35.32	275.21	0.5776	-669.5	-421.1
4	0.70	-3.00	0.42	-3.00	7.56	56.45	35.06	275.14	0.5739	-575.0	999999
5	9.51	-3.00	5.74	-3.00	8.07	56.46	35.07	276.03	0.5742	-729.3	999999
6	19.81	-3.00	11.91	-3.00	7.52	56.08	34.68	275.08	0.5686	-1121.0	999999
7	0.00	2.18	0.00	1.31	6.01	55.85	34.45	272.40	0.5653	-763.0	-612.0
8	2.27	-3.00	1.36	-3.00	7.98	55.98	34.58	275.89	0.5672	-1100.9	999999
9	48.86	-3.00	29.33	-3.00	8.55	55.92	34.53	276.91	0.5668	-1101.3	999999
10	0.00	1.40	0.00	0.84	6.25	55.72	34.32	272.83	0.5634	-619.0	-523.9
11	2.27	-3.00	1.36	-3.00	7.90	55.78	34.39	275.76	0.5645	-1287.0	999999
12	2.18	-3.00	1.30	-3.00	7.54	55.68	34.28	275.13	0.5628	-947.3	999999
13	1.31	-3.00	0.78	-3.00	9.00	55.42	34.03	277.75	0.5599	-908.9	999999
14	3.58	-3.00	2.13	-3.00	8.83	55.11	33.72	277.48	0.5554	-1130.9	999999
15	4.62	-3.00	2.75	-3.00	9.28	55.12	33.73	278.29	0.5559	-854.8	999999
16	0.00	1.48	0.00	0.88	10.60	55.24	33.85	280.64	0.5592	200.0	192.5
17	0.00	6.81	0.00	4.03	8.05	54.67	33.28	276.09	0.5485	-774.0	-749.2
18	0.00	2.27	0.00	1.35	10.29	54.91	33.51	280.13	0.5540	-633.0	-484.5
19	7.33	-3.00	4.33	-3.00	9.38	54.51	33.12	278.54	0.5473	-1028.0	999999
20	1.22	-3.00	0.72	-3.00	10.18	54.61	33.21	279.99	0.5496	-841.9	999999
21	0.00	1.57	0.00	0.92	7.59	54.20	32.80	275.28	0.5414	-801.0	-645.9
22	1.83	-3.00	1.08	-3.00	9.81	54.31	32.91	279.36	0.5448	-1106.4	999999
23	5.32	-3.00	3.14	-3.00	9.63	54.25	32.86	279.04	0.5438	-1290.0	999999
24	9.07	-3.00	5.36	-3.00	10.38	54.34	32.94	280.39	0.5460	-1172.6	999999
25	0.00	1.48	0.00	0.87	8.59	53.97	32.57	277.16	0.5386	-864.0	-728.6
26	0.00	3.40	0.00	2.01	10.98	54.23	32.84	281.53	0.5454	-458.0	-458.6
27	1.92	-3.00	1.13	-3.00	10.82	53.96	32.56	281.28	0.5412	-835.2	999999
28	0.00	3.05	0.00	1.79	8.97	53.75	32.36	277.87	0.5358	-873.0	-696.9
29	0.00	1.22	0.00	0.72	9.57	53.67	32.28	279.01	0.5353	-847.0	-619.1
30	0.00	2.97	0.00	1.73	8.83	53.45	32.06	277.65	0.5313	-869.0	-828.2
31	0.00	2.70	0.00	1.58	9.38	53.36	31.97	278.69	0.5306	-682.0	-531.3
32	0.61	6.72	0.36	3.92	10.39	53.40	32.01	280.60	0.5325	-953.0	-802.0
33	1.83	3.93	1.06	2.28	9.62	52.78	31.39	279.24	0.5223	-921.4	-756.8
34	0.00	0.87	0.00	0.50	7.68	52.57	31.17	275.52	0.5174	446.0	350.5
35	15.18	51.13	8.86	29.92	12.58	53.03	31.64	284.79	0.5316	981.6	215.5
36	0.00	0.87	0.00	0.50	10.75	52.41	31.01	281.48	0.5186	524.0	329.6
37	2.97	28.01	1.71	16.11	9.35	52.15	30.76	278.82	0.5127	-942.3	-664.3
38	0.00	1.40	0.00	0.80	10.16	52.06	30.67	280.43	0.5125	-713.0	-536.6
39	4.97	-37.00	2.86	-37.00	9.18	51.92	30.53	278.52	0.5091	-1021.0	999999
40	0.00	0.96	0.00	0.56	12.47	52.23	30.83	284.83	0.5198	-799.0	-676.9
41	0.00	1.05	0.00	0.60	7.22	51.62	30.22	274.67	0.5031	821.0	667.2
42	0.00	2.53	0.00	1.46	12.69	52.12	30.72	285.28	0.5187	-621.0	-647.0
43	0.00	1.13	0.00	0.65	9.83	50.87	29.47	280.01	0.4943	514.0	291.2
44	0.00	1.05	0.00	0.59	8.58	50.58	29.19	277.53	0.4884	-741.0	-470.0
45	1.57	2.53	0.89	1.44	9.54	50.63	29.24	279.47	0.4903	636.3	464.9
46	1.57	2.27	0.88	1.28	9.58	49.80	28.41	279.72	0.4779	529.3	516.8
47	1.31	2.97	0.74	1.67	8.81	49.60	28.20	278.14	0.4737	666.9	663.2
48	3.05	6.28	1.72	3.53	10.10	49.61	28.22	280.85	0.4759	586.5	603.3
49	1.92	2.53	1.09	1.44	13.86	49.83	28.44	288.47	0.4895	-808.4	-763.6
50	0.00	0.61	0.00	0.34	10.41	49.30	27.90	281.60	0.4718	677.0	619.4
51	2.36	5.41	1.33	3.05	12.60	49.46	28.07	286.10	0.4799	779.5	722.1
52	0.00	1.40	0.00	0.78	9.91	49.11	27.72	280.58	0.4680	606.0	466.1
53	0.00	1.66	0.00	0.93	10.60	49.11	27.71	282.05	0.4694	944.0	713.8
54	0.00	1.13	0.00	0.64	13.72	49.47	28.07	288.37	0.4837	-789.0	-724.6
55	1.05	16.49	0.58	9.19	9.80	48.79	27.40	280.43	0.4630	638.7	700.5
56	0.00	2.18	0.00	1.22	10.55	48.83	27.44	282.03	0.4650	859.0	721.3
57	0.00	1.05	0.00	0.58	10.29	48.70	27.31	281.50	0.4625	724.0	483.5
58	8.72	-55.00	4.86	-55.00	9.84	48.59	27.20	280.57	0.4600	961.4	999999
59	0.00	0.96	0.00	0.53	9.47	48.32	26.93	279.81	0.4552	857.0	611.6
60	0.00	0.87	0.00	0.49	12.25	48.53	27.13	285.76	0.4650	810.0	595.3
61	0.00	0.96	0.00	0.53	10.01	48.27	26.87	281.01	0.4554	691.0	609.5
62	0.00	2.70	0.00	1.51	13.16	48.46	27.06	287.70	0.4670	512.0	463.4
63	0.00	1.22	0.00	0.68	10.70	48.16	26.77	282.56	0.4553	-732.0	-657.5
64	0.00	1.74	0.00	0.97	10.05	48.03	26.64	281.17	0.4519	997.0	781.0
65	0.00	1.48	0.00	0.83	13.65	48.24	26.85	288.84	0.4656	666.0	570.1
66	0.00	1.05	0.00	0.58	9.76	47.80	26.41	280.59	0.4478	868.0	685.8
67	0.00	1.05	0.00	0.58	13.81	48.06	26.66	289.27	0.4635	693.0	625.2
68	5.15	10.56	2.85	5.84	10.37	47.59	26.19	282.01	0.4457	988.5	521.8
69	3.58	4.10	1.99	2.28	13.22	47.81	26.42	288.14	0.4577	644.0	550.5
70	0.00	1.22	0.00	0.68	11.12	47.52	26.13	283.71	0.4466	-676.0	-468.2
71	42.66	135.50	23.60	75.01	12.21	47.32	25.93	286.20	0.4469	1065.1	324.9
72	0.00	5.41	0.00	2.97	10.42	46.95	25.55	282.35	0.4361	992.0	826.2
73	3.49	-71.00	1.92	-71.00	11.75	46.94	25.54	285.34	0.4396	997.9	999999
74	0.00	3.14	0.00	1.72	10.97	46.22	24.83	283.86	0.4264	737.0	655.7
75	5.85	7.33	3.21	4.02	12.14	46.27	24.87	286.53	0.4308	923.9	819.8
76	2.62	34.11	1.43	18.69	11.39	46.16	24.77	284.87	0.4267	1111.0	780.5
77	1.57	-76.00	0.86	-76.00	11.66	46.15	24.76	285.50	0.4274	1123.9	999999
78	0.00	1.13	0.00	0.62	10.71	45.97	24.57	283.36	0.4217	799.0	624.9
79	0.00	1.74	0.00	0.96	13.45	46.00	24.61	289.64	0.4318	725.0	584.7
80	0.00	0.44	0.00	0.24	15.21	45.90	24.51	293.58	0.4386	553.0	624.6
81	0.00	2.44	0.00	1.33	13.32	45.41	24.02	289.71	0.4225	853.0	725.8
82	0.00	1.22	0.00	0.66	12.03	45.25	23.86	286.81	0.4150	984.0	845.4
83	0.00	1.66	0.00	0.90	12.12	45.09	23.70	287.12	0.4129	993.0	746.9
84	0.00	1.66	0.00	0.90	17.29	43.01	21.62	300.67	0.4107	836.0	650.6

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
