SDO HMI 2011-10-18 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.84 | 44.32 | 27.36 | 78.50 | 19.92 | 95.52 | 74.68 | 289.16 | 0.9605 | -64.5 | -14.3 | |
|
previous
or next observation for the same group /

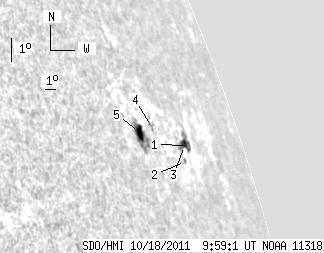

back to the solar disc SDO HMI 2011-10-18 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 15.27 | 2.78 | 31.39 | 19.43 | 98.51 | 77.66 | 288.67 | 0.9735 | 250.3 | -340.1 | |
| 0.00 | 1.83 | 0.00 | 3.59 | 19.03 | 97.32 | 76.47 | 288.24 | 0.9688 | -268.0 | -316.0 | |
| 7.07 | -1.00 | 14.37 | -1.00 | 19.49 | 97.86 | 77.02 | 288.71 | 0.9710 | -517.6 | 999999 | |
| 0.00 | 3.40 | 0.00 | 5.79 | 20.37 | 94.85 | 74.00 | 289.61 | 0.9579 | 159.0 | -5.2 | |
| 6.46 | 23.82 | 10.21 | 37.73 | 20.31 | 93.42 | 72.58 | 289.56 | 0.9510 | 485.5 | 191.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
