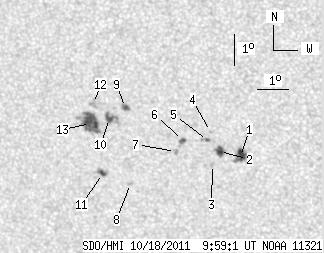

SDO HMI 2011-10-18 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.71 | 90.92 | 30.50 | 50.71 | -14.60 | 2.36 | -18.48 | 138.13 | 0.4612 | -138.7 | -65.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.42 | 12.13 | 5.18 | 6.67 | -15.17 | 5.55 | -15.29 | 144.11 | 0.4361 | 906.3 | 736.2 | |
| 6.37 | 6.98 | 3.51 | 3.85 | -15.03 | 4.89 | -15.96 | 142.75 | 0.4405 | 954.1 | 687.7 | |
| 0.00 | 2.01 | 0.00 | 1.11 | -15.45 | 4.63 | -16.22 | 142.91 | 0.4482 | 679.0 | 525.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -14.40 | 4.65 | -16.20 | 141.43 | 0.4352 | 742.0 | 652.9 | |
| 1.40 | 3.14 | 0.77 | 1.73 | -14.69 | 4.53 | -16.32 | 141.65 | 0.4398 | 583.8 | 562.9 | |
| 2.27 | 4.45 | 1.26 | 2.46 | -14.71 | 3.72 | -17.13 | 140.34 | 0.4481 | 666.1 | 536.6 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -15.07 | 3.47 | -17.38 | 140.44 | 0.4549 | 774.0 | 614.8 | |
| 0.00 | 2.01 | 0.00 | 1.13 | -16.15 | 1.90 | -18.95 | 139.55 | 0.4828 | -789.0 | -696.5 | |
| 3.14 | 4.54 | 1.75 | 2.52 | -13.72 | 1.96 | -18.89 | 136.05 | 0.4551 | -926.1 | -821.1 | |
| 5.50 | 11.34 | 3.07 | 6.34 | -14.09 | 1.40 | -19.44 | 135.80 | 0.4651 | -939.3 | -681.7 | |
| 2.27 | 6.28 | 1.29 | 3.56 | -15.86 | 1.00 | -19.84 | 137.85 | 0.4886 | 859.0 | 597.3 | |
| 0.00 | 5.06 | 0.00 | 2.83 | -13.63 | 0.92 | -19.93 | 134.39 | 0.4654 | -785.0 | -665.3 | |
| 24.34 | 29.66 | 13.67 | 16.67 | -14.27 | 0.76 | -20.08 | 135.16 | 0.4739 | -839.8 | -467.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
