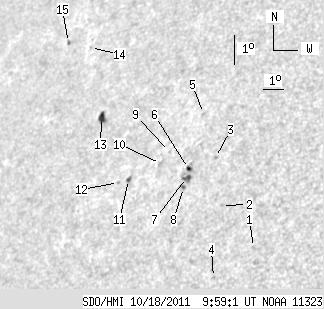

SDO HMI 2011-10-18 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.35 | 31.49 | 8.97 | 24.42 | 23.67 | 332.03 | -48.81 | 63.70 | 0.7698 | -372.2 | -290.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 1.09 | 21.22 | 337.77 | -43.08 | 65.27 | 0.7034 | -633.0 | -507.6 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 22.41 | 335.86 | -44.98 | 64.25 | 0.7279 | -496.0 | -476.4 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 23.88 | 334.95 | -45.90 | 62.60 | 0.7420 | -665.0 | -550.7 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 20.19 | 336.37 | -44.48 | 67.11 | 0.7162 | -639.0 | -525.0 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 25.20 | 333.73 | -47.12 | 61.28 | 0.7583 | -455.0 | -365.0 | |
| 1.83 | 3.14 | 1.37 | 2.35 | 23.45 | 333.86 | -46.99 | 63.49 | 0.7519 | -682.2 | -697.7 | |
| 2.97 | 6.80 | 2.21 | 5.09 | 23.17 | 333.90 | -46.95 | 63.85 | 0.7508 | -705.4 | -569.2 | |
| 0.44 | 1.92 | 0.33 | 1.43 | 22.85 | 333.90 | -46.95 | 64.26 | 0.7499 | -700.6 | -540.5 | |
| 0.00 | 0.87 | 0.00 | 0.67 | 23.91 | 332.71 | -48.13 | 63.23 | 0.7648 | -509.0 | -409.6 | |
| 0.00 | 2.36 | 0.00 | 1.81 | 23.51 | 332.47 | -48.38 | 63.80 | 0.7662 | -440.0 | -390.8 | |
| 0.70 | 2.18 | 0.55 | 1.71 | 22.91 | 331.17 | -49.67 | 64.90 | 0.7777 | 424.1 | 350.4 | |
| 0.00 | 1.13 | 0.00 | 0.90 | 22.78 | 330.73 | -50.11 | 65.17 | 0.7818 | 593.0 | 526.2 | |
| 5.06 | 6.37 | 4.20 | 5.28 | 24.72 | 328.78 | -52.06 | 63.24 | 0.8046 | -510.8 | -552.3 | |
| 0.00 | 0.96 | 0.00 | 0.84 | 26.84 | 326.80 | -54.05 | 61.15 | 0.8268 | 567.0 | 467.0 | |
| 0.35 | 1.22 | 0.31 | 1.10 | 26.90 | 325.47 | -55.38 | 61.37 | 0.8382 | 443.5 | 462.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
