SDO HMI 2011-10-18 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.56 | 396.31 | 47.31 | 238.92 | -12.36 | 49.01 | 29.81 | 238.45 | 0.5711 | -202.6 | -112.0 | |
|
previous
or next observation for the same group /

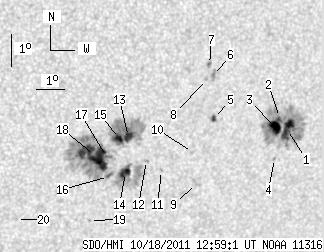

back to the solar disc SDO HMI 2011-10-18 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.69 | 123.30 | 8.62 | 77.47 | -12.11 | 53.18 | 33.98 | 242.18 | 0.6201 | 805.2 | 348.9 | |
| 0.70 | -1.00 | 0.44 | -1.00 | -11.72 | 52.83 | 33.63 | 242.51 | 0.6135 | 878.0 | 999999 | |
| 9.77 | -1.00 | 6.12 | -1.00 | -12.03 | 52.72 | 33.52 | 241.99 | 0.6140 | 1131.5 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -13.00 | 52.83 | 33.63 | 240.65 | 0.6214 | 586.0 | 495.1 | |
| 2.44 | 4.01 | 1.49 | 2.44 | -11.62 | 50.43 | 31.22 | 240.90 | 0.5833 | 796.0 | 480.1 | |
| 0.00 | 4.36 | 0.00 | 2.63 | -10.28 | 50.27 | 31.06 | 242.87 | 0.5727 | 894.0 | 696.1 | |
| 0.00 | 2.79 | 0.00 | 1.68 | -9.93 | 50.09 | 30.88 | 243.29 | 0.5682 | 883.0 | 739.2 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -10.39 | 50.03 | 30.83 | 242.52 | 0.5704 | 849.0 | 696.0 | |
| 0.00 | 3.58 | 0.00 | 2.19 | -13.64 | 50.09 | 30.89 | 237.61 | 0.5930 | 666.0 | 420.8 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -12.65 | 49.81 | 30.61 | 238.85 | 0.5827 | 674.0 | 522.2 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -13.17 | 48.78 | 29.58 | 237.21 | 0.5739 | -564.0 | -471.9 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -12.82 | 48.21 | 29.00 | 237.22 | 0.5645 | -566.0 | -477.8 | |
| 5.93 | 67.05 | 3.51 | 39.63 | -12.03 | 47.48 | 28.28 | 237.79 | 0.5498 | -920.0 | -506.6 | |
| 7.32 | 44.03 | 4.37 | 26.32 | -13.17 | 47.52 | 28.31 | 236.07 | 0.5588 | -872.9 | -68.3 | |
| 3.75 | -13.00 | 2.21 | -13.00 | -12.08 | 47.18 | 27.97 | 237.43 | 0.5464 | -1116.5 | 999999 | |
| 1.13 | 138.29 | 0.67 | 81.19 | -13.26 | 46.94 | 27.73 | 235.37 | 0.5526 | -577.7 | -473.5 | |
| 0.87 | -16.00 | 0.51 | -16.00 | -12.63 | 46.79 | 27.59 | 236.21 | 0.5459 | -516.1 | 999999 | |
| 32.96 | -16.00 | 19.37 | -16.00 | -12.58 | 46.37 | 27.17 | 235.89 | 0.5403 | -1027.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -14.63 | 46.45 | 27.25 | 232.85 | 0.5580 | -734.0 | -596.2 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -14.49 | 43.93 | 24.72 | 230.39 | 0.5278 | -749.0 | -574.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
