Sunspot Group 11319

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11319	225.68	1021.17	133.95	611.85	9.81	53.07	33.87	279.58	0.5587	-140.1	-176.4

previous or next observation for the same group / back to the solar disc

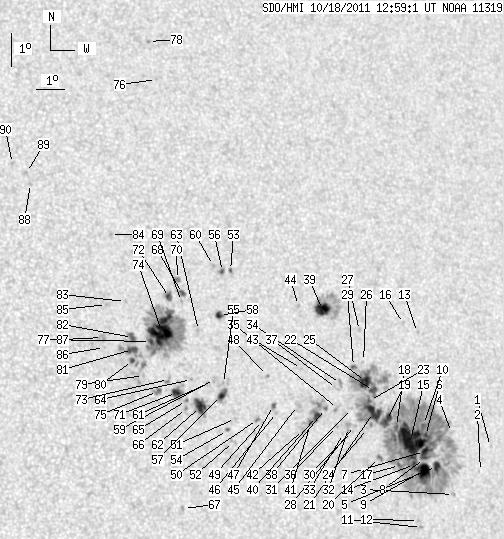

SDO HMI 2011-10-18 12:59:01 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.13	0.00	0.73	8.11	58.91	39.71	275.93	0.6382	370.0	385.6
2	0.00	0.44	0.00	0.28	7.39	58.44	39.24	274.80	0.6318	-373.0	-382.4
3	0.00	1.83	0.00	1.15	6.77	57.33	38.13	273.80	0.6168	-662.0	-481.5
4	0.00	1.57	0.00	0.99	8.62	57.45	38.25	276.80	0.6187	105.0	101.4
5	5.58	607.24	3.48	374.07	7.64	56.77	37.57	275.23	0.6090	-668.3	-394.0
6	1.31	-5.00	0.81	-5.00	8.59	56.45	37.25	276.81	0.6050	-582.9	999999
7	3.23	-5.00	2.00	-5.00	8.11	56.36	37.16	276.03	0.6036	-901.5	999999
8	1.13	-5.00	0.70	-5.00	7.91	56.34	37.14	275.68	0.6032	-751.2	999999
9	13.95	-5.00	8.64	-5.00	7.55	56.27	37.06	275.09	0.6021	-1077.7	999999
10	0.78	-5.00	0.49	-5.00	8.92	56.42	37.21	277.36	0.6047	-498.2	999999
11	0.00	1.57	0.00	0.97	5.86	56.04	36.84	272.26	0.5991	-738.0	-556.3
12	0.00	1.13	0.00	0.70	6.07	55.94	36.74	272.61	0.5977	-654.0	-509.1
13	0.00	1.13	0.00	0.71	11.68	56.57	37.37	281.89	0.6096	-654.0	-570.8
14	2.01	-5.00	1.24	-5.00	7.75	55.95	36.74	275.43	0.5977	-1138.4	999999
15	46.30	-5.00	28.53	-5.00	8.47	55.87	36.67	276.65	0.5969	-1113.2	999999
16	0.00	1.05	0.00	0.65	11.98	56.08	36.88	282.47	0.6035	-669.0	-613.5
17	2.01	-5.00	1.23	-5.00	7.75	55.38	36.18	275.45	0.5898	-903.4	999999
18	1.22	-5.00	0.75	-5.00	8.92	55.40	36.19	277.44	0.5905	-943.3	999999
19	9.50	-5.00	5.80	-5.00	9.12	55.04	35.84	277.81	0.5858	-953.9	999999
20	0.70	2.70	0.42	1.64	8.03	54.66	35.46	275.96	0.5798	-931.9	-783.6
21	13.34	-5.00	8.10	-5.00	9.39	54.59	35.39	278.31	0.5796	-1097.1	999999
22	3.92	-5.00	2.38	-5.00	10.04	54.67	35.47	279.43	0.5814	-817.7	999999
23	0.70	-5.00	0.42	-5.00	9.75	54.49	35.28	278.96	0.5785	-1066.9	999999
24	0.00	0.96	0.00	0.58	8.92	54.31	35.11	277.53	0.5754	-730.0	-631.5
25	10.55	-5.00	6.39	-5.00	10.33	54.41	35.21	279.96	0.5781	-1118.6	999999
26	0.00	0.78	0.00	0.48	10.93	54.41	35.21	281.00	0.5789	-567.0	-482.4
27	0.00	1.48	0.00	0.90	11.86	54.40	35.19	282.61	0.5802	-809.0	-645.8
28	0.00	1.40	0.00	0.84	9.04	53.85	34.64	277.78	0.5688	-790.0	-639.8
29	2.01	-5.00	1.21	-5.00	10.80	54.02	34.82	280.84	0.5733	-781.3	999999
30	0.00	0.35	0.00	0.21	8.86	53.75	34.55	277.48	0.5674	-746.0	-791.2
31	0.00	0.78	0.00	0.47	9.55	53.79	34.59	278.69	0.5685	-775.0	-587.3
32	0.00	4.71	0.00	2.82	8.99	53.62	34.42	277.71	0.5656	-770.0	-744.4
33	0.00	0.78	0.00	0.47	8.82	53.42	34.22	277.43	0.5626	-809.0	-614.6
34	0.00	3.40	0.00	2.04	10.32	53.48	34.28	280.09	0.5650	-886.0	-743.0
35	0.00	2.35	0.00	1.41	9.58	53.28	34.08	278.80	0.5613	-953.0	-827.4
36	0.00	1.40	0.00	0.83	9.04	53.19	33.98	277.85	0.5594	-529.0	-506.1
37	0.00	2.53	0.00	1.51	10.18	53.32	34.11	279.86	0.5625	-748.0	-577.1
38	1.48	24.33	0.88	14.40	9.60	52.85	33.64	278.90	0.5551	-885.8	-723.0
39	12.82	46.91	7.67	28.16	12.57	53.13	33.92	284.13	0.5639	972.1	180.8
40	4.01	-38.00	2.37	-38.00	9.38	52.50	33.29	278.54	0.5498	-1007.8	999999
41	1.48	-38.00	0.88	-38.00	9.18	52.26	33.05	278.21	0.5462	-933.2	999999
42	0.00	2.09	0.00	1.23	9.02	51.99	32.78	277.94	0.5421	-446.0	-530.3
43	0.00	0.78	0.00	0.46	10.84	52.12	32.92	281.27	0.5464	-740.0	-619.8
44	0.00	1.48	0.00	0.88	12.73	52.27	33.07	284.66	0.5523	-790.0	-674.6
45	0.00	2.53	0.00	1.49	9.74	51.85	32.65	279.30	0.5409	-302.0	-317.3
46	0.00	0.78	0.00	0.46	9.57	51.08	31.87	279.10	0.5294	538.0	384.4
47	2.01	2.35	1.17	1.37	9.79	50.99	31.79	279.52	0.5285	572.4	589.5
48	0.00	1.31	0.00	0.76	10.70	50.88	31.68	281.26	0.5282	495.0	484.9
49	0.00	0.78	0.00	0.45	9.36	50.56	31.35	278.78	0.5215	534.0	558.3
50	0.00	1.48	0.00	0.86	9.40	50.38	31.18	278.88	0.5190	888.0	753.7
51	0.00	1.48	0.00	0.85	9.47	49.61	30.41	279.14	0.5077	-139.0	28.2
52	0.00	3.14	0.00	1.80	8.78	49.48	30.28	277.81	0.5049	714.0	472.1
53	0.87	1.92	0.51	1.11	13.91	49.98	30.78	287.59	0.5231	-507.0	-578.5
54	1.05	1.48	0.60	0.85	9.12	49.30	30.10	278.51	0.5026	608.2	522.6
55	0.00	0.96	0.00	0.55	10.53	49.30	30.10	281.30	0.5048	639.0	505.2
56	1.83	2.01	1.06	1.16	13.89	49.69	30.49	287.67	0.5190	-961.0	-746.3
57	3.05	10.64	1.75	6.09	10.18	49.19	29.99	280.62	0.5026	677.6	272.8
58	3.58	4.97	2.06	2.86	12.58	49.40	30.20	285.27	0.5110	735.7	488.7
59	0.00	2.53	0.00	1.45	10.67	49.00	29.80	281.64	0.5006	760.0	508.1
60	0.00	1.31	0.00	0.76	14.09	49.40	30.20	288.17	0.5155	-788.0	-616.3
61	0.00	1.66	0.00	0.94	10.56	48.74	29.54	281.49	0.4966	828.0	569.7
62	10.38	17.09	5.89	9.70	9.88	48.43	29.23	280.20	0.4907	936.9	643.4
63	0.00	1.57	0.00	0.90	12.16	48.61	29.41	284.73	0.4983	789.0	535.2
64	0.00	1.05	0.00	0.59	10.71	48.20	29.00	281.93	0.4888	-735.0	-516.8
65	0.00	1.40	0.00	0.79	10.09	47.96	28.76	280.72	0.4841	911.0	842.9
66	0.00	1.31	0.00	0.74	9.85	47.94	28.74	280.23	0.4833	947.0	784.8
67	0.00	1.48	0.00	0.83	6.87	47.60	28.40	274.04	0.4753	645.0	534.7
68	2.62	4.27	1.49	2.43	13.30	48.19	28.99	287.14	0.4956	662.8	494.8
69	0.00	1.40	0.00	0.79	13.06	48.13	28.92	286.69	0.4939	491.0	460.9
70	0.00	3.23	0.00	1.84	13.73	48.07	28.87	288.04	0.4953	857.0	641.4
71	5.84	13.60	3.29	7.67	10.34	47.64	28.44	281.33	0.4798	855.4	149.0
72	4.01	7.15	2.27	4.05	13.20	47.72	28.52	287.14	0.4885	724.5	304.0
73	0.00	3.23	0.00	1.82	10.74	47.41	28.20	282.23	0.4771	-646.0	-622.1
74	37.23	143.79	20.99	81.15	12.22	47.33	28.12	285.32	0.4796	1083.9	355.2
75	0.00	5.14	0.00	2.88	10.40	46.99	27.79	281.63	0.4701	945.0	756.5
76	0.00	1.05	0.00	0.61	19.83	48.35	29.14	299.29	0.5274	483.0	426.2
77	2.01	-74.00	1.13	-74.00	11.91	46.91	27.71	284.83	0.4726	1081.2	999999
78	0.00	1.40	0.00	0.82	21.01	48.30	29.10	301.38	0.5338	775.0	598.4
79	0.00	1.13	0.00	0.63	10.90	46.56	27.36	282.82	0.4647	673.0	586.6
80	2.18	41.77	1.22	23.31	11.37	46.23	27.03	283.93	0.4610	1136.4	734.5
81	6.19	-80.00	3.45	-80.00	11.70	46.27	27.06	284.62	0.4624	1064.0	999999
82	4.80	-80.00	2.68	-80.00	12.06	46.31	27.10	285.38	0.4640	900.4	999999
83	0.00	1.31	0.00	0.73	13.15	46.19	26.99	287.73	0.4659	737.0	606.5
84	0.00	1.40	0.00	0.78	15.19	45.93	26.73	292.09	0.4704	852.0	611.8
85	0.00	1.05	0.00	0.58	13.08	45.53	26.33	287.92	0.4559	901.0	701.9
86	0.00	0.70	0.00	0.39	11.80	45.32	26.12	285.23	0.4485	842.0	754.4
87	0.00	4.53	0.00	2.51	12.10	45.28	26.08	285.91	0.4489	835.0	752.2
88	0.00	1.31	0.00	0.72	16.84	43.40	24.20	297.33	0.4435	701.0	529.2
89	0.00	0.96	0.00	0.53	17.18	43.31	24.11	298.11	0.4443	727.0	567.9
90	0.00	1.22	0.00	0.67	17.47	42.87	23.67	299.10	0.4402	854.0	644.9

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
