Sunspot Group 11319

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11319	233.33	1033.27	139.35	622.55	9.77	53.01	34.35	279.44	0.5654	-104.7	-152.0

previous or next observation for the same group / back to the solar disc

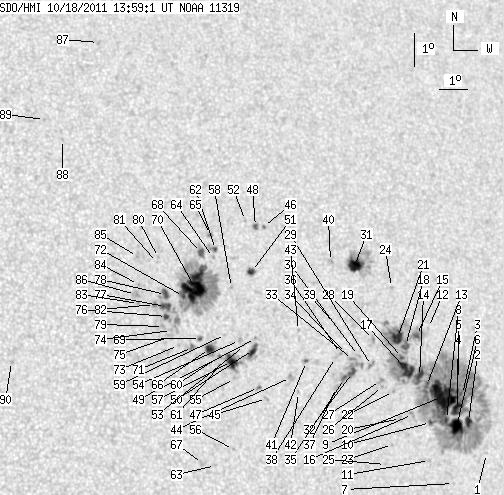

SDO HMI 2011-10-18 13:59:01 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.78	0.00	0.50	6.67	57.39	38.73	273.65	0.6250	-632.0	-465.0
2	4.80	613.50	3.01	380.78	7.66	56.79	38.14	275.26	0.6169	-631.9	-373.6
3	0.26	-2.00	0.16	-2.00	8.48	56.65	38.00	276.60	0.6152	-591.7	999999
4	6.97	-2.00	4.36	-2.00	8.05	56.41	37.76	275.89	0.6118	-804.2	999999
5	1.48	-2.00	0.93	-2.00	8.58	56.47	37.82	276.77	0.6128	-608.4	999999
6	15.00	-2.00	9.36	-2.00	7.54	56.32	37.67	275.07	0.6104	-1048.0	999999
7	0.00	0.78	0.00	0.49	5.85	56.05	37.40	272.28	0.6069	-629.0	-542.2
8	1.48	-2.00	0.92	-2.00	7.77	55.96	37.31	275.46	0.6055	-1165.9	999999
9	45.25	-2.00	28.09	-2.00	8.47	55.89	37.23	276.61	0.6047	-1110.3	999999
10	2.01	-2.00	1.24	-2.00	7.72	55.35	36.70	275.38	0.5971	-834.0	999999
11	0.00	1.22	0.00	0.75	6.59	55.21	36.56	273.48	0.5950	-680.0	-465.6
12	0.00	0.70	0.00	0.43	10.56	55.62	36.97	280.10	0.6027	675.0	532.9
13	3.23	-2.00	1.99	-2.00	8.83	55.32	36.67	277.25	0.5971	-977.6	999999
14	8.46	-2.00	5.20	-2.00	9.11	55.09	36.44	277.75	0.5941	-917.3	999999
15	3.31	-2.00	2.04	-2.00	10.34	55.13	36.48	279.81	0.5958	-404.6	999999
16	0.00	2.18	0.00	1.33	8.00	54.70	36.05	275.88	0.5881	-879.0	-838.4
17	13.95	-2.00	8.53	-2.00	9.35	54.63	35.98	278.19	0.5879	-1093.5	999999
18	4.80	-2.00	2.93	-2.00	10.07	54.68	36.03	279.41	0.5893	-813.0	999999
19	1.66	-2.00	1.01	-2.00	9.72	54.53	35.87	278.83	0.5867	-1031.6	999999
20	0.00	2.18	0.00	1.32	7.90	54.25	35.59	275.73	0.5816	-685.0	-600.6
21	9.76	-2.00	5.96	-2.00	10.32	54.42	35.76	279.88	0.5858	-1101.2	999999
22	0.00	0.70	0.00	0.42	8.72	54.07	35.42	277.16	0.5796	-752.0	-656.6
23	0.00	1.05	0.00	0.63	7.14	53.88	35.23	274.43	0.5763	-696.0	-544.3
24	0.00	1.05	0.00	0.64	11.83	54.40	35.75	282.44	0.5878	-715.0	-607.7
25	0.00	0.96	0.00	0.58	6.56	53.57	34.92	273.41	0.5719	-763.0	-566.3
26	0.00	1.13	0.00	0.68	8.89	53.68	35.03	277.49	0.5742	-823.0	-673.3
27	0.00	3.40	0.00	2.05	9.08	53.63	34.98	277.82	0.5736	-822.0	-741.3
28	0.00	2.44	0.00	1.47	10.31	53.52	34.87	279.99	0.5733	-940.0	-784.1
29	0.00	4.01	0.00	2.41	9.54	53.35	34.70	278.66	0.5700	-911.0	-754.3
30	0.00	1.48	0.00	0.89	9.87	52.91	34.26	279.29	0.5641	-763.0	-677.6
31	10.98	46.03	6.62	27.81	12.57	53.13	34.48	283.99	0.5716	993.1	220.0
32	5.06	19.79	3.02	11.80	9.37	52.63	33.98	278.44	0.5597	-946.2	-725.6
33	0.00	2.53	0.00	1.51	9.76	52.68	34.02	279.13	0.5607	-837.0	-778.1
34	0.00	1.13	0.00	0.68	9.95	52.48	33.83	279.50	0.5581	-794.0	-659.2
35	2.01	-32.00	1.19	-32.00	9.21	52.32	33.67	278.19	0.5551	-921.7	999999
36	0.00	0.78	0.00	0.47	9.96	52.26	33.61	279.56	0.5550	-926.0	-816.8
37	0.00	3.14	0.00	1.86	8.96	52.01	33.35	277.76	0.5503	-515.0	-453.4
38	0.00	0.96	0.00	0.57	9.85	52.07	33.41	279.39	0.5521	-831.0	-708.1
39	0.00	0.78	0.00	0.47	10.87	52.16	33.50	281.21	0.5548	-759.0	-606.3
40	0.00	2.09	0.00	1.25	12.73	52.27	33.61	284.51	0.5599	-626.0	-572.8
41	1.31	1.74	0.77	1.02	9.79	51.01	32.36	279.43	0.5368	666.9	599.4
42	0.00	1.22	0.00	0.71	8.88	50.63	31.98	277.77	0.5302	488.0	389.4
43	0.00	1.31	0.00	0.77	10.73	50.83	32.18	281.22	0.5356	497.0	457.1
44	0.00	3.57	0.00	2.08	9.34	50.39	31.74	278.68	0.5272	920.0	622.3
45	0.00	1.83	0.00	1.06	8.76	49.49	30.83	277.68	0.5132	667.0	500.1
46	1.22	1.31	0.71	0.76	13.91	50.00	31.35	287.37	0.5312	-629.7	-531.0
47	0.00	1.92	0.00	1.10	9.10	49.24	30.58	278.38	0.5098	600.0	563.9
48	2.35	3.23	1.37	1.88	13.92	49.72	31.06	287.51	0.5272	-947.1	-773.3
49	0.00	0.87	0.00	0.50	10.57	49.28	30.63	281.25	0.5127	689.0	555.0
50	6.02	34.79	3.46	19.91	10.24	49.17	30.52	280.64	0.5106	649.8	413.2
51	3.75	4.88	2.17	2.82	12.58	49.38	30.73	285.09	0.5186	746.8	509.8
52	0.00	1.31	0.00	0.76	14.12	49.39	30.73	288.01	0.5232	-768.0	-477.1
53	0.00	0.87	0.00	0.50	10.38	48.87	30.22	280.97	0.5063	629.0	566.8
54	0.00	1.92	0.00	1.10	10.53	48.71	30.06	281.31	0.5043	810.0	586.2
55	0.00	1.05	0.00	0.60	9.41	48.42	29.77	279.13	0.4982	660.0	516.2
56	0.00	0.87	0.00	0.50	7.29	48.21	29.56	274.87	0.4931	681.0	581.9
57	9.59	-50.00	5.47	-50.00	9.92	48.37	29.72	280.17	0.4981	979.0	999999
58	0.00	0.52	0.00	0.30	12.13	48.62	29.96	284.49	0.5064	736.0	632.0
59	0.00	0.87	0.00	0.50	10.74	48.24	29.59	281.83	0.4977	-566.0	-406.7
60	0.61	1.83	0.35	1.04	10.09	47.97	29.31	280.60	0.4924	884.1	851.9
61	0.00	1.39	0.00	0.79	9.82	47.94	29.29	280.06	0.4915	899.0	805.5
62	1.66	4.71	0.95	2.69	13.30	48.20	29.55	286.92	0.5037	614.2	526.5
63	0.00	1.13	0.00	0.64	6.84	47.56	28.91	273.98	0.4831	609.0	494.9
64	0.00	1.05	0.00	0.60	13.06	48.10	29.45	286.49	0.5015	642.0	514.8
65	0.00	2.27	0.00	1.30	13.76	48.09	29.44	287.86	0.5035	757.0	663.0
66	5.58	10.20	3.16	5.78	10.34	47.65	28.99	281.19	0.4880	856.5	432.1
67	0.00	3.84	0.00	2.16	6.92	47.12	28.46	274.16	0.4763	670.0	543.4
68	4.71	6.97	2.68	3.97	13.23	47.70	29.05	286.99	0.4962	765.3	301.5
69	1.83	2.01	1.04	1.13	10.66	47.36	28.71	281.91	0.4845	-778.1	-735.5
70	39.06	158.50	22.14	89.90	12.22	47.33	28.68	285.12	0.4878	1077.7	321.9
71	0.00	3.57	0.00	2.01	10.40	47.06	28.41	281.46	0.4794	995.0	766.9
72	1.22	-70.00	0.69	-70.00	11.94	46.91	28.26	284.69	0.4809	1117.9	999999
73	0.00	1.05	0.00	0.59	10.48	46.59	27.93	281.76	0.4725	635.0	491.3
74	0.00	1.13	0.00	0.64	10.94	46.39	27.74	282.79	0.4705	767.0	608.4
75	0.00	4.36	0.00	2.44	10.76	46.34	27.69	282.43	0.4693	524.0	598.0
76	2.53	32.00	1.42	17.96	11.37	46.26	27.61	283.73	0.4697	1087.6	700.1
77	6.36	-76.00	3.57	-76.00	11.67	46.26	27.61	284.37	0.4704	1055.3	999999
78	5.06	-76.00	2.84	-76.00	12.03	46.30	27.65	285.10	0.4720	903.5	999999
79	0.00	2.35	0.00	1.32	11.07	46.13	27.48	283.15	0.4669	905.0	675.8
80	0.00	1.05	0.00	0.59	13.15	46.19	27.54	287.48	0.4740	705.0	555.2
81	0.00	0.70	0.00	0.39	13.00	46.14	27.48	287.20	0.4727	798.0	652.0
82	0.00	2.44	0.00	1.36	11.75	45.89	27.24	284.67	0.4651	1090.0	929.6
83	0.00	1.05	0.00	0.58	11.80	45.35	26.70	285.00	0.4572	956.0	788.8
84	0.00	0.78	0.00	0.44	12.37	45.41	26.76	286.19	0.4598	798.0	626.6
85	0.00	0.96	0.00	0.54	13.21	45.47	26.82	287.95	0.4636	913.0	687.4
86	0.00	4.45	0.00	2.47	12.07	45.28	26.62	285.62	0.4569	809.0	772.2
87	0.00	1.39	0.00	0.79	19.76	45.09	26.43	301.21	0.4919	686.0	546.8
88	0.00	1.22	0.00	0.68	16.85	43.37	24.71	296.93	0.4507	672.0	579.8
89	0.00	0.87	0.00	0.48	17.48	42.84	24.19	298.67	0.4472	868.0	708.3
90	0.00	1.13	0.00	0.61	10.23	40.96	22.31	283.19	0.3853	663.0	621.3

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
