SDO HMI 2011-10-18 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.68 | 176.68 | 19.13 | 109.87 | -26.97 | 36.19 | 18.09 | 207.33 | 0.6061 | 657.3 | 263.1 | |
|
previous
or next observation for the same group /

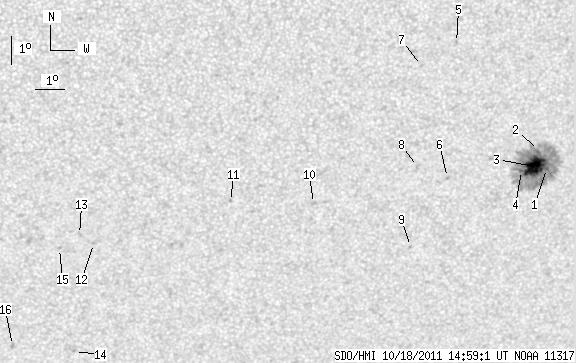

back to the solar disc SDO HMI 2011-10-18 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.66 | 159.09 | 1.04 | 99.14 | -26.91 | 37.60 | 19.50 | 209.19 | 0.6126 | 403.8 | 296.2 | |
| 0.35 | -1.00 | 0.22 | -1.00 | -26.26 | 37.20 | 19.10 | 209.27 | 0.6023 | 1049.8 | 999999 | |
| 26.67 | -1.00 | 16.62 | -1.00 | -26.83 | 37.16 | 19.06 | 208.72 | 0.6086 | 1141.7 | 999999 | |
| 2.00 | -1.00 | 1.25 | -1.00 | -26.95 | 36.72 | 18.62 | 208.06 | 0.6072 | 819.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -22.44 | 33.84 | 15.73 | 208.22 | 0.5321 | 802.0 | 649.7 | |
| 0.00 | 1.39 | 0.00 | 0.86 | -27.12 | 34.15 | 16.04 | 204.59 | 0.5933 | 293.0 | 352.6 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -23.19 | 32.75 | 14.64 | 205.88 | 0.5345 | 566.0 | 470.4 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -26.70 | 33.04 | 14.94 | 203.42 | 0.5817 | 811.0 | 648.1 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -29.58 | 33.21 | 15.11 | 201.57 | 0.6190 | 548.0 | 516.7 | |
| 0.00 | 2.79 | 0.00 | 1.69 | -27.93 | 29.60 | 11.50 | 197.72 | 0.5807 | 634.0 | 571.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -27.81 | 26.74 | 8.64 | 193.58 | 0.5680 | -669.0 | -592.7 | |
| 0.00 | 1.39 | 0.00 | 0.84 | -29.27 | 22.14 | 4.04 | 186.13 | 0.5774 | -620.0 | -463.9 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -28.94 | 21.65 | 3.55 | 185.45 | 0.5719 | -772.0 | -611.8 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -33.31 | 21.64 | 3.53 | 184.69 | 0.6327 | -669.0 | -595.2 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -29.45 | 20.98 | 2.88 | 184.35 | 0.5783 | -734.0 | -545.2 | |
| 0.00 | 2.44 | 0.00 | 1.55 | -33.07 | 19.42 | 1.31 | 181.76 | 0.6277 | -772.0 | -634.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
