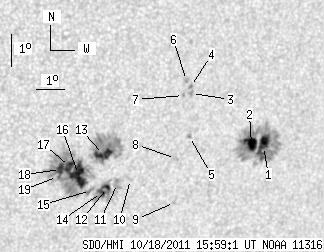

SDO HMI 2011-10-18 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.97 | 376.88 | 48.52 | 231.19 | -12.35 | 49.04 | 31.48 | 239.85 | 0.5913 | -162.1 | -141.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.69 | 119.23 | 11.38 | 76.47 | -12.15 | 53.21 | 35.65 | 243.24 | 0.6405 | 737.8 | 315.5 | |
| 10.81 | -1.00 | 6.91 | -1.00 | -12.03 | 52.74 | 35.18 | 243.11 | 0.6342 | 1106.0 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.77 | -10.34 | 50.30 | 32.75 | 243.99 | 0.5944 | 753.0 | 650.7 | |
| 0.00 | 1.74 | 0.00 | 1.07 | -10.12 | 50.24 | 32.69 | 244.29 | 0.5923 | 867.0 | 739.3 | |
| 0.00 | 2.09 | 0.00 | 1.30 | -11.68 | 50.40 | 32.85 | 242.03 | 0.6037 | 878.0 | 703.6 | |
| 0.00 | 2.44 | 0.00 | 1.49 | -9.92 | 50.07 | 32.52 | 244.48 | 0.5891 | 819.0 | 710.2 | |
| 0.00 | 1.48 | 0.00 | 0.91 | -10.38 | 50.02 | 32.47 | 243.73 | 0.5911 | 789.0 | 651.4 | |
| 0.00 | 2.44 | 0.00 | 1.51 | -12.34 | 49.98 | 32.43 | 240.74 | 0.6027 | 661.0 | 617.4 | |
| 0.00 | 1.48 | 0.00 | 0.93 | -13.73 | 50.15 | 32.60 | 238.84 | 0.6139 | 661.0 | 568.7 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -12.92 | 48.44 | 30.89 | 238.68 | 0.5880 | -535.0 | -430.1 | |
| 0.00 | 7.06 | 0.00 | 4.30 | -13.02 | 47.99 | 30.44 | 238.16 | 0.5833 | 100.0 | 124.6 | |
| 2.53 | 28.41 | 1.53 | 17.25 | -13.13 | 47.65 | 30.10 | 237.71 | 0.5799 | -822.5 | -272.3 | |
| 11.07 | 68.25 | 6.66 | 41.02 | -12.08 | 47.37 | 29.82 | 239.07 | 0.5691 | -977.4 | -463.6 | |
| 2.61 | -12.00 | 1.59 | -12.00 | -13.28 | 47.46 | 29.91 | 237.33 | 0.5787 | -817.8 | 999999 | |
| 0.00 | 5.32 | 0.00 | 3.21 | -13.19 | 47.06 | 29.51 | 237.10 | 0.5733 | -806.0 | -559.0 | |
| 21.18 | 131.79 | 12.68 | 78.58 | -12.67 | 46.57 | 29.02 | 237.47 | 0.5635 | -960.5 | -490.0 | |
| 6.54 | -16.00 | 3.89 | -16.00 | -12.40 | 46.22 | 28.67 | 237.57 | 0.5573 | -1074.5 | 999999 | |
| 5.93 | -16.00 | 3.52 | -16.00 | -12.48 | 45.92 | 28.36 | 237.18 | 0.5541 | -1034.9 | 999999 | |
| 0.61 | -16.00 | 0.36 | -16.00 | -12.69 | 45.84 | 28.29 | 236.77 | 0.5548 | -591.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
