group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	218.48	1011.72	132.54	617.55	9.76	52.97	35.42	279.25	0.5803	-122.3	-134.4

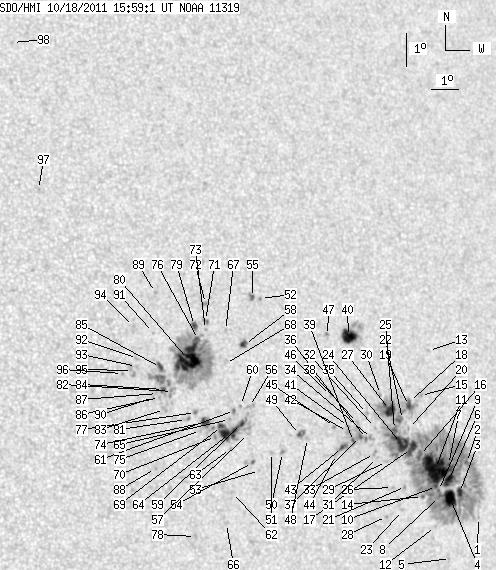

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-18 15:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.05	0.00	0.67	6.90	57.43	39.88	274.03	0.6404	-212.0	-208.8
2	1.39	596.26	0.89	375.73	8.56	57.15	39.60	276.65	0.6369	-224.6	-373.1
3	4.01	-2.00	2.56	-2.00	7.69	56.77	39.22	275.27	0.6316	-670.3	999999
4	13.86	-2.00	8.79	-2.00	7.53	56.41	38.85	275.03	0.6266	-1059.5	999999
5	0.00	0.44	0.00	0.28	5.74	56.24	38.69	272.16	0.6247	-481.0	-533.0
6	6.54	-2.00	4.14	-2.00	8.07	56.39	38.84	275.90	0.6265	-842.9	999999
7	0.87	-2.00	0.55	-2.00	8.55	56.45	38.89	276.66	0.6274	-587.1	999999
8	0.70	-2.00	0.44	-2.00	7.61	55.99	38.44	275.17	0.6210	-967.9	999999
9	0.87	-2.00	0.55	-2.00	7.79	55.97	38.42	275.46	0.6208	-1123.3	999999
10	0.87	-2.00	0.55	-2.00	7.92	55.91	38.36	275.67	0.6199	-1099.6	999999
11	39.57	-2.00	24.94	-2.00	8.46	55.93	38.38	276.54	0.6204	-1127.8	999999
12	0.00	0.70	0.00	0.44	6.73	55.75	38.20	273.74	0.6177	-451.0	-384.4
13	0.00	1.13	0.00	0.72	11.99	56.17	38.62	282.19	0.6268	-752.0	-564.6
14	1.39	-2.00	0.87	-2.00	7.65	55.34	37.79	275.25	0.6121	-820.5	999999
15	0.00	2.44	0.00	1.53	10.67	55.65	38.09	280.14	0.6182	717.0	614.2
16	4.71	-2.00	2.94	-2.00	8.88	55.37	37.81	277.26	0.6129	-887.0	999999
17	8.45	-2.00	5.27	-2.00	9.11	55.09	37.53	277.65	0.6092	-921.7	999999
18	0.96	-2.00	0.60	-2.00	10.51	55.20	37.65	279.94	0.6120	234.0	999999
19	3.22	-2.00	2.01	-2.00	10.40	55.14	37.59	279.76	0.6111	-375.5	999999
20	0.00	1.39	0.00	0.87	9.71	55.05	37.50	278.64	0.6092	-475.0	-419.9
21	0.00	1.39	0.00	0.86	7.99	54.73	37.18	275.82	0.6038	-912.0	-760.2
22	1.13	-2.00	0.70	-2.00	9.99	54.86	37.31	279.13	0.6068	-611.6	999999
23	0.00	0.70	0.00	0.43	7.28	54.54	36.99	274.64	0.6011	-650.0	-542.9
24	14.99	-2.00	9.30	-2.00	9.28	54.73	37.17	277.96	0.6044	-1095.4	999999
25	2.09	-2.00	1.29	-2.00	9.71	54.52	36.96	278.70	0.6018	-938.2	999999
26	0.00	0.87	0.00	0.54	7.99	54.24	36.69	275.83	0.5970	-631.0	-578.5
27	11.24	-2.00	6.95	-2.00	10.32	54.41	36.85	279.72	0.6009	-1065.1	999999
28	0.00	1.39	0.00	0.86	7.14	53.93	36.38	274.41	0.5925	-746.0	-646.8
29	0.00	1.13	0.00	0.70	8.77	54.10	36.55	277.17	0.5954	-893.0	-750.9
30	0.00	1.66	0.00	1.02	10.79	54.13	36.58	280.54	0.5977	-871.0	-750.2
31	0.00	0.78	0.00	0.48	8.91	53.78	36.22	277.43	0.5910	-729.0	-683.6
32	0.00	0.78	0.00	0.48	9.81	53.81	36.26	278.95	0.5922	-879.0	-654.3
33	0.00	2.53	0.00	1.55	9.04	53.68	36.13	277.65	0.5897	-813.0	-716.0
34	0.00	2.61	0.00	1.60	9.49	53.62	36.07	278.42	0.5892	-837.0	-718.1
35	0.00	1.31	0.00	0.80	10.25	53.57	36.01	279.71	0.5892	-867.0	-723.6
36	1.22	15.95	0.74	9.70	9.50	53.43	35.88	278.46	0.5866	-863.3	-786.3
37	1.83	-36.00	1.11	-36.00	9.58	53.22	35.67	278.61	0.5837	-949.0	999999
38	0.00	1.22	0.00	0.74	10.00	53.16	35.61	279.34	0.5833	-633.0	-537.7
39	1.74	-36.00	1.06	-36.00	9.44	52.94	35.39	278.41	0.5797	-936.1	999999
40	13.68	30.85	8.36	18.90	12.59	53.19	35.64	283.75	0.5877	974.6	218.4
41	0.00	1.22	0.00	0.74	9.90	52.81	35.26	279.21	0.5783	-884.0	-775.3
42	0.00	2.53	0.00	1.53	9.75	52.75	35.20	278.97	0.5774	-731.0	-627.9
43	3.05	4.97	1.84	3.00	9.28	52.51	34.96	278.18	0.5735	-871.6	-587.6
44	0.00	1.48	0.00	0.89	9.09	52.27	34.72	277.86	0.5699	-781.0	-604.5
45	0.00	1.39	0.00	0.84	9.93	52.29	34.74	279.33	0.5711	-909.0	-819.3
46	0.00	1.22	0.00	0.74	10.86	52.27	34.71	280.97	0.5719	-693.0	-554.9
47	0.00	2.18	0.00	1.32	12.66	52.42	34.86	284.06	0.5771	-659.0	-575.6
48	0.00	2.18	0.00	1.30	9.62	51.27	33.71	278.93	0.5561	-268.0	-185.7
49	2.00	5.67	1.19	3.36	9.76	50.99	33.44	279.21	0.5523	632.3	521.6
50	0.00	2.27	0.00	1.33	9.25	50.32	32.77	278.38	0.5421	783.0	636.7
51	0.00	1.48	0.00	0.87	9.27	49.93	32.37	278.47	0.5364	-275.0	-241.2
52	0.00	1.13	0.00	0.67	13.90	50.13	32.58	286.91	0.5485	-741.0	-573.5
53	0.00	0.78	0.00	0.46	8.76	49.45	31.89	277.56	0.5289	537.0	381.7
54	1.22	3.75	0.71	2.18	9.01	49.22	31.67	278.06	0.5258	559.5	542.4
55	2.18	3.40	1.28	2.00	13.95	49.85	32.30	287.09	0.5447	-882.6	-803.1
56	0.00	4.27	0.00	2.49	10.69	49.29	31.74	281.23	0.5292	582.0	432.0
57	0.00	1.31	0.00	0.76	9.88	49.17	31.62	279.73	0.5261	-223.0	7.4
58	3.57	4.36	2.09	2.55	12.55	49.35	31.80	284.70	0.5339	715.7	627.0
59	2.09	43.93	1.21	25.42	10.19	48.95	31.40	280.37	0.5234	756.8	288.6
60	0.00	0.78	0.00	0.46	10.73	48.98	31.43	281.39	0.5247	653.0	485.4
61	1.22	2.18	0.71	1.26	10.59	48.75	31.20	281.17	0.5211	739.4	610.5
62	0.00	1.74	0.00	1.00	8.15	48.43	30.88	276.49	0.5134	819.0	687.0
63	0.00	1.31	0.00	0.75	9.47	48.49	30.93	279.05	0.5155	639.0	516.3
64	15.08	-59.00	8.71	-59.00	9.92	48.50	30.94	279.92	0.5163	890.4	999999
65	0.00	1.05	0.00	0.60	10.33	48.54	30.99	280.72	0.5176	730.0	609.4
66	0.00	1.74	0.00	1.00	7.24	48.15	30.60	274.72	0.5087	658.0	513.0
67	0.00	0.87	0.00	0.51	13.01	48.73	31.18	285.75	0.5262	534.0	479.4
68	0.00	1.13	0.00	0.66	12.02	48.60	31.05	283.92	0.5218	260.0	219.9
69	3.75	-59.00	2.16	-59.00	10.14	48.24	30.69	280.40	0.5128	782.5	999999
70	0.00	1.83	0.00	1.05	9.85	48.00	30.44	279.89	0.5088	886.0	796.6
71	0.00	2.79	0.00	1.61	13.34	48.06	30.51	286.62	0.5176	698.0	552.0
72	0.00	2.09	0.00	1.21	13.85	48.14	30.59	287.56	0.5203	730.0	665.7
73	0.00	0.87	0.00	0.50	13.07	48.03	30.47	286.12	0.5163	472.0	447.0
74	4.53	11.94	2.60	6.85	10.29	47.65	30.10	280.82	0.5045	937.1	666.0
75	0.00	1.31	0.00	0.75	10.06	47.49	29.94	280.39	0.5016	766.0	608.7
76	1.66	164.21	0.95	94.16	12.78	47.74	30.19	285.67	0.5114	641.4	347.0
77	0.00	1.57	0.00	0.90	10.60	47.37	29.82	281.51	0.5008	-911.0	-692.3
78	0.00	2.53	0.00	1.44	6.90	47.05	29.49	274.08	0.4920	667.0	509.9
79	3.40	-76.00	1.96	-76.00	13.21	47.66	30.10	286.53	0.5114	707.9	999999
80	34.17	-76.00	19.56	-76.00	12.20	47.31	29.76	284.69	0.5036	1126.2	999999
81	0.00	2.53	0.00	1.44	10.41	47.04	29.48	281.20	0.4955	818.0	748.3
82	0.00	4.88	0.00	2.77	11.27	46.64	29.09	283.04	0.4914	621.0	592.3
83	0.00	2.35	0.00	1.33	10.74	46.31	28.75	282.07	0.4853	789.0	683.6
84	2.35	19.96	1.33	11.30	11.34	46.34	28.78	283.29	0.4871	1053.7	917.2
85	2.88	5.75	1.63	3.26	12.01	46.31	28.75	284.65	0.4883	912.0	756.0
86	0.00	1.31	0.00	0.74	11.11	46.17	28.62	282.86	0.4841	901.0	706.8
87	0.00	1.48	0.00	0.84	11.23	46.12	28.56	283.13	0.4835	760.0	657.2
88	0.00	1.05	0.00	0.59	8.99	45.83	28.28	278.55	0.4751	631.0	535.2
89	0.00	1.22	0.00	0.70	14.27	46.42	28.87	289.10	0.4972	716.0	588.4
90	0.00	1.13	0.00	0.64	11.12	45.96	28.41	282.95	0.4810	811.0	714.9
91	0.00	0.87	0.00	0.49	13.07	46.19	28.64	286.83	0.4898	667.0	562.3
92	0.00	1.57	0.00	0.88	12.31	45.54	27.99	285.56	0.4779	798.0	691.2
93	0.00	1.39	0.00	0.78	12.07	45.48	27.93	285.09	0.4763	847.0	623.8
94	0.00	1.13	0.00	0.64	13.28	45.52	27.97	287.55	0.4807	777.0	663.0
95	0.00	5.40	0.00	3.04	11.96	45.33	27.78	284.91	0.4738	868.0	797.3
96	0.00	1.22	0.00	0.68	11.88	44.98	27.42	284.89	0.4683	848.0	773.1
97	0.00	1.31	0.00	0.73	17.56	42.82	25.27	297.93	0.4625	534.0	476.7
98	0.00	1.13	0.00	0.64	22.11	42.68	25.13	306.62	0.4921	797.0	597.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
