SDO HMI 2011-10-18 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.34 | 356.47 | 111.84 | 562.26 | 11.46 | 305.08 | -72.47 | 79.75 | 0.9481 | -172.6 | -46.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

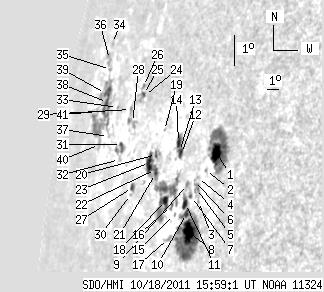

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.98 | 59.36 | 13.49 | 72.48 | 12.06 | 310.74 | -66.81 | 79.28 | 0.9166 | -576.6 | -279.5 | |
| 0.00 | 1.39 | 0.00 | 1.75 | 11.46 | 310.16 | -67.39 | 79.92 | 0.9206 | -303.0 | -253.5 | |
| 0.00 | 1.22 | 0.00 | 1.54 | 10.51 | 310.05 | -67.50 | 80.95 | 0.9215 | -590.0 | -545.3 | |
| 0.00 | 1.83 | 0.00 | 2.35 | 11.20 | 309.64 | -67.91 | 80.19 | 0.9241 | -152.0 | -108.7 | |
| 0.00 | 5.75 | 0.00 | 7.35 | 10.88 | 309.72 | -67.83 | 80.54 | 0.9236 | -550.0 | -467.6 | |
| 0.00 | 0.78 | 0.00 | 1.02 | 11.09 | 309.45 | -68.10 | 80.30 | 0.9254 | -183.0 | -140.4 | |
| 1.31 | 2.27 | 1.69 | 2.94 | 10.61 | 309.44 | -68.12 | 80.83 | 0.9255 | -477.9 | -363.6 | |
| 14.47 | 86.72 | 18.60 | 111.89 | 9.54 | 309.67 | -67.89 | 82.00 | 0.9243 | -684.1 | -257.6 | |
| 0.00 | 2.70 | 0.00 | 3.57 | 10.93 | 308.95 | -68.60 | 80.47 | 0.9286 | 257.0 | 168.6 | |
| 2.79 | -8.00 | 3.64 | -8.00 | 10.08 | 309.27 | -68.28 | 81.40 | 0.9267 | -535.1 | 999999 | |
| 3.84 | -8.00 | 5.05 | -8.00 | 10.36 | 309.05 | -68.50 | 81.08 | 0.9281 | -342.1 | 999999 | |
| 2.27 | 11.59 | 3.12 | 16.14 | 11.78 | 307.97 | -69.58 | 79.52 | 0.9345 | 148.8 | -237.7 | |
| 1.74 | -12.00 | 2.42 | -12.00 | 11.83 | 307.77 | -69.78 | 79.46 | 0.9358 | -262.5 | 999999 | |
| 3.92 | -12.00 | 5.50 | -12.00 | 12.08 | 307.53 | -70.02 | 79.19 | 0.9371 | -463.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.78 | 9.96 | 308.30 | -69.25 | 81.49 | 0.9329 | -281.0 | -156.9 | |
| 1.13 | 2.61 | 1.56 | 3.61 | 10.20 | 307.93 | -69.63 | 81.21 | 0.9351 | -225.4 | -256.6 | |
| 0.00 | 3.14 | 0.00 | 4.31 | 9.21 | 308.12 | -69.43 | 82.28 | 0.9342 | 297.0 | 230.2 | |
| 3.05 | 70.77 | 4.32 | 103.13 | 10.29 | 307.34 | -70.21 | 81.09 | 0.9386 | -207.5 | 183.5 | |
| 0.00 | 0.78 | 0.00 | 1.18 | 12.31 | 306.07 | -71.48 | 78.90 | 0.9455 | -256.0 | -238.0 | |
| 0.87 | 4.71 | 1.33 | 7.16 | 11.55 | 305.77 | -71.78 | 79.69 | 0.9473 | 247.0 | 311.9 | |
| 1.22 | -18.00 | 1.84 | -18.00 | 10.99 | 306.01 | -71.54 | 80.29 | 0.9461 | 452.7 | 999999 | |
| 0.26 | -18.00 | 0.40 | -18.00 | 11.11 | 305.95 | -71.61 | 80.16 | 0.9465 | 326.7 | 999999 | |
| 7.06 | -18.00 | 11.06 | -18.00 | 11.26 | 305.26 | -72.30 | 79.98 | 0.9502 | -447.1 | 999999 | |
| 0.52 | 5.32 | 0.90 | 9.35 | 13.13 | 303.35 | -74.20 | 77.94 | 0.9595 | 57.8 | 231.1 | |
| 1.05 | -24.00 | 1.83 | -24.00 | 13.15 | 303.22 | -74.33 | 77.92 | 0.9601 | -110.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 3.84 | 13.38 | 303.03 | -74.53 | 77.68 | 0.9610 | 164.0 | 109.9 | |
| 2.35 | 3.75 | 3.95 | 6.29 | 10.38 | 304.02 | -73.53 | 80.84 | 0.9568 | 427.7 | 407.3 | |
| 0.00 | 6.62 | 0.00 | 11.97 | 12.24 | 302.68 | -74.87 | 78.84 | 0.9628 | 537.0 | 418.3 | |
| 0.00 | 2.53 | 0.00 | 4.69 | 12.59 | 302.15 | -75.40 | 78.46 | 0.9651 | 328.0 | 307.8 | |
| 0.00 | 1.05 | 0.00 | 1.76 | 10.16 | 303.94 | -73.62 | 81.07 | 0.9572 | 486.0 | 450.1 | |
| 0.52 | 7.23 | 0.99 | 13.79 | 11.50 | 301.94 | -75.61 | 79.58 | 0.9663 | 431.5 | 203.6 | |
| 0.00 | 2.27 | 0.00 | 4.25 | 11.05 | 302.05 | -75.51 | 80.05 | 0.9659 | -245.0 | -229.9 | |
| 0.00 | 1.22 | 0.00 | 2.53 | 12.50 | 300.53 | -77.02 | 78.48 | 0.9720 | 338.0 | 356.6 | |
| 0.00 | 2.09 | 0.00 | 5.29 | 14.20 | 297.73 | -79.83 | 76.60 | 0.9818 | 136.0 | 147.8 | |
| 0.00 | 1.22 | 0.00 | 2.94 | 13.46 | 298.39 | -79.17 | 77.38 | 0.9797 | 179.0 | 156.7 | |
| 0.00 | 5.06 | 0.00 | 12.83 | 13.72 | 297.87 | -79.68 | 77.09 | 0.9814 | 75.0 | -39.5 | |
| 0.00 | 1.22 | 0.00 | 2.60 | 11.57 | 300.14 | -77.41 | 79.41 | 0.9737 | 415.0 | 384.6 | |
| 11.51 | 51.16 | 26.56 | 122.19 | 12.51 | 299.04 | -78.52 | 78.39 | 0.9777 | 287.6 | -67.4 | |
| 1.48 | -38.00 | 3.59 | -38.00 | 12.73 | 298.46 | -79.09 | 78.13 | 0.9796 | -210.9 | 999999 | |
| 0.00 | 4.79 | 0.00 | 11.07 | 11.23 | 299.13 | -78.42 | 79.70 | 0.9776 | 13.0 | -17.7 | |
| 0.00 | 1.83 | 0.00 | 4.67 | 12.12 | 297.83 | -79.72 | 78.72 | 0.9819 | -338.0 | -360.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
