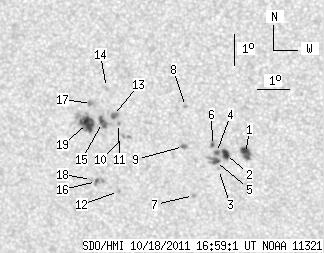

SDO HMI 2011-10-18 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.93 | 93.96 | 23.93 | 51.28 | -14.59 | 2.59 | -14.41 | 145.01 | 0.4215 | -22.4 | -121.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.45 | 9.41 | 4.56 | 5.08 | -14.95 | 5.80 | -11.20 | 151.78 | 0.3985 | 986.3 | 789.2 | |
| 5.23 | 17.78 | 2.83 | 9.63 | -14.99 | 5.17 | -11.83 | 150.50 | 0.4040 | 1101.2 | 678.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -15.48 | 4.92 | -12.08 | 150.60 | 0.4126 | 716.0 | 514.8 | |
| 1.66 | -2.00 | 0.90 | -2.00 | -14.94 | 4.89 | -12.11 | 149.85 | 0.4054 | 959.1 | 999999 | |
| 3.66 | -2.00 | 1.99 | -2.00 | -15.22 | 4.84 | -12.16 | 150.12 | 0.4097 | 879.8 | 999999 | |
| 1.31 | 1.57 | 0.71 | 0.85 | -14.71 | 4.77 | -12.23 | 149.33 | 0.4033 | 867.1 | 781.7 | |
| 0.00 | 1.66 | 0.00 | 0.91 | -16.33 | 4.07 | -12.93 | 149.97 | 0.4309 | 853.0 | 574.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -13.50 | 3.99 | -13.01 | 146.05 | 0.3936 | -753.0 | -564.3 | |
| 0.87 | 2.61 | 0.47 | 1.42 | -14.77 | 3.85 | -13.15 | 147.55 | 0.4117 | 958.5 | 732.4 | |
| 0.00 | 4.36 | 0.00 | 2.38 | -14.50 | 1.99 | -15.01 | 143.66 | 0.4248 | -677.0 | -610.9 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -14.09 | 1.83 | -15.17 | 142.76 | 0.4213 | -943.0 | -796.8 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -16.26 | 1.67 | -15.33 | 145.51 | 0.4501 | -808.0 | -657.6 | |
| 2.27 | 3.92 | 1.24 | 2.14 | -13.84 | 1.69 | -15.31 | 142.13 | 0.4195 | -1010.5 | -924.4 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -12.96 | 1.52 | -15.48 | 140.47 | 0.4104 | -613.0 | -679.8 | |
| 5.23 | 8.72 | 2.86 | 4.77 | -14.07 | 1.32 | -15.68 | 141.83 | 0.4260 | -954.0 | -779.7 | |
| 1.48 | 5.58 | 0.82 | 3.09 | -15.96 | 0.98 | -16.02 | 143.93 | 0.4525 | 935.1 | 851.3 | |
| 0.00 | 4.71 | 0.00 | 2.57 | -13.48 | 1.01 | -15.99 | 140.38 | 0.4218 | -896.0 | -689.5 | |
| 0.00 | 3.05 | 0.00 | 1.69 | -15.90 | 0.83 | -16.17 | 143.58 | 0.4532 | 726.0 | 550.4 | |
| 13.77 | 23.71 | 7.55 | 13.00 | -14.11 | 0.84 | -16.16 | 141.05 | 0.4313 | -980.6 | -560.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
