SDO HMI 2011-10-18 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.58 | 162.72 | 15.48 | 102.40 | -26.86 | 36.94 | 20.49 | 210.41 | 0.6188 | 1029.7 | 358.0 | |
|
previous
or next observation for the same group /

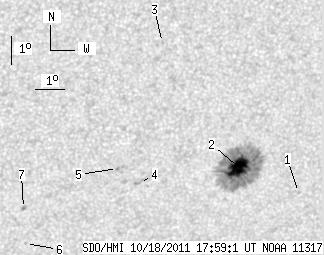

back to the solar disc SDO HMI 2011-10-18 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.57 | -27.83 | 39.53 | 23.08 | 212.49 | 0.6476 | 597.0 | 490.2 | |
| 24.58 | 153.82 | 15.48 | 96.92 | -26.85 | 37.15 | 20.70 | 210.69 | 0.6200 | 1159.4 | 341.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -22.41 | 33.80 | 17.35 | 210.61 | 0.5435 | 669.0 | 558.9 | |
| 0.00 | 3.14 | 0.00 | 1.94 | -27.26 | 33.71 | 17.26 | 206.07 | 0.6023 | 616.0 | 583.2 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -26.74 | 32.85 | 16.40 | 205.38 | 0.5907 | 831.0 | 714.4 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -29.35 | 30.00 | 13.55 | 199.69 | 0.6085 | 642.0 | 454.6 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -28.08 | 29.77 | 13.32 | 200.19 | 0.5910 | 815.0 | 727.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
