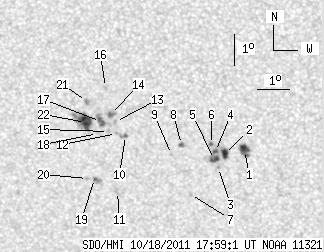

SDO HMI 2011-10-18 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.61 | 98.63 | 22.07 | 53.73 | -14.63 | 2.65 | -13.80 | 146.23 | 0.4166 | -5.1 | -179.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.28 | 10.37 | 4.46 | 5.58 | -14.91 | 5.85 | -10.60 | 153.02 | 0.3934 | 969.4 | 748.0 | |
| 4.71 | 6.62 | 2.54 | 3.58 | -15.01 | 5.22 | -11.23 | 151.78 | 0.3996 | 1072.1 | 811.8 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -15.46 | 5.00 | -11.45 | 151.88 | 0.4076 | 735.0 | 567.1 | |
| 1.92 | 12.20 | 1.04 | 6.60 | -14.96 | 4.94 | -11.51 | 151.12 | 0.4010 | 929.4 | 501.6 | |
| 4.44 | -4.00 | 2.41 | -4.00 | -15.21 | 4.89 | -11.56 | 151.34 | 0.4049 | 858.8 | 999999 | |
| 0.44 | 2.09 | 0.24 | 1.13 | -14.73 | 4.82 | -11.63 | 150.60 | 0.3988 | 984.6 | 700.7 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -16.35 | 4.06 | -12.39 | 151.04 | 0.4270 | 823.0 | 651.9 | |
| 1.74 | 2.61 | 0.94 | 1.42 | -14.75 | 3.87 | -12.58 | 148.67 | 0.4067 | 776.0 | 759.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.08 | 3.54 | -12.91 | 148.43 | 0.4139 | 791.0 | 672.9 | |
| 1.22 | 3.31 | 0.66 | 1.81 | -14.51 | 2.11 | -14.34 | 144.91 | 0.4188 | -641.9 | -620.6 | |
| 0.00 | 3.14 | 0.00 | 1.73 | -16.31 | 1.73 | -14.72 | 146.64 | 0.4454 | -382.0 | -527.9 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -14.45 | 1.83 | -14.62 | 144.31 | 0.4207 | -774.0 | -638.2 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -14.07 | 1.82 | -14.63 | 143.74 | 0.4159 | -1015.0 | -801.1 | |
| 0.00 | 3.75 | 0.00 | 2.04 | -13.86 | 1.68 | -14.77 | 143.15 | 0.4146 | -1091.0 | -914.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -14.40 | 1.58 | -14.87 | 143.76 | 0.4223 | -639.0 | -505.4 | |
| 0.00 | 1.92 | 0.00 | 1.04 | -13.01 | 1.57 | -14.88 | 141.66 | 0.4050 | -914.0 | -711.0 | |
| 4.62 | 9.32 | 2.52 | 5.08 | -14.09 | 1.34 | -15.11 | 142.88 | 0.4206 | -935.5 | -800.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -14.47 | 1.22 | -15.23 | 143.22 | 0.4266 | -581.0 | -405.1 | |
| 1.13 | 5.32 | 0.63 | 2.94 | -15.91 | 1.02 | -15.43 | 144.87 | 0.4466 | 792.3 | 829.0 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -15.92 | 0.79 | -15.66 | 144.49 | 0.4487 | 731.0 | 623.4 | |
| 0.00 | 3.22 | 0.00 | 1.76 | -13.46 | 0.94 | -15.51 | 141.21 | 0.4169 | -950.0 | -810.0 | |
| 12.11 | 25.36 | 6.63 | 13.87 | -14.13 | 0.86 | -15.59 | 142.08 | 0.4258 | -1004.9 | -585.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
