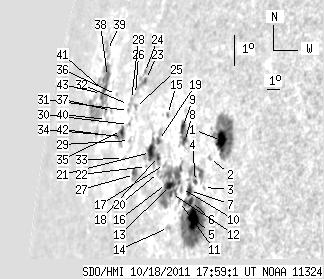

SDO HMI 2011-10-18 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.86 | 384.05 | 94.90 | 566.50 | 11.32 | 305.48 | -70.97 | 79.96 | 0.9400 | -160.8 | -31.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.59 | 59.61 | 11.29 | 69.87 | 12.01 | 310.74 | -65.71 | 79.35 | 0.9089 | -643.8 | -314.3 | |
| 0.00 | 1.92 | 0.00 | 2.31 | 11.41 | 310.12 | -66.33 | 80.00 | 0.9134 | -430.0 | -331.0 | |
| 0.00 | 1.22 | 0.00 | 1.47 | 10.52 | 310.05 | -66.40 | 80.98 | 0.9140 | -609.0 | -507.0 | |
| 1.22 | 15.34 | 1.52 | 19.05 | 10.64 | 309.38 | -67.07 | 80.82 | 0.9186 | -444.2 | -210.0 | |
| 13.33 | 94.29 | 16.38 | 116.17 | 9.55 | 309.68 | -66.77 | 82.03 | 0.9168 | -781.7 | -292.0 | |
| 2.88 | -5.00 | 3.59 | -5.00 | 10.02 | 309.25 | -67.20 | 81.49 | 0.9196 | -530.2 | 999999 | |
| 3.92 | -5.00 | 4.94 | -5.00 | 10.34 | 309.03 | -67.41 | 81.14 | 0.9210 | -347.7 | 999999 | |
| 3.14 | 14.03 | 4.12 | 18.59 | 11.73 | 307.95 | -68.50 | 79.60 | 0.9278 | 191.7 | -237.4 | |
| 4.10 | -8.00 | 5.46 | -8.00 | 12.12 | 307.56 | -68.89 | 79.17 | 0.9302 | -480.8 | 999999 | |
| 0.00 | 1.92 | 0.00 | 2.48 | 10.34 | 308.38 | -68.06 | 81.12 | 0.9253 | -387.0 | -313.5 | |
| 0.00 | 1.39 | 0.00 | 1.80 | 9.95 | 308.40 | -68.05 | 81.55 | 0.9253 | -214.0 | -152.3 | |
| 2.18 | 52.55 | 2.91 | 70.69 | 10.12 | 307.65 | -68.80 | 81.33 | 0.9300 | -156.5 | 241.0 | |
| 3.92 | -12.00 | 5.27 | -12.00 | 10.35 | 307.46 | -68.99 | 81.08 | 0.9312 | -176.7 | 999999 | |
| 0.00 | 2.09 | 0.00 | 2.78 | 9.11 | 307.84 | -68.61 | 82.43 | 0.9291 | 393.0 | 157.7 | |
| 0.00 | 1.83 | 0.00 | 2.60 | 12.38 | 306.07 | -70.38 | 78.85 | 0.9392 | -277.0 | -197.2 | |
| 0.52 | -12.00 | 0.71 | -12.00 | 10.37 | 307.10 | -69.35 | 81.03 | 0.9334 | 171.8 | 999999 | |
| 0.00 | 1.57 | 0.00 | 2.18 | 10.91 | 306.65 | -69.80 | 80.44 | 0.9361 | 632.0 | 572.2 | |
| 1.48 | 30.41 | 2.12 | 44.62 | 11.10 | 306.00 | -70.45 | 80.22 | 0.9399 | 394.3 | 82.9 | |
| 1.83 | -18.00 | 2.65 | -18.00 | 11.56 | 305.74 | -70.71 | 79.72 | 0.9413 | 323.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 2.10 | 10.63 | 306.25 | -70.20 | 80.73 | 0.9385 | 453.0 | 459.8 | |
| 6.54 | -18.00 | 9.70 | -18.00 | 11.15 | 305.22 | -71.23 | 80.14 | 0.9443 | -439.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 1.44 | 10.71 | 305.09 | -71.36 | 80.60 | 0.9452 | 33.0 | 62.4 | |
| 1.05 | 6.80 | 1.71 | 11.29 | 13.20 | 303.31 | -73.13 | 77.91 | 0.9542 | -75.6 | 266.2 | |
| 0.00 | 1.83 | 0.00 | 3.02 | 13.39 | 303.05 | -73.39 | 77.70 | 0.9555 | 189.0 | 73.1 | |
| 0.00 | 1.74 | 0.00 | 2.91 | 12.31 | 302.92 | -73.53 | 78.83 | 0.9564 | 575.0 | 483.8 | |
| 0.00 | 1.13 | 0.00 | 1.93 | 12.68 | 302.63 | -73.82 | 78.43 | 0.9577 | 433.0 | 421.4 | |
| 0.00 | 6.45 | 0.00 | 10.17 | 10.37 | 304.09 | -72.36 | 80.91 | 0.9507 | 604.0 | 439.9 | |
| 0.00 | 1.31 | 0.00 | 2.26 | 12.50 | 302.32 | -74.13 | 78.61 | 0.9592 | 378.0 | 337.9 | |
| 0.00 | 1.57 | 0.00 | 2.61 | 11.30 | 302.98 | -73.47 | 79.88 | 0.9562 | 502.0 | 487.1 | |
| 0.00 | 1.39 | 0.00 | 2.38 | 11.75 | 302.55 | -73.90 | 79.40 | 0.9583 | 568.0 | 419.5 | |
| 0.00 | 1.22 | 0.00 | 2.12 | 12.15 | 302.25 | -74.20 | 78.97 | 0.9596 | 398.0 | 352.6 | |
| 0.00 | 0.87 | 0.00 | 1.53 | 12.32 | 302.11 | -74.33 | 78.78 | 0.9602 | 272.0 | 219.5 | |
| 0.00 | 0.96 | 0.00 | 1.63 | 10.73 | 302.70 | -73.75 | 80.47 | 0.9577 | 448.0 | 338.5 | |
| 1.22 | 12.20 | 2.13 | 21.58 | 11.35 | 302.16 | -74.29 | 79.80 | 0.9602 | -211.5 | 44.8 | |
| 2.53 | -34.00 | 4.46 | -34.00 | 11.51 | 301.93 | -74.52 | 79.62 | 0.9613 | 426.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 2.18 | 12.48 | 300.52 | -75.92 | 78.55 | 0.9674 | 383.0 | 377.8 | |
| 0.00 | 0.70 | 0.00 | 1.36 | 11.97 | 300.33 | -76.12 | 79.07 | 0.9684 | 477.0 | 467.9 | |
| 2.18 | 52.11 | 4.67 | 114.81 | 12.88 | 298.91 | -77.54 | 78.06 | 0.9740 | 403.6 | -8.6 | |
| 0.00 | 8.98 | 0.00 | 20.39 | 13.60 | 298.10 | -78.35 | 77.28 | 0.9769 | 302.0 | 89.6 | |
| 0.00 | 0.78 | 0.00 | 1.58 | 11.66 | 299.94 | -76.51 | 79.37 | 0.9701 | 402.0 | 360.3 | |
| 4.18 | -38.00 | 8.97 | -38.00 | 12.42 | 298.95 | -77.50 | 78.53 | 0.9739 | 246.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 4.60 | 11.19 | 299.81 | -76.64 | 79.85 | 0.9707 | 284.0 | 231.5 | |
| 1.05 | -38.00 | 2.30 | -38.00 | 12.33 | 298.60 | -77.85 | 78.61 | 0.9752 | -135.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
