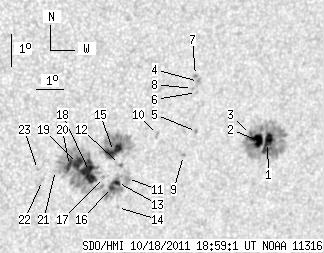

SDO HMI 2011-10-18 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.93 | 338.65 | 44.28 | 211.83 | -12.34 | 49.03 | 33.14 | 241.11 | 0.6112 | -168.2 | -144.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.89 | 108.93 | 7.16 | 71.48 | -12.15 | 53.15 | 37.25 | 244.23 | 0.6594 | 788.8 | 300.7 | |
| 10.81 | -1.00 | 7.06 | -1.00 | -12.06 | 52.75 | 36.85 | 244.11 | 0.6542 | 1088.5 | 999999 | |
| 1.22 | -1.00 | 0.79 | -1.00 | -11.85 | 52.45 | 36.55 | 244.22 | 0.6496 | 1023.7 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.53 | -10.08 | 50.25 | 34.36 | 245.45 | 0.6131 | 881.0 | 724.1 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -11.64 | 50.39 | 34.49 | 243.22 | 0.6235 | 820.0 | 650.8 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -10.42 | 50.22 | 34.33 | 244.92 | 0.6146 | 656.0 | 542.6 | |
| 0.00 | 1.66 | 0.00 | 1.03 | -9.89 | 50.12 | 34.22 | 245.66 | 0.6104 | 827.0 | 756.7 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -10.29 | 50.06 | 34.16 | 245.01 | 0.6118 | 630.0 | 576.7 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -12.37 | 50.01 | 34.12 | 241.91 | 0.6233 | 828.0 | 688.6 | |
| 0.00 | 2.27 | 0.00 | 1.41 | -11.65 | 48.96 | 33.06 | 242.22 | 0.6061 | 566.0 | 456.6 | |
| 0.00 | 7.93 | 0.00 | 4.92 | -12.98 | 48.05 | 32.16 | 239.59 | 0.6036 | 229.0 | 116.7 | |
| 0.00 | 2.18 | 0.00 | 1.34 | -12.52 | 47.70 | 31.80 | 239.99 | 0.5963 | -509.0 | -423.2 | |
| 2.35 | 26.49 | 1.45 | 16.37 | -13.09 | 47.71 | 31.81 | 239.17 | 0.6002 | -822.9 | -304.5 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -13.88 | 47.83 | 31.93 | 238.11 | 0.6070 | -444.0 | -304.6 | |
| 12.11 | 57.95 | 7.42 | 35.48 | -12.10 | 47.43 | 31.53 | 240.41 | 0.5902 | -978.1 | -446.5 | |
| 1.92 | -13.00 | 1.18 | -13.00 | -13.23 | 47.51 | 31.61 | 238.80 | 0.5988 | -811.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -12.90 | 47.18 | 31.28 | 239.02 | 0.5925 | -612.0 | -474.7 | |
| 19.43 | 117.82 | 11.84 | 71.48 | -12.69 | 46.64 | 30.75 | 238.91 | 0.5846 | -911.6 | -540.2 | |
| 7.67 | -18.00 | 4.64 | -18.00 | -12.41 | 46.18 | 30.28 | 238.95 | 0.5771 | -1041.4 | 999999 | |
| 4.53 | -18.00 | 2.74 | -18.00 | -12.46 | 45.90 | 30.01 | 238.64 | 0.5741 | -1015.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -12.59 | 45.43 | 29.53 | 238.04 | 0.5692 | -138.0 | -158.7 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -12.88 | 45.01 | 29.11 | 237.22 | 0.5663 | -278.0 | -216.7 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -12.53 | 44.79 | 28.89 | 237.57 | 0.5609 | 414.0 | 233.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
