group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	228.49	1007.68	141.62	628.35	9.79	52.98	37.08	279.10	0.6034	-119.4	-118.0

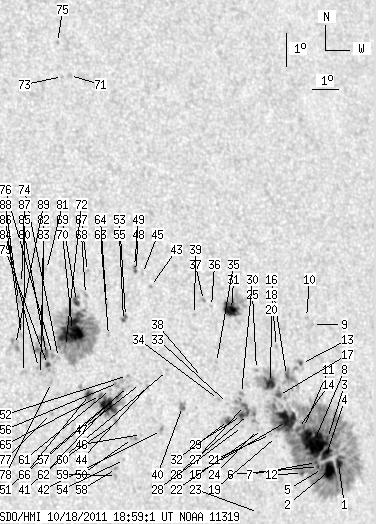

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-18 18:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	4.62	582.58	3.02	376.12	7.73	56.82	40.92	275.33	0.6542	-652.8	-332.1
2	15.60	-1.00	10.13	-1.00	7.55	56.44	40.54	275.04	0.6492	-1032.7	999999
3	1.39	-1.00	0.91	-1.00	8.50	56.47	40.58	276.52	0.6498	-650.4	999999
4	6.62	-1.00	4.30	-1.00	8.03	56.38	40.48	275.79	0.6484	-863.2	999999
5	3.57	-1.00	2.31	-1.00	7.62	56.17	40.27	275.17	0.6456	-988.0	999999
6	1.31	-1.00	0.84	-1.00	7.69	56.02	40.12	275.28	0.6436	-1001.9	999999
7	1.05	-1.00	0.67	-1.00	7.82	55.95	40.06	275.47	0.6428	-989.2	999999
8	40.96	-1.00	26.41	-1.00	8.42	55.91	40.01	276.41	0.6423	-1131.1	999999
9	0.00	1.05	0.00	0.68	11.94	56.41	40.51	281.82	0.6516	-732.0	-599.6
10	0.00	0.96	0.00	0.62	12.16	56.20	40.31	282.19	0.6493	-535.0	-435.4
11	2.00	-1.00	1.29	-1.00	8.89	55.57	39.68	277.17	0.6380	-786.9	999999
12	1.22	-1.00	0.78	-1.00	7.52	55.37	39.47	275.02	0.6350	-820.4	999999
13	1.05	3.22	0.67	2.08	10.80	55.77	39.87	280.14	0.6420	723.9	615.9
14	2.35	-1.00	1.51	-1.00	8.87	55.37	39.48	277.15	0.6354	-909.3	999999
15	27.71	-1.00	17.62	-1.00	9.11	54.94	39.04	277.55	0.6296	-1006.7	999999
16	2.44	-1.00	1.56	-1.00	10.48	55.13	39.23	279.71	0.6332	-396.9	999999
17	2.79	-1.00	1.77	-1.00	9.90	54.73	38.83	278.83	0.6274	-823.6	999999
18	0.00	1.31	0.00	0.83	11.37	54.88	38.98	281.15	0.6308	-728.0	-588.0
19	0.00	0.87	0.00	0.55	8.69	54.49	38.60	276.90	0.6234	-699.0	-533.8
20	9.41	-1.00	5.95	-1.00	10.31	54.48	38.58	279.51	0.6244	-1011.1	999999
21	0.00	1.13	0.00	0.71	8.76	54.27	38.37	277.03	0.6205	-848.0	-714.2
22	0.00	0.87	0.00	0.55	8.93	53.98	38.08	277.32	0.6166	-814.0	-646.5
23	0.00	0.87	0.00	0.54	6.47	53.57	37.67	273.30	0.6105	-642.0	-512.9
24	0.00	1.31	0.00	0.82	8.94	53.79	37.89	277.35	0.6140	-788.0	-664.6
25	0.00	1.48	0.00	0.93	10.73	54.00	38.10	280.24	0.6183	-833.0	-771.0
26	0.61	30.24	0.38	18.84	9.41	53.50	37.61	278.14	0.6104	-966.0	-805.0
27	0.44	-26.00	0.27	-26.00	9.68	53.39	37.49	278.60	0.6090	-998.0	999999
28	0.00	0.96	0.00	0.60	9.06	53.23	37.34	277.59	0.6065	-774.0	-653.2
29	2.70	-26.00	1.68	-26.00	9.39	53.23	37.34	278.14	0.6067	-1001.8	999999
30	0.00	1.39	0.00	0.87	10.05	53.32	37.42	279.21	0.6085	-864.0	-783.9
31	16.21	33.99	10.13	21.28	12.58	53.33	37.43	283.35	0.6119	900.3	155.4
32	3.05	6.88	1.88	4.25	9.27	52.73	36.83	277.98	0.5996	-904.6	-501.4
33	0.00	1.22	0.00	0.75	9.78	52.75	36.86	278.83	0.6004	-777.0	-549.4
34	0.00	1.22	0.00	0.75	9.92	52.43	36.53	279.10	0.5961	-827.0	-742.2
35	0.00	0.52	0.00	0.32	11.03	52.51	36.61	280.94	0.5984	-621.0	-490.7
36	0.00	1.05	0.00	0.65	12.71	52.58	36.68	283.73	0.6021	-515.0	-464.3
37	0.00	1.39	0.00	0.86	12.91	52.31	36.41	284.12	0.5988	-457.0	-477.4
38	0.00	1.05	0.00	0.64	10.61	51.92	36.02	280.33	0.5898	-783.0	-643.9
39	0.00	1.31	0.00	0.80	12.51	51.90	36.00	283.54	0.5925	-752.0	-566.2
40	0.00	4.62	0.00	2.80	9.79	51.06	35.17	279.03	0.5769	719.0	537.2
41	0.00	1.13	0.00	0.68	10.89	50.65	34.75	281.02	0.5725	577.0	359.2
42	0.00	2.35	0.00	1.41	9.11	50.21	34.31	277.95	0.5642	721.0	472.1
43	0.00	1.13	0.00	0.68	13.44	50.40	34.50	285.50	0.5739	618.0	527.5
44	0.00	1.39	0.00	0.83	10.45	49.85	33.96	280.38	0.5606	467.0	374.2
45	0.00	1.22	0.00	0.74	13.85	50.17	34.27	286.27	0.5717	-703.0	-456.6
46	0.00	0.26	0.00	0.16	9.03	49.47	33.57	277.88	0.5535	569.0	487.7
47	0.00	0.78	0.00	0.47	10.56	49.61	33.71	280.61	0.5573	-589.0	-445.0
48	1.31	2.88	0.79	1.73	13.92	49.92	34.02	286.47	0.5685	-822.1	-795.0
49	1.05	-48.00	0.63	-48.00	14.07	49.91	34.01	286.74	0.5687	-764.2	999999
50	0.00	2.88	0.00	1.70	8.93	49.13	33.24	277.73	0.5486	634.0	527.1
51	0.00	0.52	0.00	0.31	10.49	49.16	33.27	280.57	0.5508	305.0	233.7
52	0.00	0.87	0.00	0.52	10.82	49.17	33.27	281.17	0.5514	519.0	447.2
53	0.52	2.79	0.31	1.66	12.59	49.34	33.44	284.30	0.5572	607.7	530.3
54	0.00	0.96	0.00	0.56	8.32	48.78	32.89	276.65	0.5430	609.0	496.0
55	1.39	-53.00	0.83	-53.00	12.47	49.25	33.35	284.12	0.5557	697.7	999999
56	0.00	6.62	0.00	3.91	10.63	48.82	32.92	280.89	0.5461	417.0	602.2
57	0.87	58.13	0.51	34.08	10.19	48.69	32.80	280.09	0.5436	616.1	434.5
58	0.00	1.22	0.00	0.72	8.07	48.47	32.58	276.20	0.5384	911.0	761.7
59	0.00	0.78	0.00	0.46	7.86	48.46	32.56	275.81	0.5380	773.0	680.4
60	0.00	2.09	0.00	1.23	9.44	48.61	32.71	278.73	0.5415	580.0	474.6
61	0.00	0.87	0.00	0.51	10.44	48.51	32.61	280.59	0.5413	735.0	615.4
62	17.95	-57.00	10.54	-57.00	9.96	48.38	32.48	279.73	0.5388	893.9	999999
63	0.00	1.22	0.00	0.72	12.05	48.64	32.74	283.52	0.5462	708.0	575.4
64	0.00	1.31	0.00	0.77	12.99	48.70	32.80	285.20	0.5492	705.0	603.5
65	1.83	-57.00	1.07	-57.00	10.28	48.13	32.23	280.36	0.5356	722.1	999999
66	5.14	-57.00	3.00	-57.00	10.33	47.74	31.84	280.53	0.5300	876.6	999999
67	0.00	1.83	0.00	1.08	14.01	48.17	32.27	287.22	0.5445	670.0	528.1
68	0.00	2.44	0.00	1.43	13.33	47.99	32.09	286.04	0.5400	534.0	397.6
69	4.10	7.84	2.40	4.59	13.13	47.63	31.74	285.80	0.5345	665.2	317.0
70	39.04	170.98	22.74	99.72	12.27	47.37	31.47	284.28	0.5285	1065.1	307.4
71	0.00	2.53	0.00	1.53	19.99	48.67	32.77	297.32	0.5747	604.0	392.4
72	1.13	-70.00	0.66	-70.00	11.80	47.06	31.16	283.49	0.5230	788.6	999999
73	0.00	1.05	0.00	0.63	19.97	48.40	32.50	297.44	0.5712	620.0	479.4
74	0.00	1.66	0.00	0.96	11.49	46.77	30.87	282.96	0.5181	553.0	474.3
75	0.00	1.31	0.00	0.79	21.03	48.46	32.56	299.13	0.5774	671.0	560.3
76	0.00	2.79	0.00	1.61	11.59	46.57	30.67	283.21	0.5154	833.0	730.6
77	0.00	1.57	0.00	0.90	9.82	46.34	30.44	279.84	0.5087	773.0	594.5
78	0.00	1.48	0.00	0.85	10.75	46.43	30.54	281.63	0.5117	742.0	596.5
79	2.18	3.92	1.25	2.26	11.30	46.36	30.46	282.71	0.5116	996.6	825.8
80	3.22	11.94	1.86	6.87	11.60	46.36	30.46	283.29	0.5123	942.8	896.1
81	0.00	1.22	0.00	0.71	14.15	46.70	30.81	288.03	0.5243	547.0	457.0
82	1.66	4.10	0.95	2.36	12.08	46.27	30.38	284.26	0.5123	837.2	758.8
83	0.00	1.39	0.00	0.80	11.01	46.08	30.18	282.22	0.5069	834.0	674.9
84	0.00	2.09	0.00	1.20	11.22	46.03	30.13	282.65	0.5067	869.0	718.4
85	0.00	2.44	0.00	1.39	11.10	45.49	29.59	282.56	0.4985	791.0	697.6
86	0.00	1.48	0.00	0.85	12.24	45.55	29.66	284.80	0.5022	792.0	634.9
87	0.00	1.31	0.00	0.75	13.77	45.76	29.86	287.70	0.5096	679.0	513.5
88	0.00	2.27	0.00	1.30	13.26	45.58	29.68	286.79	0.5055	872.0	698.7
89	0.00	7.15	0.00	4.08	11.95	45.31	29.41	284.31	0.4978	742.0	765.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
