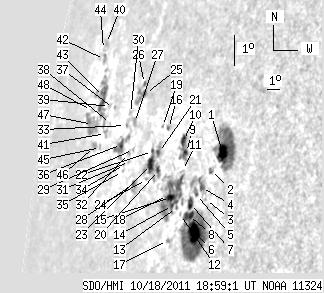

SDO HMI 2011-10-18 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.43 | 412.39 | 96.83 | 592.11 | 11.27 | 305.42 | -70.48 | 80.03 | 0.9372 | -168.0 | -21.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.28 | 61.79 | 9.55 | 71.02 | 12.03 | 310.70 | -65.19 | 79.34 | 0.9052 | -701.7 | -322.8 | |
| 0.00 | 2.61 | 0.00 | 3.09 | 11.42 | 310.09 | -65.81 | 79.99 | 0.9097 | -385.0 | -323.0 | |
| 0.00 | 0.78 | 0.00 | 0.93 | 10.54 | 310.10 | -65.80 | 80.96 | 0.9098 | -567.0 | -526.3 | |
| 1.66 | 14.20 | 1.99 | 17.21 | 10.87 | 309.66 | -66.24 | 80.59 | 0.9128 | -577.6 | -173.7 | |
| 0.52 | 4.10 | 0.63 | 4.99 | 10.63 | 309.38 | -66.52 | 80.85 | 0.9148 | -543.7 | -332.3 | |
| 13.07 | 101.18 | 15.72 | 122.20 | 9.51 | 309.68 | -66.21 | 82.09 | 0.9129 | -797.7 | -284.0 | |
| 4.44 | -6.00 | 5.47 | -6.00 | 10.33 | 309.04 | -66.86 | 81.17 | 0.9172 | -356.2 | 999999 | |
| 6.36 | -6.00 | 7.84 | -6.00 | 9.96 | 309.04 | -66.86 | 81.57 | 0.9173 | -374.7 | 999999 | |
| 1.22 | 14.47 | 1.56 | 18.73 | 11.79 | 308.03 | -67.87 | 79.55 | 0.9237 | 199.6 | -126.3 | |
| 4.18 | -9.00 | 5.44 | -9.00 | 12.12 | 307.61 | -68.29 | 79.19 | 0.9264 | -540.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 1.01 | 11.24 | 307.98 | -67.91 | 80.15 | 0.9241 | -217.0 | -138.0 | |
| 0.00 | 1.13 | 0.00 | 1.43 | 9.94 | 308.42 | -67.48 | 81.57 | 0.9215 | -202.0 | -190.2 | |
| 0.00 | 0.96 | 0.00 | 1.23 | 10.12 | 308.02 | -67.88 | 81.37 | 0.9241 | -348.0 | -282.5 | |
| 0.44 | 55.69 | 0.57 | 73.11 | 10.15 | 307.67 | -68.22 | 81.32 | 0.9263 | -196.8 | 232.2 | |
| 2.70 | -14.00 | 3.55 | -14.00 | 10.36 | 307.41 | -68.49 | 81.08 | 0.9280 | -218.4 | 999999 | |
| 0.44 | 1.83 | 0.60 | 2.54 | 12.35 | 306.18 | -69.72 | 78.90 | 0.9353 | -233.2 | -159.8 | |
| 0.00 | 1.66 | 0.00 | 2.15 | 9.09 | 307.71 | -68.18 | 82.47 | 0.9263 | 225.0 | 194.5 | |
| 0.52 | -14.00 | 0.69 | -14.00 | 10.40 | 307.14 | -68.76 | 81.03 | 0.9297 | 132.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.61 | 12.37 | 305.63 | -70.27 | 78.88 | 0.9386 | -198.0 | -101.2 | |
| 2.35 | 33.55 | 3.29 | 48.00 | 11.06 | 306.02 | -69.88 | 80.28 | 0.9365 | 382.1 | 109.6 | |
| 1.74 | -20.00 | 2.47 | -20.00 | 11.58 | 305.73 | -70.17 | 79.72 | 0.9381 | 370.9 | 999999 | |
| 1.13 | -20.00 | 1.64 | -20.00 | 11.56 | 305.18 | -70.71 | 79.72 | 0.9413 | -351.6 | 999999 | |
| 7.49 | -20.00 | 10.84 | -20.00 | 11.17 | 305.22 | -70.67 | 80.14 | 0.9411 | -465.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.52 | 10.70 | 305.11 | -70.79 | 80.63 | 0.9419 | -78.0 | -43.6 | |
| 0.26 | 9.93 | 0.41 | 16.06 | 13.17 | 303.42 | -72.48 | 77.96 | 0.9508 | 8.3 | 304.3 | |
| 0.00 | 1.39 | 0.00 | 2.24 | 13.45 | 303.10 | -72.79 | 77.66 | 0.9524 | 98.0 | 80.1 | |
| 0.00 | 3.31 | 0.00 | 5.36 | 12.24 | 302.95 | -72.94 | 78.92 | 0.9534 | 604.0 | 558.1 | |
| 1.48 | 6.88 | 2.29 | 10.54 | 10.48 | 303.98 | -71.91 | 80.82 | 0.9483 | 333.1 | 446.2 | |
| 0.00 | 1.22 | 0.00 | 1.93 | 11.46 | 303.38 | -72.51 | 79.76 | 0.9513 | 374.0 | 383.6 | |
| 0.00 | 2.18 | 0.00 | 3.64 | 12.46 | 302.36 | -73.54 | 78.67 | 0.9563 | 385.0 | 353.8 | |
| 0.00 | 1.05 | 0.00 | 1.68 | 11.08 | 303.22 | -72.68 | 80.16 | 0.9522 | 448.0 | 438.2 | |
| 0.00 | 1.66 | 0.00 | 2.68 | 11.30 | 302.97 | -72.93 | 79.91 | 0.9535 | 502.0 | 456.9 | |
| 0.00 | 0.96 | 0.00 | 1.62 | 12.07 | 302.10 | -73.80 | 79.07 | 0.9577 | 286.0 | 326.5 | |
| 0.00 | 1.13 | 0.00 | 1.86 | 10.94 | 302.77 | -73.12 | 80.28 | 0.9546 | 379.0 | 352.7 | |
| 0.00 | 0.96 | 0.00 | 1.58 | 10.72 | 302.70 | -73.19 | 80.50 | 0.9550 | 438.0 | 362.6 | |
| 2.00 | 15.34 | 3.41 | 26.02 | 11.49 | 302.08 | -73.82 | 79.68 | 0.9579 | 522.4 | 149.3 | |
| 0.00 | 0.61 | 0.00 | 1.14 | 12.43 | 300.40 | -75.50 | 78.62 | 0.9656 | 417.0 | 405.1 | |
| 0.00 | 0.96 | 0.00 | 1.80 | 11.97 | 300.41 | -75.48 | 79.10 | 0.9656 | 450.0 | 429.8 | |
| 0.00 | 1.31 | 0.00 | 2.52 | 12.44 | 299.88 | -76.02 | 78.58 | 0.9678 | 368.0 | 316.6 | |
| 0.00 | 2.44 | 0.00 | 5.48 | 14.17 | 297.64 | -78.26 | 76.71 | 0.9764 | 173.0 | 156.7 | |
| 0.00 | 3.40 | 0.00 | 6.51 | 11.64 | 300.07 | -75.83 | 79.43 | 0.9672 | 428.0 | 404.5 | |
| 0.00 | 3.49 | 0.00 | 7.69 | 13.70 | 297.89 | -78.00 | 77.20 | 0.9756 | 188.0 | 96.7 | |
| 9.15 | 30.59 | 18.87 | 63.43 | 12.66 | 298.88 | -77.02 | 78.32 | 0.9720 | 292.4 | 144.3 | |
| 0.00 | 0.70 | 0.00 | 1.60 | 13.96 | 297.42 | -78.48 | 76.91 | 0.9772 | -233.0 | -226.1 | |
| 0.00 | 1.74 | 0.00 | 3.41 | 11.18 | 299.80 | -76.10 | 79.88 | 0.9685 | 308.0 | 231.9 | |
| 0.00 | 4.62 | 0.00 | 9.50 | 11.14 | 299.03 | -76.86 | 79.89 | 0.9716 | 37.0 | -3.0 | |
| 0.00 | 18.48 | 0.00 | 40.48 | 11.74 | 298.21 | -77.69 | 79.23 | 0.9748 | -92.0 | -203.9 | |
| 0.00 | 1.13 | 0.00 | 2.57 | 12.11 | 297.68 | -78.22 | 78.81 | 0.9767 | -362.0 | -337.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
