SDO HMI 2011-10-18 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.74 | 403.58 | 117.31 | 563.17 | 11.33 | 305.53 | -69.82 | 79.98 | 0.9333 | -126.3 | -24.3 | |
|
previous
or next observation for the same group /

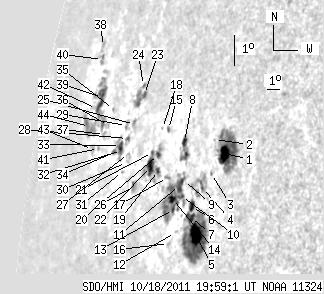

back to the solar disc SDO HMI 2011-10-18 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 60.39 | 10.16 | 67.94 | 12.04 | 310.72 | -64.62 | 79.32 | 0.9010 | -700.6 | -372.1 | |
| 0.00 | 0.87 | 0.00 | 1.02 | 12.39 | 309.83 | -65.52 | 78.93 | 0.9075 | -172.0 | -136.2 | |
| 0.00 | 1.39 | 0.00 | 1.62 | 11.38 | 310.07 | -65.27 | 80.05 | 0.9058 | -398.0 | -341.1 | |
| 0.70 | 18.48 | 0.82 | 21.93 | 10.91 | 309.61 | -65.73 | 80.56 | 0.9092 | -576.2 | -225.1 | |
| 13.77 | 96.39 | 16.23 | 113.95 | 9.52 | 309.65 | -65.70 | 82.09 | 0.9092 | -797.8 | -315.3 | |
| 4.36 | -5.00 | 5.25 | -5.00 | 10.28 | 309.04 | -66.30 | 81.23 | 0.9133 | -354.5 | 999999 | |
| 5.58 | -5.00 | 6.71 | -5.00 | 9.96 | 309.10 | -66.24 | 81.60 | 0.9130 | -425.4 | 999999 | |
| 3.57 | 12.99 | 4.54 | 16.43 | 12.13 | 307.62 | -67.73 | 79.18 | 0.9227 | -535.2 | -143.0 | |
| 1.74 | 59.78 | 2.18 | 76.35 | 10.99 | 308.11 | -67.24 | 80.44 | 0.9196 | -200.9 | 175.2 | |
| 2.18 | -9.00 | 2.72 | -9.00 | 10.51 | 308.17 | -67.18 | 80.96 | 0.9193 | -256.8 | 999999 | |
| 5.23 | -9.00 | 6.59 | -9.00 | 10.82 | 307.87 | -67.47 | 80.62 | 0.9213 | 497.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.98 | 9.42 | 308.15 | -67.19 | 82.15 | 0.9197 | -168.0 | -107.7 | |
| 1.92 | -9.00 | 2.44 | -9.00 | 10.07 | 307.72 | -67.62 | 81.42 | 0.9224 | -181.9 | 999999 | |
| 3.31 | -9.00 | 4.24 | -9.00 | 10.39 | 307.50 | -67.84 | 81.07 | 0.9238 | -204.8 | 999999 | |
| 0.00 | 1.92 | 0.00 | 2.60 | 12.37 | 306.14 | -69.20 | 78.90 | 0.9322 | -169.0 | -140.5 | |
| 0.00 | 1.48 | 0.00 | 1.88 | 9.05 | 307.74 | -67.60 | 82.54 | 0.9225 | 313.0 | 182.6 | |
| 0.00 | 2.53 | 0.00 | 3.33 | 10.96 | 306.81 | -68.53 | 80.43 | 0.9282 | 701.0 | 596.8 | |
| 0.00 | 0.78 | 0.00 | 1.09 | 12.35 | 305.62 | -69.72 | 78.91 | 0.9353 | -214.0 | -123.6 | |
| 2.27 | 26.49 | 3.10 | 37.14 | 11.10 | 305.97 | -69.38 | 80.25 | 0.9334 | 336.7 | 91.8 | |
| 1.92 | 5.84 | 2.64 | 8.05 | 11.57 | 305.72 | -69.63 | 79.75 | 0.9349 | 373.3 | 406.8 | |
| 1.13 | -19.00 | 1.60 | -19.00 | 11.58 | 305.17 | -70.17 | 79.72 | 0.9381 | -435.3 | 999999 | |
| 7.76 | -19.00 | 10.94 | -19.00 | 11.16 | 305.23 | -70.12 | 80.17 | 0.9379 | -452.6 | 999999 | |
| 2.09 | 12.20 | 3.21 | 19.15 | 13.19 | 303.36 | -71.98 | 77.96 | 0.9481 | -189.8 | 397.4 | |
| 0.00 | 1.83 | 0.00 | 2.85 | 13.43 | 303.08 | -72.27 | 77.69 | 0.9496 | 175.0 | 69.2 | |
| 0.00 | 3.66 | 0.00 | 5.74 | 12.23 | 303.02 | -72.32 | 78.95 | 0.9501 | 554.0 | 537.7 | |
| 0.00 | 5.58 | 0.00 | 8.33 | 10.44 | 304.03 | -71.31 | 80.89 | 0.9450 | 643.0 | 469.9 | |
| 0.00 | 1.13 | 0.00 | 1.78 | 11.35 | 303.00 | -72.35 | 79.89 | 0.9504 | 428.0 | 406.2 | |
| 1.05 | 3.31 | 1.67 | 5.30 | 11.77 | 302.62 | -72.73 | 79.43 | 0.9523 | 460.0 | 407.5 | |
| 0.00 | 4.36 | 0.00 | 7.10 | 12.13 | 302.26 | -73.09 | 79.03 | 0.9541 | 514.0 | 410.3 | |
| 0.00 | 0.61 | 0.00 | 0.96 | 11.07 | 302.97 | -72.37 | 80.18 | 0.9506 | 537.0 | 514.3 | |
| 0.00 | 1.05 | 0.00 | 1.67 | 10.77 | 302.74 | -72.60 | 80.48 | 0.9519 | 410.0 | 358.7 | |
| 1.83 | 14.90 | 2.99 | 24.76 | 11.37 | 302.25 | -73.09 | 79.83 | 0.9543 | -295.2 | 176.3 | |
| 2.53 | -32.00 | 4.17 | -32.00 | 11.50 | 302.06 | -73.29 | 79.68 | 0.9553 | 452.9 | 999999 | |
| 1.31 | -32.00 | 2.23 | -32.00 | 11.24 | 301.47 | -73.87 | 79.94 | 0.9582 | 415.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 2.35 | 12.46 | 300.54 | -74.80 | 78.62 | 0.9624 | 289.0 | 325.7 | |
| 0.00 | 1.13 | 0.00 | 2.06 | 11.96 | 300.36 | -74.99 | 79.14 | 0.9634 | 445.0 | 432.8 | |
| 0.00 | 2.09 | 0.00 | 3.86 | 11.66 | 300.11 | -75.23 | 79.43 | 0.9646 | 484.0 | 434.2 | |
| 0.00 | 3.83 | 0.00 | 8.35 | 14.12 | 297.59 | -77.76 | 76.78 | 0.9746 | 91.0 | 58.0 | |
| 9.85 | 31.64 | 19.51 | 62.86 | 12.68 | 298.97 | -76.38 | 78.32 | 0.9693 | 326.3 | 205.5 | |
| 0.00 | 3.40 | 0.00 | 7.22 | 13.75 | 297.87 | -77.47 | 77.18 | 0.9735 | 197.0 | 80.8 | |
| 0.00 | 1.22 | 0.00 | 2.31 | 11.19 | 299.74 | -75.61 | 79.90 | 0.9663 | 280.0 | 241.9 | |
| 1.66 | -39.00 | 3.37 | -39.00 | 12.30 | 298.52 | -76.83 | 78.69 | 0.9712 | -142.7 | 999999 | |
| 0.00 | 3.57 | 0.00 | 7.07 | 11.10 | 299.04 | -76.30 | 79.96 | 0.9693 | 128.0 | 47.3 | |
| 0.00 | 16.65 | 0.00 | 35.14 | 11.71 | 298.10 | -77.24 | 79.28 | 0.9730 | -168.0 | -205.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
