SDO HMI 2011-10-18 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.12 | 466.08 | 47.83 | 322.17 | 27.53 | 55.08 | 40.29 | 304.57 | 0.6978 | -725.4 | -296.3 | |
|
previous
or next observation for the same group /

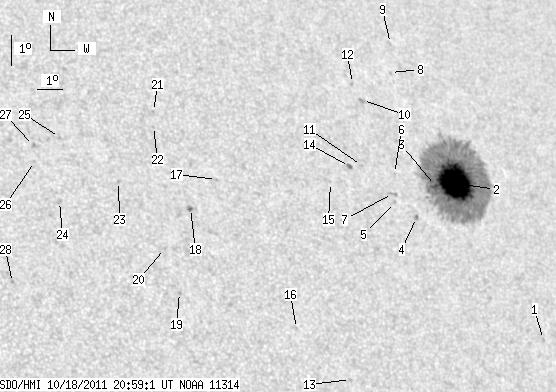

back to the solar disc SDO HMI 2011-10-18 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.91 | 22.39 | 57.43 | 42.63 | 296.52 | 0.7022 | -560.0 | -489.9 | |
| 65.02 | 427.92 | 45.18 | 297.79 | 27.50 | 55.66 | 40.87 | 304.16 | 0.7037 | -1193.0 | -318.8 | |
| 0.61 | -2.00 | 0.42 | -2.00 | 27.49 | 54.77 | 39.97 | 304.57 | 0.6945 | -1116.6 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.17 | 26.52 | 53.53 | 38.74 | 303.88 | 0.6768 | -870.0 | -805.8 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 27.05 | 52.80 | 38.01 | 304.99 | 0.6718 | -723.0 | -678.9 | |
| 0.00 | 1.05 | 0.00 | 0.71 | 27.97 | 53.18 | 38.39 | 306.03 | 0.6806 | -586.0 | -503.7 | |
| 0.00 | 3.14 | 0.00 | 2.10 | 27.34 | 52.84 | 38.04 | 305.37 | 0.6736 | -693.0 | -589.0 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 31.24 | 54.52 | 39.73 | 309.58 | 0.7113 | -522.0 | -425.7 | |
| 0.00 | 1.39 | 0.00 | 0.99 | 32.19 | 55.01 | 40.22 | 310.51 | 0.7211 | -570.0 | -445.8 | |
| 0.00 | 3.05 | 0.00 | 2.08 | 30.40 | 52.86 | 38.07 | 309.42 | 0.6907 | -727.0 | -656.7 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 28.31 | 51.91 | 37.11 | 307.19 | 0.6692 | -433.0 | -355.6 | |
| 0.00 | 1.22 | 0.00 | 0.83 | 30.98 | 52.69 | 37.89 | 310.26 | 0.6924 | -756.0 | -543.6 | |
| 0.00 | 1.39 | 0.00 | 0.86 | 21.62 | 49.20 | 34.41 | 299.02 | 0.6031 | 466.0 | 364.0 | |
| 1.92 | 2.27 | 1.27 | 1.50 | 28.30 | 51.39 | 36.60 | 307.48 | 0.6639 | 620.1 | 576.0 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 27.83 | 50.41 | 35.62 | 307.43 | 0.6509 | -496.0 | -475.0 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 23.30 | 47.57 | 32.78 | 302.61 | 0.5925 | 416.0 | 412.0 | |
| 0.00 | 1.39 | 0.00 | 0.87 | 28.16 | 45.90 | 31.11 | 310.98 | 0.6057 | 506.0 | 392.8 | |
| 1.57 | 2.35 | 0.96 | 1.43 | 27.28 | 44.61 | 29.82 | 310.73 | 0.5855 | 795.8 | 723.0 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 24.64 | 43.47 | 28.68 | 307.67 | 0.5532 | 745.0 | 580.7 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 26.05 | 43.27 | 28.48 | 310.02 | 0.5615 | 560.0 | 490.3 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 30.48 | 44.16 | 29.37 | 315.57 | 0.6061 | 630.0 | 532.6 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 29.99 | 44.00 | 29.21 | 315.05 | 0.6005 | 625.0 | 464.8 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 28.27 | 42.12 | 27.33 | 314.30 | 0.5672 | 758.0 | 640.1 | |
| 0.00 | 2.88 | 0.00 | 1.69 | 27.71 | 39.75 | 24.96 | 315.80 | 0.5380 | 344.0 | 405.2 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 29.78 | 40.29 | 25.50 | 318.18 | 0.5625 | 697.0 | 510.1 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 29.04 | 39.15 | 24.36 | 318.32 | 0.5444 | 724.0 | 553.1 | |
| 0.00 | 1.48 | 0.00 | 0.88 | 29.56 | 39.24 | 24.45 | 318.94 | 0.5504 | 752.0 | 677.4 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 25.20 | 37.48 | 22.69 | 314.41 | 0.4906 | 812.0 | 671.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
