Sunspot Group 11319

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11319	199.05	979.20	125.25	619.30	9.76	52.98	38.18	278.92	0.6182	-97.7	-112.1

previous or next observation for the same group / back to the solar disc

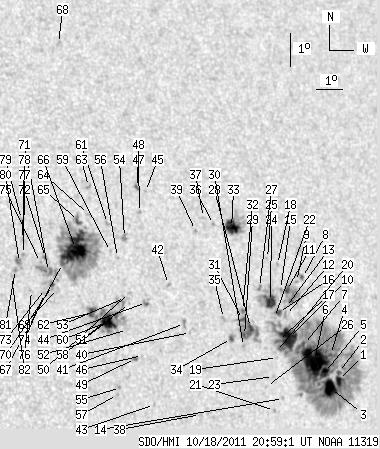

SDO HMI 2011-10-18 20:59:01 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	4.18	492.94	2.78	324.34	7.75	56.84	42.05	275.35	0.6689	-549.0	-352.9
2	1.57	-1.00	1.04	-1.00	7.99	56.87	42.08	275.70	0.6693	-502.3	999999
3	14.38	-1.00	9.50	-1.00	7.53	56.49	41.70	275.02	0.6644	-965.1	999999
4	0.78	-1.00	0.52	-1.00	8.54	56.62	41.83	276.55	0.6662	-455.9	999999
5	5.49	-1.00	3.62	-1.00	8.02	56.31	41.52	275.77	0.6620	-901.6	999999
6	38.52	-1.00	25.26	-1.00	8.41	55.96	41.16	276.36	0.6575	-1083.9	999999
7	1.92	-1.00	1.25	-1.00	8.91	55.58	40.79	277.14	0.6528	-717.8	999999
8	1.57	3.75	1.03	2.45	10.91	55.85	41.05	280.18	0.6575	661.2	507.6
9	0.00	1.13	0.00	0.74	10.81	55.59	40.79	280.05	0.6541	754.0	635.4
10	21.35	-1.00	13.82	-1.00	9.13	55.01	40.22	277.51	0.6454	-991.9	999999
11	2.70	22.75	1.75	14.80	10.56	55.15	40.35	279.72	0.6481	-390.8	12.8
12	0.00	2.88	0.00	1.86	9.82	54.99	40.20	278.58	0.6455	-533.0	-444.0
13	0.00	0.87	0.00	0.56	10.06	55.03	40.24	278.95	0.6461	-547.0	-465.8
14	0.00	1.39	0.00	0.90	7.35	54.60	39.81	274.75	0.6394	-657.0	-524.9
15	0.00	2.44	0.00	1.58	10.61	54.91	40.12	279.81	0.6451	-476.0	-356.6
16	3.14	4.88	2.02	3.14	9.93	54.73	39.94	278.77	0.6421	-817.7	-724.0
17	1.66	-1.00	1.07	-1.00	9.09	54.61	39.82	277.47	0.6401	-994.7	999999
18	0.00	1.48	0.00	0.96	11.36	54.92	40.12	280.98	0.6459	-729.0	-575.1
19	0.00	0.70	0.00	0.45	8.59	54.51	39.72	276.69	0.6384	-672.0	-558.4
20	0.00	1.83	0.00	1.17	8.77	54.49	39.70	276.97	0.6383	-662.0	-652.8
21	0.00	1.31	0.00	0.84	7.02	54.21	39.42	274.22	0.6342	-697.0	-616.3
22	0.00	1.83	0.00	1.18	9.79	54.55	39.76	278.57	0.6397	-860.0	-713.1
23	0.00	0.70	0.00	0.45	8.03	54.28	39.49	275.82	0.6353	-742.0	-631.0
24	11.07	27.45	7.11	17.61	10.27	54.46	39.67	279.34	0.6389	-984.7	-544.0
25	0.00	0.78	0.00	0.51	11.56	54.55	39.76	281.34	0.6414	-686.0	-619.8
26	0.00	0.87	0.00	0.56	7.75	53.98	39.19	275.38	0.6311	-714.0	-576.6
27	0.00	2.09	0.00	1.34	10.72	54.10	39.31	280.08	0.6345	-813.0	-712.4
28	3.05	31.20	1.93	19.75	9.55	53.58	38.78	278.27	0.6265	-1021.7	-780.3
29	1.13	-28.00	0.72	-28.00	9.32	53.31	38.52	277.93	0.6228	-1047.3	999999
30	0.00	1.13	0.00	0.71	9.00	53.23	38.44	277.41	0.6215	-783.0	-626.3
31	2.18	-28.00	1.38	-28.00	9.80	53.30	38.51	278.70	0.6229	-903.0	999999
32	0.00	3.14	0.00	1.98	10.07	53.34	38.54	279.13	0.6237	-879.0	-659.2
33	12.72	29.81	8.07	18.95	12.58	53.31	38.52	283.14	0.6264	927.2	213.9
34	1.83	4.18	1.15	2.63	9.26	52.80	38.01	277.87	0.6158	-871.4	-823.4
35	0.00	2.18	0.00	1.36	9.88	52.58	37.78	278.89	0.6132	-691.0	-598.8
36	0.00	0.96	0.00	0.60	12.71	52.63	37.84	283.48	0.6176	-713.0	-644.5
37	0.00	1.31	0.00	0.82	12.94	52.28	37.49	283.93	0.6134	-702.0	-428.6
38	0.00	1.92	0.00	1.18	7.07	51.38	36.59	274.29	0.5955	486.0	368.9
39	0.00	0.70	0.00	0.43	12.57	51.91	37.12	283.40	0.6077	-690.0	-585.6
40	0.00	1.31	0.00	0.80	9.53	51.27	36.48	278.45	0.5950	475.0	315.8
41	0.00	3.40	0.00	2.09	9.81	51.08	36.29	278.95	0.5926	686.0	462.0
42	0.00	1.83	0.00	1.12	11.01	50.64	35.85	281.04	0.5879	469.0	428.1
43	0.00	1.13	0.00	0.68	7.46	49.71	34.92	274.99	0.5719	560.0	456.9
44	0.00	3.75	0.00	2.26	10.52	49.75	34.96	280.34	0.5749	546.0	283.5
45	0.00	0.96	0.00	0.59	13.84	50.22	35.43	285.93	0.5876	-641.0	-445.3
46	0.00	0.96	0.00	0.58	8.95	49.42	34.62	277.62	0.5685	480.0	291.5
47	0.00	1.39	0.00	0.85	13.23	49.89	35.10	284.97	0.5816	682.0	551.7
48	1.66	2.79	1.01	1.70	13.98	49.94	35.15	286.24	0.5841	-755.8	-686.3
49	0.00	3.14	0.00	1.88	8.87	49.15	34.36	277.51	0.5646	735.0	574.2
50	0.00	1.31	0.00	0.78	10.85	49.17	34.37	281.02	0.5671	552.0	452.8
51	0.00	0.78	0.00	0.47	10.52	49.12	34.33	280.45	0.5660	361.0	271.0
52	0.00	1.31	0.00	0.78	9.75	48.96	34.16	279.10	0.5627	-35.0	-33.7
53	0.00	2.00	0.00	1.20	10.71	49.00	34.21	280.80	0.5646	460.0	488.9
54	0.00	3.49	0.00	2.10	12.51	49.22	34.42	283.90	0.5708	933.0	613.3
55	0.00	0.70	0.00	0.41	8.04	48.52	33.73	276.07	0.5550	787.0	759.1
56	0.00	1.31	0.00	0.78	11.92	48.87	34.08	282.96	0.5648	536.0	436.3
57	0.00	0.87	0.00	0.52	7.83	48.39	33.60	275.71	0.5531	850.0	707.8
58	2.00	73.12	1.19	43.42	10.22	48.61	33.82	279.99	0.5583	545.5	453.6
59	0.00	0.35	0.00	0.21	12.12	48.64	33.85	283.36	0.5619	569.0	399.2
60	13.16	-58.00	7.81	-58.00	10.03	48.29	33.50	279.69	0.5536	934.0	999999
61	0.00	2.18	0.00	1.30	12.96	48.66	33.86	284.84	0.5640	609.0	497.8
62	4.88	-58.00	2.88	-58.00	10.33	47.75	32.96	280.33	0.5461	854.5	999999
63	0.00	2.09	0.00	1.25	14.11	48.14	33.35	287.02	0.5597	627.0	462.7
64	0.00	2.09	0.00	1.24	13.27	48.00	33.21	285.58	0.5556	588.0	389.5
65	3.40	6.54	2.01	3.87	13.08	47.61	32.82	285.36	0.5496	670.7	376.6
66	40.53	166.12	23.89	98.01	12.27	47.38	32.59	283.97	0.5445	1025.1	303.9
67	1.92	-66.00	1.12	-66.00	11.85	46.85	32.06	283.33	0.5360	824.1	999999
68	0.00	2.00	0.00	1.21	18.49	47.86	33.07	294.68	0.5717	176.0	332.1
69	0.00	0.35	0.00	0.20	11.11	46.58	31.79	282.02	0.5306	559.0	505.5
70	1.13	6.36	0.66	3.70	11.21	46.41	31.62	282.24	0.5284	981.3	748.9
71	0.00	17.17	0.00	10.00	11.63	46.32	31.53	283.07	0.5279	871.0	800.1
72	1.13	2.18	0.66	1.27	12.06	46.27	31.48	283.88	0.5281	731.5	739.4
73	0.00	1.31	0.00	0.76	11.13	46.15	31.36	282.16	0.5245	765.0	669.2
74	0.00	0.44	0.00	0.25	10.98	46.10	31.31	281.89	0.5234	868.0	765.2
75	0.00	1.22	0.00	0.71	11.92	46.07	31.28	283.67	0.5250	820.0	718.9
76	0.00	1.48	0.00	0.86	11.10	45.65	30.86	282.22	0.5171	913.0	726.5
77	0.00	1.31	0.00	0.76	12.19	45.50	30.71	284.36	0.5173	816.0	695.1
78	0.00	1.31	0.00	0.76	12.64	45.53	30.73	285.21	0.5188	819.0	724.1
79	0.00	1.57	0.00	0.91	13.24	45.57	30.78	286.33	0.5212	838.0	693.9
80	0.00	6.10	0.00	3.52	11.95	45.33	30.54	283.96	0.5143	932.0	817.5
81	0.00	1.92	0.00	1.10	11.75	45.16	30.37	283.62	0.5114	932.0	723.0
82	0.00	0.96	0.00	0.55	11.55	45.00	30.21	283.27	0.5085	631.0	496.6

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
