group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	204.74	957.92	129.72	610.13	9.77	52.93	38.69	278.89	0.6250	-109.0	-115.6

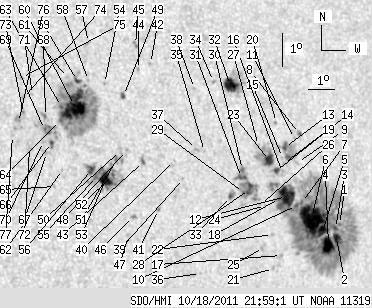

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-18 21:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.96	482.09	0.64	319.93	8.15	57.04	42.80	275.93	0.6786	-377.7	-347.6
2	4.45	-1.00	2.98	-1.00	7.77	56.87	42.63	275.38	0.6763	-523.0	999999
3	1.22	-1.00	0.82	-1.00	8.04	56.86	42.62	275.78	0.6763	-453.1	999999
4	12.90	-1.00	8.60	-1.00	7.55	56.51	42.27	275.05	0.6718	-936.2	999999
5	6.80	-1.00	4.52	-1.00	7.99	56.32	42.08	275.70	0.6693	-859.4	999999
6	40.44	-1.00	26.74	-1.00	8.40	55.93	41.69	276.33	0.6643	-1064.3	999999
7	1.39	-1.00	0.92	-1.00	8.90	55.59	41.35	277.11	0.6601	-706.5	999999
8	1.22	2.70	0.81	1.79	10.96	55.83	41.59	280.21	0.6645	645.4	466.4
9	0.00	1.48	0.00	0.98	10.10	55.61	41.37	278.93	0.6610	-210.0	-197.9
10	1.39	-1.00	0.91	-1.00	8.83	55.38	41.14	277.00	0.6573	-822.3	999999
11	0.00	0.87	0.00	0.57	10.83	55.60	41.36	280.03	0.6615	620.0	599.9
12	20.13	-1.00	13.13	-1.00	9.12	55.02	40.78	277.47	0.6527	-984.5	999999
13	2.61	19.96	1.71	13.09	10.58	55.16	40.92	279.70	0.6555	-418.9	8.3
14	0.00	1.13	0.00	0.74	10.11	55.04	40.80	278.98	0.6536	-520.0	-425.4
15	0.00	1.48	0.00	0.97	10.29	55.03	40.79	279.26	0.6536	-584.0	-455.9
16	0.00	1.83	0.00	1.19	9.84	54.96	40.72	278.58	0.6524	-493.0	-484.1
17	0.00	1.31	0.00	0.85	7.38	54.60	40.36	274.78	0.6468	-765.0	-606.9
18	1.66	-1.00	1.08	-1.00	9.08	54.73	40.49	277.42	0.6489	-1116.9	999999
19	2.79	4.53	1.81	2.94	9.92	54.73	40.49	278.72	0.6495	-769.4	-759.0
20	0.00	1.13	0.00	0.74	11.35	54.97	40.73	280.89	0.6537	-603.0	-541.2
21	0.00	1.39	0.00	0.90	7.01	54.25	40.01	274.21	0.6421	-646.0	-558.8
22	0.00	1.48	0.00	0.96	8.02	54.32	40.08	275.79	0.6431	-857.0	-696.0
23	7.06	24.32	4.57	15.72	10.23	54.50	40.26	279.22	0.6466	-981.6	-623.7
24	0.00	0.70	0.00	0.45	8.90	54.15	39.91	277.18	0.6412	-773.0	-580.0
25	0.00	2.79	0.00	1.79	7.66	53.92	39.68	275.23	0.6378	-705.0	-629.7
26	0.00	1.22	0.00	0.78	8.95	53.96	39.72	277.25	0.6387	-801.0	-637.4
27	0.00	1.83	0.00	1.18	10.71	54.14	39.90	280.00	0.6423	-772.0	-709.4
28	5.32	37.92	3.40	24.20	9.42	53.59	39.35	278.02	0.6340	-986.3	-762.3
29	1.05	-28.00	0.67	-28.00	9.34	53.35	39.11	277.92	0.6307	-991.5	999999
30	1.48	-28.00	0.94	-28.00	10.03	53.40	39.16	279.01	0.6320	-729.2	999999
31	4.62	-28.00	2.94	-28.00	9.80	53.33	39.09	278.64	0.6308	-812.1	999999
32	12.99	33.56	8.30	21.50	12.57	53.35	39.11	283.02	0.6342	876.0	179.5
33	1.83	4.97	1.16	3.14	9.26	52.83	38.59	277.82	0.6237	-777.7	-720.3
34	0.00	1.48	0.00	0.94	12.73	52.71	38.47	283.39	0.6260	-698.0	-547.8
35	0.00	0.87	0.00	0.55	10.66	52.02	37.78	280.17	0.6139	-672.0	-553.8
36	0.00	0.70	0.00	0.43	7.03	51.43	37.19	274.23	0.6038	612.0	526.2
37	0.00	2.00	0.00	1.25	10.73	51.72	37.48	280.33	0.6100	-899.0	-651.8
38	0.00	1.05	0.00	0.66	12.56	51.94	37.70	283.27	0.6155	-777.0	-617.2
39	0.00	0.70	0.00	0.43	9.90	51.11	36.87	279.02	0.6007	558.0	427.9
40	0.00	0.78	0.00	0.48	10.45	50.84	36.60	279.99	0.5976	-461.0	-382.1
41	0.00	1.31	0.00	0.80	9.03	50.06	35.82	277.66	0.5854	609.0	555.9
42	0.00	1.05	0.00	0.64	13.41	50.39	36.15	285.01	0.5964	600.0	431.5
43	1.48	3.31	0.90	2.01	10.49	49.68	35.44	280.21	0.5816	427.4	249.4
44	0.00	1.48	0.00	0.91	13.25	49.91	35.67	284.87	0.5895	639.0	537.3
45	0.00	2.44	0.00	1.50	14.01	49.93	35.69	286.13	0.5915	-857.0	-719.8
46	0.00	2.44	0.00	1.47	8.87	49.11	34.87	277.47	0.5720	782.0	616.5
47	0.00	2.79	0.00	1.68	8.31	48.87	34.63	276.51	0.5682	567.0	404.5
48	0.00	1.05	0.00	0.63	10.85	49.10	34.86	280.94	0.5739	472.0	426.4
49	2.53	2.79	1.53	1.69	12.50	49.22	34.98	283.77	0.5785	578.9	507.3
50	0.00	3.57	0.00	2.15	10.87	48.88	34.64	281.00	0.5708	396.0	352.1
51	1.22	6.01	0.73	3.62	10.60	48.69	34.45	280.57	0.5679	678.5	582.7
52	1.22	63.28	0.73	37.77	10.16	48.53	34.29	279.82	0.5649	457.7	412.8
53	11.94	-52.00	7.13	-52.00	10.03	48.22	33.98	279.63	0.5604	958.6	999999
54	0.00	0.96	0.00	0.58	12.90	48.58	34.34	284.62	0.5704	570.0	490.8
55	2.79	-52.00	1.66	-52.00	10.14	47.90	33.66	279.87	0.5560	958.8	999999
56	4.79	-52.00	2.85	-52.00	10.36	47.75	33.51	280.29	0.5540	862.6	999999
57	0.00	1.66	0.00	0.99	14.16	48.19	33.95	286.92	0.5682	618.0	488.2
58	0.00	1.22	0.00	0.73	13.02	48.00	33.76	284.99	0.5627	411.0	285.4
59	2.44	173.89	1.45	103.22	13.05	47.60	33.36	285.14	0.5572	632.7	317.6
60	38.79	-59.00	23.01	-59.00	12.30	47.38	33.14	283.87	0.5524	1005.9	999999
61	0.00	1.57	0.00	0.93	13.15	47.25	33.01	285.44	0.5525	108.0	91.2
62	0.00	0.96	0.00	0.56	10.41	46.70	32.46	280.57	0.5391	641.0	454.2
63	1.31	-59.00	0.77	-59.00	12.30	46.91	32.67	283.99	0.5456	866.5	999999
64	1.31	-59.00	0.77	-59.00	11.88	46.81	32.57	283.25	0.5434	817.5	999999
65	0.00	1.05	0.00	0.61	9.92	46.36	32.12	279.72	0.5334	722.0	590.7
66	1.39	3.40	0.82	1.99	11.24	46.40	32.16	282.17	0.5363	952.4	837.0
67	0.00	3.40	0.00	1.99	10.95	46.19	31.95	281.68	0.5326	811.0	695.4
68	0.44	3.40	0.26	1.99	12.03	46.29	32.05	283.66	0.5362	869.4	667.6
69	0.78	16.56	0.46	9.70	11.64	46.20	31.96	282.97	0.5342	1044.3	795.1
70	0.00	2.00	0.00	1.17	11.28	46.12	31.88	282.32	0.5323	847.0	650.5
71	0.00	0.61	0.00	0.36	12.71	45.91	31.67	285.04	0.5325	686.0	556.9
72	0.00	3.84	0.00	2.23	11.13	45.60	31.36	282.16	0.5245	782.0	651.6
73	0.00	2.53	0.00	1.47	12.16	45.52	31.28	284.13	0.5254	856.0	696.2
74	0.00	1.05	0.00	0.61	12.61	45.54	31.30	284.97	0.5269	782.0	690.1
75	0.00	2.27	0.00	1.32	13.24	45.59	31.35	286.13	0.5294	843.0	623.5
76	0.00	8.19	0.00	4.75	11.90	45.30	31.06	283.70	0.5218	882.0	771.3
77	0.00	1.57	0.00	0.91	11.52	45.04	30.80	283.05	0.5172	787.0	552.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
