SDO HMI 2011-10-18 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.08 | 83.42 | 18.37 | 44.99 | -14.58 | 2.75 | -11.49 | 150.83 | 0.3969 | -133.9 | -68.8 | |
|
previous
or next observation for the same group /

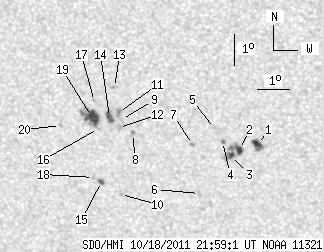

back to the solar disc SDO HMI 2011-10-18 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.23 | 8.02 | 2.79 | 4.28 | -14.80 | 5.99 | -8.25 | 158.27 | 0.3763 | 1071.5 | 845.4 | |
| 4.97 | 18.04 | 2.66 | 9.68 | -14.97 | 5.42 | -8.82 | 157.10 | 0.3823 | 1100.9 | 759.5 | |
| 2.79 | -2.00 | 1.50 | -2.00 | -15.17 | 5.16 | -9.08 | 156.71 | 0.3868 | 918.2 | 999999 | |
| 0.35 | 1.66 | 0.19 | 0.89 | -14.73 | 4.90 | -9.34 | 155.63 | 0.3820 | 917.2 | 827.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -14.32 | 4.67 | -9.57 | 154.62 | 0.3776 | 810.0 | 683.0 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -16.41 | 4.10 | -10.14 | 155.67 | 0.4117 | 645.0 | 548.8 | |
| 0.00 | 1.83 | 0.00 | 0.98 | -14.84 | 3.96 | -10.28 | 153.62 | 0.3901 | 1016.0 | 760.2 | |
| 0.00 | 2.35 | 0.00 | 1.27 | -14.53 | 2.08 | -12.16 | 149.22 | 0.4001 | -987.0 | -667.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -14.09 | 1.76 | -12.48 | 147.97 | 0.3968 | -773.0 | -733.6 | |
| 0.00 | 1.66 | 0.00 | 0.91 | -16.49 | 1.58 | -12.66 | 150.68 | 0.4309 | -717.0 | -598.4 | |
| 0.00 | 3.05 | 0.00 | 1.64 | -13.87 | 1.68 | -12.56 | 147.49 | 0.3946 | -1119.0 | -957.4 | |
| 0.00 | 3.31 | 0.00 | 1.79 | -14.34 | 1.65 | -12.59 | 148.10 | 0.4012 | -588.0 | -638.3 | |
| 0.00 | 2.53 | 0.00 | 1.36 | -13.08 | 1.60 | -12.64 | 146.18 | 0.3848 | -887.0 | -693.2 | |
| 5.58 | 7.06 | 3.01 | 3.81 | -14.03 | 1.39 | -12.85 | 147.13 | 0.3993 | -978.0 | -917.9 | |
| 2.35 | 3.05 | 1.29 | 1.67 | -16.08 | 1.00 | -13.24 | 149.08 | 0.4300 | 989.0 | 804.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.39 | 1.02 | -13.22 | 146.89 | 0.4073 | -530.0 | -495.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -13.54 | 0.94 | -13.30 | 145.52 | 0.3967 | -878.0 | -705.2 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -15.96 | 0.76 | -13.48 | 148.46 | 0.4304 | 771.0 | 535.7 | |
| 12.81 | 21.53 | 6.93 | 11.65 | -14.05 | 0.85 | -13.39 | 146.07 | 0.4042 | -1008.8 | -627.5 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -14.32 | 359.81 | -14.43 | 144.48 | 0.4172 | -824.0 | -535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
