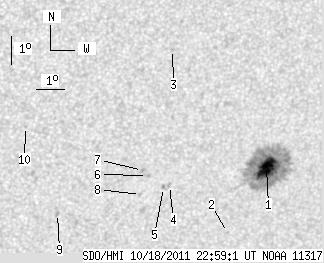

SDO HMI 2011-10-18 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.22 | 168.68 | 13.00 | 108.22 | -26.86 | 36.73 | 23.04 | 213.35 | 0.6372 | 937.6 | 379.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-18 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.22 | 154.64 | 13.00 | 99.46 | -26.85 | 37.10 | 23.41 | 213.79 | 0.6397 | 1106.1 | 359.5 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -29.14 | 36.18 | 22.49 | 210.66 | 0.6576 | 423.0 | 371.2 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -22.62 | 33.01 | 19.32 | 213.12 | 0.5610 | 765.0 | 593.5 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -27.36 | 33.69 | 20.01 | 209.41 | 0.6211 | 592.0 | 520.8 | |
| 0.00 | 2.27 | 0.00 | 1.43 | -27.42 | 33.49 | 19.80 | 209.11 | 0.6204 | 746.0 | 569.8 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -26.97 | 32.84 | 19.15 | 208.71 | 0.6109 | 668.0 | 591.5 | |
| 0.00 | 1.92 | 0.00 | 1.19 | -26.79 | 32.63 | 18.94 | 208.61 | 0.6074 | 872.0 | 653.8 | |
| 0.00 | 1.74 | 0.00 | 1.10 | -27.64 | 32.71 | 19.02 | 207.97 | 0.6179 | 768.0 | 557.8 | |
| 0.00 | 1.83 | 0.00 | 1.14 | -28.23 | 29.86 | 16.18 | 203.91 | 0.6079 | 903.0 | 698.0 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -25.12 | 28.32 | 14.63 | 204.23 | 0.5595 | 511.0 | 488.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
