SDO HMI 2011-10-18 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.19 | 20.48 | 3.01 | 14.03 | 24.21 | 332.46 | -41.23 | 60.42 | 0.6929 | -624.0 | -508.3 | |
|
previous
or next observation for the same group /

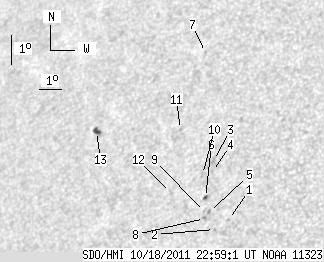

back to the solar disc SDO HMI 2011-10-18 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.63 | 22.80 | 335.12 | -38.57 | 61.27 | 0.6578 | -696.0 | -558.4 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 22.45 | 334.65 | -39.04 | 61.98 | 0.6617 | -601.0 | -482.3 | |
| 0.00 | 2.53 | 0.00 | 1.70 | 24.59 | 333.84 | -39.85 | 59.31 | 0.6799 | -716.0 | -586.7 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 24.25 | 333.93 | -39.76 | 59.75 | 0.6774 | -616.0 | -516.1 | |
| 0.00 | 1.48 | 0.00 | 0.98 | 23.00 | 334.25 | -39.43 | 61.37 | 0.6685 | -736.0 | -664.5 | |
| 0.96 | 1.48 | 0.64 | 0.99 | 23.42 | 333.93 | -39.75 | 60.91 | 0.6739 | -644.5 | -450.3 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 27.97 | 332.04 | -41.65 | 55.58 | 0.7138 | -530.0 | -420.4 | |
| 0.00 | 1.83 | 0.00 | 1.22 | 22.77 | 334.12 | -39.56 | 61.75 | 0.6691 | -805.0 | -613.3 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 22.99 | 334.05 | -39.64 | 61.47 | 0.6708 | -534.0 | -495.6 | |
| 0.00 | 1.92 | 0.00 | 1.29 | 24.13 | 333.54 | -40.14 | 60.09 | 0.6812 | -466.0 | -420.2 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 25.48 | 332.04 | -41.65 | 58.89 | 0.7030 | -448.0 | -329.8 | |
| 0.00 | 1.48 | 0.00 | 1.01 | 23.49 | 332.41 | -41.28 | 61.46 | 0.6912 | -558.0 | -384.4 | |
| 3.23 | 4.36 | 2.37 | 3.20 | 25.17 | 328.34 | -45.35 | 60.72 | 0.7405 | -685.4 | -490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
