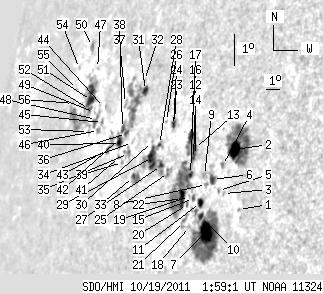

SDO HMI 2011-10-19 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.83 | 501.61 | 113.97 | 611.78 | 11.28 | 305.59 | -66.45 | 80.12 | 0.9118 | -207.8 | 18.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.38 | 10.24 | 311.53 | -60.50 | 81.40 | 0.8683 | -578.0 | -483.8 | |
| 12.21 | 68.45 | 12.43 | 69.22 | 11.98 | 310.66 | -61.38 | 79.39 | 0.8756 | -670.1 | -371.3 | |
| 0.00 | 1.66 | 0.00 | 1.70 | 10.63 | 310.45 | -61.59 | 80.94 | 0.8773 | -577.0 | -504.1 | |
| 0.00 | 2.79 | 0.00 | 2.89 | 11.45 | 310.09 | -61.95 | 80.00 | 0.8803 | -489.0 | -334.7 | |
| 0.00 | 1.66 | 0.00 | 1.72 | 10.69 | 310.10 | -61.93 | 80.86 | 0.8802 | -601.0 | -547.6 | |
| 3.75 | 6.02 | 3.95 | 6.33 | 10.98 | 309.60 | -62.43 | 80.53 | 0.8842 | -588.1 | -423.0 | |
| 15.09 | 100.02 | 15.83 | 105.09 | 9.42 | 309.75 | -62.29 | 82.30 | 0.8833 | -889.1 | -357.7 | |
| 0.00 | 2.18 | 0.00 | 2.32 | 10.80 | 309.27 | -62.77 | 80.73 | 0.8869 | -547.0 | -460.9 | |
| 0.00 | 3.05 | 0.00 | 3.27 | 11.06 | 309.04 | -63.00 | 80.44 | 0.8887 | 195.0 | 126.9 | |
| 2.18 | -7.00 | 2.32 | -7.00 | 9.83 | 309.28 | -62.76 | 81.82 | 0.8869 | -485.8 | 999999 | |
| 3.84 | 5.06 | 4.11 | 5.42 | 10.24 | 309.07 | -62.96 | 81.36 | 0.8885 | -499.7 | -384.1 | |
| 0.44 | 22.41 | 0.48 | 25.01 | 11.59 | 308.20 | -63.83 | 79.83 | 0.8951 | 432.2 | -216.0 | |
| 2.53 | -12.00 | 2.80 | -12.00 | 11.79 | 308.05 | -63.99 | 79.60 | 0.8963 | 320.6 | 999999 | |
| 0.70 | -12.00 | 0.77 | -12.00 | 11.49 | 308.11 | -63.93 | 79.94 | 0.8959 | -221.4 | 999999 | |
| 1.22 | 2.53 | 1.33 | 2.75 | 10.32 | 308.57 | -63.47 | 81.26 | 0.8925 | -486.6 | -395.1 | |
| 5.67 | -12.00 | 6.36 | -12.00 | 12.12 | 307.69 | -64.35 | 79.23 | 0.8990 | -618.1 | 999999 | |
| 1.40 | 66.19 | 1.54 | 74.51 | 11.00 | 308.10 | -63.94 | 80.48 | 0.8960 | -254.2 | 273.8 | |
| 0.00 | 1.40 | 0.00 | 1.52 | 9.47 | 308.59 | -63.45 | 82.21 | 0.8924 | 6.0 | -9.0 | |
| 0.00 | 1.48 | 0.00 | 1.63 | 10.35 | 308.28 | -63.76 | 81.21 | 0.8947 | -332.0 | -360.4 | |
| 1.22 | 2.01 | 1.35 | 2.21 | 10.11 | 308.23 | -63.81 | 81.49 | 0.8951 | -233.9 | -286.4 | |
| 0.00 | 5.76 | 0.00 | 6.35 | 9.59 | 308.21 | -63.83 | 82.07 | 0.8954 | -133.0 | -121.8 | |
| 6.98 | -17.00 | 7.80 | -17.00 | 10.25 | 307.83 | -64.21 | 81.32 | 0.8981 | -281.6 | 999999 | |
| 1.57 | 5.23 | 1.85 | 6.18 | 12.40 | 306.31 | -65.72 | 78.91 | 0.9090 | 143.4 | 172.5 | |
| 0.87 | -23.00 | 1.03 | -23.00 | 12.34 | 306.27 | -65.77 | 78.98 | 0.9093 | -179.8 | 999999 | |
| 0.00 | 5.58 | 0.00 | 6.52 | 10.93 | 306.54 | -65.49 | 80.54 | 0.9075 | 534.0 | 518.8 | |
| 0.00 | 0.70 | 0.00 | 0.84 | 12.41 | 305.70 | -66.33 | 78.90 | 0.9133 | -146.0 | -106.1 | |
| 2.35 | 37.41 | 2.82 | 45.80 | 11.09 | 305.95 | -66.09 | 80.35 | 0.9117 | 480.8 | 169.3 | |
| 1.05 | -27.00 | 1.27 | -27.00 | 11.69 | 305.52 | -66.52 | 79.68 | 0.9147 | 398.2 | 999999 | |
| 12.47 | -27.00 | 15.36 | -27.00 | 11.26 | 305.17 | -66.86 | 80.14 | 0.9171 | -509.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 1.08 | 11.73 | 304.95 | -67.09 | 79.62 | 0.9186 | -178.0 | -207.7 | |
| 3.49 | 45.69 | 4.56 | 61.74 | 13.17 | 303.59 | -68.45 | 78.04 | 0.9273 | -293.0 | 481.0 | |
| 0.00 | 0.70 | 0.00 | 0.92 | 13.45 | 303.33 | -68.70 | 77.73 | 0.9289 | -110.0 | -84.5 | |
| 1.05 | 7.32 | 1.35 | 9.40 | 10.58 | 303.97 | -68.07 | 80.85 | 0.9253 | 610.8 | 527.1 | |
| 0.00 | 0.70 | 0.00 | 0.92 | 11.56 | 303.39 | -68.64 | 79.77 | 0.9288 | 562.0 | 501.5 | |
| 0.00 | 4.36 | 0.00 | 5.81 | 11.21 | 303.24 | -68.80 | 80.14 | 0.9298 | 629.0 | 509.0 | |
| 1.83 | -31.00 | 2.49 | -31.00 | 11.78 | 302.76 | -69.28 | 79.52 | 0.9327 | 590.7 | 999999 | |
| 0.00 | 2.35 | 0.00 | 3.28 | 12.64 | 302.16 | -69.87 | 78.58 | 0.9362 | 529.0 | 427.6 | |
| 2.09 | -31.00 | 2.89 | -31.00 | 11.89 | 302.34 | -69.70 | 79.39 | 0.9353 | 471.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.42 | 10.91 | 302.88 | -69.16 | 80.46 | 0.9321 | 558.0 | 484.4 | |
| 2.27 | 16.66 | 3.13 | 23.55 | 11.44 | 302.42 | -69.62 | 79.87 | 0.9349 | -248.8 | 281.9 | |
| 0.00 | 1.83 | 0.00 | 2.52 | 11.06 | 302.54 | -69.50 | 80.29 | 0.9342 | 291.0 | 122.6 | |
| 2.62 | -40.00 | 3.64 | -40.00 | 11.54 | 302.18 | -69.85 | 79.76 | 0.9363 | 433.0 | 999999 | |
| 2.27 | -40.00 | 3.27 | -40.00 | 11.17 | 301.39 | -70.65 | 80.13 | 0.9410 | 326.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 1.06 | 12.36 | 300.37 | -71.67 | 78.84 | 0.9466 | 460.0 | 448.6 | |
| 0.00 | 2.18 | 0.00 | 3.30 | 11.91 | 300.47 | -71.57 | 79.32 | 0.9461 | 468.0 | 472.4 | |
| 0.00 | 2.44 | 0.00 | 3.73 | 11.64 | 300.24 | -71.80 | 79.59 | 0.9474 | 553.0 | 480.4 | |
| 0.00 | 0.78 | 0.00 | 1.28 | 13.41 | 298.87 | -73.16 | 77.68 | 0.9543 | 335.0 | 314.0 | |
| 0.00 | 6.45 | 0.00 | 10.07 | 11.94 | 299.84 | -72.19 | 79.26 | 0.9495 | 513.0 | 416.1 | |
| 0.00 | 1.05 | 0.00 | 1.66 | 12.12 | 299.52 | -72.52 | 79.05 | 0.9512 | 403.0 | 367.5 | |
| 0.00 | 4.27 | 0.00 | 7.39 | 13.99 | 297.83 | -74.21 | 77.04 | 0.9594 | 279.0 | 185.2 | |
| 4.62 | 54.15 | 7.54 | 91.14 | 12.44 | 298.97 | -73.06 | 78.70 | 0.9540 | 466.8 | -8.9 | |
| 1.05 | -51.00 | 1.70 | -51.00 | 12.16 | 298.96 | -73.08 | 78.99 | 0.9541 | 374.2 | 999999 | |
| 0.00 | 1.40 | 0.00 | 2.23 | 11.52 | 299.30 | -72.74 | 79.68 | 0.9525 | 146.0 | 89.7 | |
| 0.00 | 1.31 | 0.00 | 2.38 | 13.24 | 296.97 | -75.07 | 77.80 | 0.9635 | -368.0 | -278.3 | |
| 0.00 | 1.05 | 0.00 | 1.87 | 12.62 | 297.26 | -74.78 | 78.45 | 0.9623 | -388.0 | -342.2 | |
| 0.00 | 1.31 | 0.00 | 2.37 | 12.18 | 297.15 | -74.89 | 78.90 | 0.9629 | -362.0 | -312.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
