SDO HMI 2011-10-19 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.77 | 301.77 | 46.37 | 201.48 | -12.43 | 49.10 | 38.16 | 244.30 | 0.6710 | -236.8 | -169.4 | |
|
previous
or next observation for the same group /

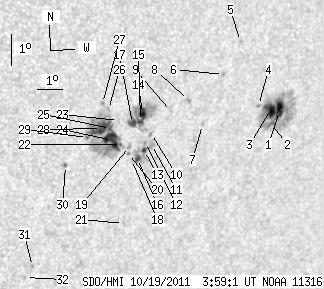

back to the solar disc SDO HMI 2011-10-19 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 97.42 | 6.36 | 68.89 | -12.19 | 53.15 | 42.21 | 246.86 | 0.7165 | 754.1 | 202.6 | |
| 1.66 | -1.00 | 1.17 | -1.00 | -12.58 | 52.90 | 41.96 | 246.23 | 0.7154 | 567.1 | 999999 | |
| 10.64 | -1.00 | 7.48 | -1.00 | -12.13 | 52.77 | 41.83 | 246.75 | 0.7120 | 998.9 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.15 | -11.97 | 52.25 | 41.31 | 246.71 | 0.7054 | 800.0 | 723.6 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -9.91 | 51.17 | 40.23 | 248.97 | 0.6840 | 548.0 | 441.0 | |
| 0.00 | 1.40 | 0.00 | 0.94 | -10.90 | 50.65 | 39.71 | 247.35 | 0.6822 | 673.0 | 475.2 | |
| 0.00 | 1.74 | 0.00 | 1.18 | -12.42 | 50.08 | 39.14 | 244.97 | 0.6827 | 605.0 | 499.0 | |
| 0.00 | 2.09 | 0.00 | 1.39 | -11.63 | 49.39 | 38.45 | 245.67 | 0.6708 | 841.0 | 683.7 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -11.93 | 48.78 | 37.84 | 244.91 | 0.6651 | 393.0 | 404.1 | |
| 0.00 | 1.66 | 0.00 | 1.09 | -12.58 | 48.12 | 37.18 | 243.62 | 0.6607 | -448.0 | -348.5 | |
| 0.00 | 5.41 | 0.00 | 3.57 | -12.93 | 48.18 | 37.24 | 243.17 | 0.6633 | 141.0 | 103.2 | |
| 0.00 | 1.22 | 0.00 | 0.80 | -12.85 | 47.93 | 36.99 | 243.13 | 0.6600 | -524.0 | -437.8 | |
| 2.18 | 25.21 | 1.44 | 16.59 | -13.10 | 47.94 | 37.00 | 242.78 | 0.6614 | -577.0 | -205.7 | |
| 5.84 | 46.05 | 3.81 | 30.01 | -11.93 | 47.67 | 36.73 | 244.26 | 0.6519 | -918.3 | -403.6 | |
| 1.83 | -14.00 | 1.19 | -14.00 | -12.18 | 47.63 | 36.69 | 243.89 | 0.6527 | -739.6 | 999999 | |
| 2.97 | -13.00 | 1.95 | -13.00 | -13.34 | 47.71 | 36.77 | 242.32 | 0.6601 | -518.9 | 999999 | |
| 3.92 | -14.00 | 2.55 | -14.00 | -12.22 | 47.33 | 36.39 | 243.64 | 0.6495 | -882.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -13.36 | 47.49 | 36.55 | 242.15 | 0.6576 | -169.0 | -177.4 | |
| 0.00 | 2.44 | 0.00 | 1.59 | -12.94 | 47.34 | 36.40 | 242.63 | 0.6535 | -457.0 | -450.4 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -13.16 | 47.34 | 36.40 | 242.33 | 0.6547 | -634.0 | -576.9 | |
| 0.00 | 1.74 | 0.00 | 1.16 | -15.39 | 47.57 | 36.63 | 239.45 | 0.6703 | -553.0 | -407.6 | |
| 1.22 | 102.04 | 0.79 | 65.56 | -12.86 | 46.98 | 36.04 | 242.52 | 0.6488 | -509.8 | -537.6 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -12.09 | 46.78 | 35.84 | 243.48 | 0.6422 | -577.0 | -465.6 | |
| 14.83 | -22.00 | 9.58 | -22.00 | -12.71 | 46.65 | 35.71 | 242.52 | 0.6441 | -850.8 | 999999 | |
| 1.22 | -22.00 | 0.79 | -22.00 | -12.33 | 46.52 | 35.58 | 242.97 | 0.6403 | -802.7 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.17 | -11.73 | 46.35 | 35.41 | 243.73 | 0.6349 | -756.0 | -588.3 | |
| 0.00 | 1.31 | 0.00 | 0.83 | -11.52 | 46.09 | 35.15 | 243.86 | 0.6307 | -862.0 | -754.4 | |
| 12.65 | -22.00 | 8.10 | -22.00 | -12.31 | 46.17 | 35.23 | 242.78 | 0.6361 | -968.8 | 999999 | |
| 0.70 | -22.00 | 0.44 | -22.00 | -12.56 | 45.69 | 34.75 | 242.10 | 0.6318 | -722.2 | 999999 | |
| 1.13 | 1.74 | 0.72 | 1.11 | -13.40 | 45.00 | 34.06 | 240.42 | 0.6288 | 696.9 | 459.4 | |
| 0.00 | 1.40 | 0.00 | 0.90 | -16.58 | 44.35 | 33.41 | 235.56 | 0.6422 | -783.0 | -525.4 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -16.92 | 44.15 | 33.21 | 234.95 | 0.6424 | -602.0 | -534.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
