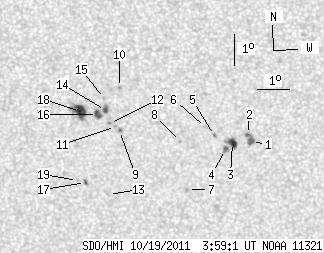

SDO HMI 2011-10-19 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.53 | 64.90 | 17.35 | 34.60 | -14.47 | 2.76 | -8.18 | 158.16 | 0.3721 | -175.2 | -36.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.27 | 7.15 | 1.20 | 3.79 | -14.86 | 6.20 | -4.74 | 167.11 | 0.3597 | 968.9 | 894.5 | |
| 1.48 | -1.00 | 0.79 | -1.00 | -14.64 | 6.08 | -4.86 | 166.65 | 0.3566 | 1070.2 | 999999 | |
| 5.41 | 7.94 | 2.87 | 4.22 | -14.90 | 5.61 | -5.33 | 165.60 | 0.3626 | 1077.6 | 752.4 | |
| 1.74 | 3.40 | 0.93 | 1.81 | -15.12 | 5.39 | -5.55 | 165.19 | 0.3670 | 794.2 | 757.7 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -14.68 | 5.06 | -5.88 | 164.01 | 0.3615 | 868.0 | 750.4 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -14.43 | 4.78 | -6.16 | 163.10 | 0.3588 | 761.0 | 646.1 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -16.42 | 4.16 | -6.78 | 163.16 | 0.3926 | 736.0 | 660.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.88 | 3.99 | -6.95 | 161.49 | 0.3698 | 854.0 | 686.1 | |
| 1.13 | 1.22 | 0.61 | 0.65 | -14.56 | 2.10 | -8.84 | 156.59 | 0.3758 | -717.5 | -877.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -13.20 | 2.16 | -8.78 | 155.15 | 0.3553 | -939.0 | -821.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -14.44 | 1.98 | -8.96 | 156.17 | 0.3748 | -1013.0 | -787.4 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -14.34 | 1.80 | -9.14 | 155.63 | 0.3746 | -955.0 | -805.7 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -16.62 | 1.67 | -9.27 | 157.71 | 0.4089 | -706.0 | -465.6 | |
| 2.88 | 4.01 | 1.53 | 2.14 | -13.93 | 1.69 | -9.25 | 154.90 | 0.3693 | -1048.8 | -817.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -13.55 | 1.68 | -9.26 | 154.41 | 0.3638 | -848.0 | -707.1 | |
| 4.71 | 4.88 | 2.51 | 2.61 | -14.06 | 1.44 | -9.50 | 154.45 | 0.3730 | -953.3 | -916.5 | |
| 1.40 | 2.09 | 0.76 | 1.13 | -16.24 | 0.96 | -9.98 | 155.81 | 0.4079 | 824.9 | 693.8 | |
| 11.51 | 22.68 | 6.15 | 12.11 | -13.98 | 0.91 | -10.03 | 153.13 | 0.3755 | -1028.3 | -576.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -16.18 | 0.71 | -10.23 | 155.22 | 0.4087 | 744.0 | 519.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
