SDO HMI 2011-10-19 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.14 | 15.34 | 2.17 | 10.58 | -21.16 | 334.78 | -35.62 | 128.58 | 0.6969 | -202.7 | -18.4 | |
|
previous
or next observation for the same group /

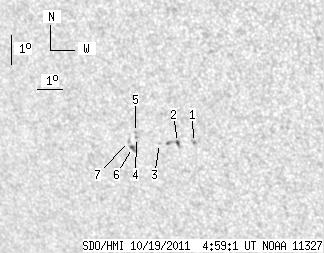

back to the solar disc SDO HMI 2011-10-19 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.01 | 0.00 | 1.35 | -21.07 | 336.24 | -34.15 | 129.57 | 0.6820 | 708.0 | 568.0 | |
| 1.48 | 5.23 | 1.01 | 3.57 | -21.11 | 335.60 | -34.79 | 129.13 | 0.6885 | 489.4 | 485.6 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -21.18 | 334.88 | -35.52 | 128.67 | 0.6961 | 340.0 | 241.2 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -21.04 | 334.01 | -36.39 | 127.86 | 0.7036 | -889.0 | -785.0 | |
| 0.00 | 1.13 | 0.00 | 0.79 | -20.87 | 334.01 | -36.38 | 127.66 | 0.7024 | -775.0 | -657.2 | |
| 1.66 | 3.49 | 1.16 | 2.44 | -21.39 | 333.75 | -36.65 | 128.09 | 0.7085 | -665.4 | -598.0 | |
| 0.00 | 1.74 | 0.00 | 1.22 | -21.19 | 333.64 | -36.75 | 127.78 | 0.7082 | -560.0 | -453.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
