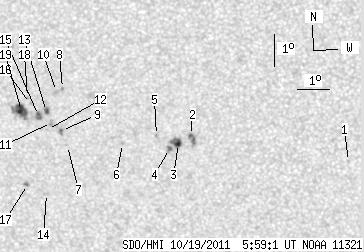

SDO HMI 2011-10-19 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.59 | 60.28 | 13.08 | 32.06 | -14.43 | 2.91 | -6.93 | 161.19 | 0.3646 | -360.5 | 36.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.46 | 11.02 | 1.17 | 183.14 | 0.3611 | 769.0 | 511.7 | |
| 1.22 | 6.37 | 0.65 | 3.37 | -14.64 | 6.13 | -3.71 | 169.72 | 0.3526 | 1072.8 | 903.4 | |
| 3.05 | 7.76 | 1.62 | 4.11 | -14.90 | 5.76 | -4.09 | 168.85 | 0.3579 | 1056.9 | 1030.1 | |
| 1.57 | 3.40 | 0.83 | 1.81 | -15.06 | 5.47 | -4.37 | 168.20 | 0.3614 | 813.3 | 669.4 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -14.65 | 5.08 | -4.76 | 166.90 | 0.3563 | 848.0 | 630.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -14.92 | 4.02 | -5.83 | 164.33 | 0.3647 | 824.0 | 479.7 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -15.00 | 2.30 | -7.54 | 160.13 | 0.3745 | -703.0 | -511.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -13.19 | 2.21 | -7.63 | 158.05 | 0.3476 | -906.0 | -769.4 | |
| 1.13 | 2.35 | 0.60 | 1.25 | -14.53 | 2.13 | -7.71 | 159.25 | 0.3682 | -874.8 | -653.9 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -13.29 | 2.02 | -7.82 | 157.67 | 0.3502 | -641.0 | -499.5 | |
| 0.00 | 2.01 | 0.00 | 1.07 | -14.28 | 1.83 | -8.01 | 158.26 | 0.3662 | -892.0 | -730.9 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -14.50 | 1.70 | -8.15 | 158.17 | 0.3704 | -594.0 | -561.4 | |
| 2.35 | 3.05 | 1.25 | 1.62 | -13.93 | 1.69 | -8.16 | 157.53 | 0.3619 | -1012.0 | -944.2 | |
| 0.00 | 2.01 | 0.00 | 1.08 | -16.55 | 1.59 | -8.26 | 159.87 | 0.4019 | -512.0 | -523.6 | |
| 4.10 | 4.54 | 2.18 | 2.41 | -14.06 | 1.44 | -8.41 | 157.05 | 0.3654 | -984.7 | -720.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -13.68 | 1.20 | -8.64 | 156.05 | 0.3613 | -935.0 | -682.7 | |
| 0.70 | 2.01 | 0.38 | 1.08 | -16.27 | 1.00 | -8.85 | 158.31 | 0.4010 | 794.9 | 787.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -13.49 | 1.11 | -8.73 | 155.62 | 0.3591 | -710.0 | -594.1 | |
| 10.47 | 17.36 | 5.57 | 9.24 | -13.91 | 0.91 | -8.93 | 155.61 | 0.3666 | -1047.2 | -584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
