SDO HMI 2011-10-19 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.47 | 413.14 | 51.61 | 311.29 | 27.60 | 55.13 | 45.83 | 302.28 | 0.7539 | -850.5 | -222.9 | |
|
previous
or next observation for the same group /

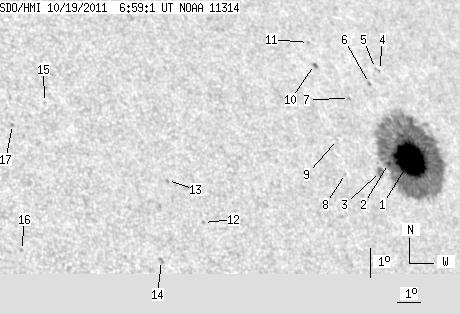

back to the solar disc SDO HMI 2011-10-19 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.24 | 393.08 | 49.22 | 297.29 | 27.56 | 55.42 | 46.12 | 302.09 | 0.7567 | -1166.9 | -234.4 | |
| 1.92 | -1.00 | 1.42 | -1.00 | 27.50 | 54.33 | 45.03 | 302.43 | 0.7458 | -926.5 | 999999 | |
| 0.00 | 4.71 | 0.00 | 3.45 | 27.27 | 53.83 | 44.53 | 302.33 | 0.7400 | -843.0 | -800.4 | |
| 0.00 | 0.87 | 0.00 | 0.67 | 30.49 | 55.60 | 46.30 | 305.68 | 0.7692 | 639.0 | 548.2 | |
| 0.00 | 0.61 | 0.00 | 0.47 | 30.57 | 55.44 | 46.14 | 305.83 | 0.7681 | 623.0 | 575.9 | |
| 0.00 | 0.70 | 0.00 | 0.53 | 30.11 | 54.86 | 45.56 | 305.49 | 0.7610 | 539.0 | 453.1 | |
| 0.00 | 1.22 | 0.00 | 0.91 | 29.69 | 53.64 | 44.34 | 305.47 | 0.7479 | 422.0 | 354.3 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 27.31 | 52.21 | 42.92 | 303.03 | 0.7240 | -661.0 | -649.8 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 28.41 | 52.39 | 43.09 | 304.38 | 0.7304 | -580.0 | -522.5 | |
| 1.31 | 2.18 | 0.97 | 1.61 | 30.89 | 52.63 | 43.34 | 307.40 | 0.7437 | -628.5 | -646.0 | |
| 0.00 | 1.13 | 0.00 | 0.84 | 31.62 | 52.77 | 43.47 | 308.25 | 0.7483 | -657.0 | -537.8 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 26.11 | 45.53 | 36.24 | 304.71 | 0.6480 | 577.0 | 484.5 | |
| 0.00 | 1.22 | 0.00 | 0.79 | 27.52 | 44.56 | 35.26 | 307.27 | 0.6457 | 726.0 | 653.4 | |
| 0.00 | 2.01 | 0.00 | 1.26 | 25.00 | 43.45 | 34.16 | 304.36 | 0.6186 | 669.0 | 639.3 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 30.29 | 40.54 | 31.24 | 313.86 | 0.6233 | 589.0 | 455.1 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 25.58 | 38.18 | 28.89 | 309.01 | 0.5630 | 758.0 | 614.2 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 29.63 | 39.03 | 29.73 | 314.17 | 0.6033 | 758.0 | 621.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
