SDO HMI 2011-10-19 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.20 | 266.25 | 44.02 | 184.03 | -12.32 | 49.32 | 40.57 | 245.79 | 0.6981 | -204.6 | -133.9 | |
|
previous
or next observation for the same group /

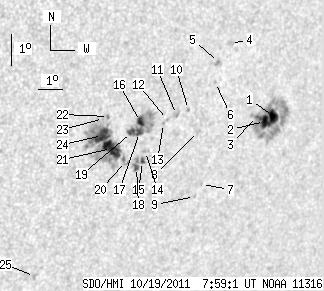

back to the solar disc SDO HMI 2011-10-19 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.72 | 91.74 | 6.40 | 67.27 | -12.11 | 53.18 | 44.43 | 248.00 | 0.7405 | 723.5 | 194.0 | |
| 8.90 | -1.00 | 6.50 | -1.00 | -12.24 | 52.82 | 44.07 | 247.68 | 0.7371 | 948.6 | 999999 | |
| 1.31 | -1.00 | 0.95 | -1.00 | -12.06 | 52.44 | 43.69 | 247.74 | 0.7322 | 764.7 | 999999 | |
| 0.00 | 3.66 | 0.00 | 2.55 | -9.69 | 50.93 | 42.18 | 250.20 | 0.7058 | 284.0 | 266.0 | |
| 0.00 | 3.23 | 0.00 | 2.24 | -10.25 | 50.53 | 41.78 | 249.26 | 0.7034 | 805.0 | 660.6 | |
| 0.00 | 1.22 | 0.00 | 0.85 | -10.87 | 50.51 | 41.76 | 248.42 | 0.7057 | 617.0 | 443.2 | |
| 0.00 | 1.40 | 0.00 | 0.99 | -14.06 | 50.57 | 41.82 | 244.25 | 0.7204 | 715.0 | 588.8 | |
| 0.00 | 1.57 | 0.00 | 1.10 | -12.37 | 50.09 | 41.34 | 246.22 | 0.7074 | 581.0 | 443.9 | |
| 0.00 | 1.22 | 0.00 | 0.87 | -14.43 | 50.36 | 41.61 | 243.68 | 0.7199 | 672.0 | 590.1 | |
| 0.00 | 1.40 | 0.00 | 0.96 | -11.64 | 49.55 | 40.80 | 246.91 | 0.6980 | 684.0 | 559.4 | |
| 0.00 | 2.79 | 0.00 | 1.91 | -11.77 | 49.09 | 40.34 | 246.51 | 0.6933 | 448.0 | 447.2 | |
| 0.00 | 1.40 | 0.00 | 0.95 | -11.90 | 48.75 | 40.00 | 246.16 | 0.6900 | -533.0 | -366.6 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -12.02 | 48.61 | 39.86 | 245.93 | 0.6889 | -510.0 | -369.1 | |
| 0.00 | 2.53 | 0.00 | 1.72 | -12.86 | 48.05 | 39.30 | 244.49 | 0.6865 | -487.0 | -263.9 | |
| 1.66 | 11.42 | 1.13 | 7.75 | -13.17 | 47.99 | 39.24 | 244.04 | 0.6874 | -454.2 | -529.3 | |
| 4.62 | 37.41 | 3.10 | 25.19 | -11.90 | 47.68 | 38.93 | 245.59 | 0.6775 | -887.3 | -254.0 | |
| 4.45 | -16.00 | 2.99 | -16.00 | -12.24 | 47.70 | 38.95 | 245.13 | 0.6794 | -551.1 | 999999 | |
| 2.79 | -15.00 | 1.89 | -15.00 | -13.34 | 47.79 | 39.03 | 243.69 | 0.6859 | -519.9 | 999999 | |
| 4.19 | -16.00 | 2.80 | -16.00 | -12.22 | 47.38 | 38.63 | 244.98 | 0.6757 | -848.5 | 999999 | |
| 0.00 | 4.53 | 0.00 | 3.05 | -13.13 | 47.31 | 38.56 | 243.71 | 0.6794 | -472.0 | -488.4 | |
| 15.35 | 94.45 | 10.21 | 62.46 | -12.68 | 46.68 | 37.93 | 243.96 | 0.6698 | -830.0 | -534.2 | |
| 0.00 | 1.48 | 0.00 | 0.98 | -11.66 | 46.39 | 37.64 | 245.20 | 0.6612 | -808.0 | -694.4 | |
| 0.00 | 1.66 | 0.00 | 1.09 | -11.71 | 46.21 | 37.46 | 245.02 | 0.6593 | -418.0 | -405.3 | |
| 12.21 | -21.00 | 8.05 | -21.00 | -12.25 | 46.26 | 37.51 | 244.30 | 0.6626 | -954.5 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.62 | -16.60 | 44.47 | 35.72 | 237.25 | 0.6676 | -746.0 | -488.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
