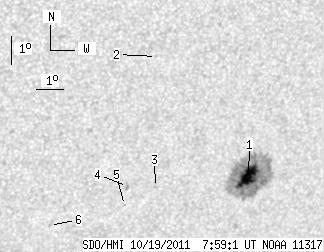

SDO HMI 2011-10-19 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.55 | 143.90 | 15.82 | 96.52 | -26.92 | 36.86 | 28.11 | 218.55 | 0.6764 | 996.3 | 319.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.55 | 137.53 | 15.82 | 92.42 | -26.92 | 37.06 | 28.31 | 218.76 | 0.6779 | 1084.2 | 306.5 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -22.58 | 32.70 | 23.95 | 218.93 | 0.5987 | 825.0 | 595.6 | |
| 0.00 | 1.40 | 0.00 | 0.91 | -27.15 | 33.63 | 24.88 | 215.11 | 0.6532 | 677.0 | 521.6 | |
| 0.00 | 2.18 | 0.00 | 1.41 | -27.07 | 32.58 | 23.83 | 214.07 | 0.6444 | 763.0 | 653.1 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -27.75 | 32.62 | 23.87 | 213.47 | 0.6518 | 613.0 | 476.7 | |
| 0.00 | 1.31 | 0.00 | 0.84 | -28.36 | 30.01 | 21.26 | 210.02 | 0.6401 | 713.0 | 498.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
